Idemia MorphoWave Compact - Output Relay

45
MorphoWave Compact - 2018_2000035853
4.3 > Output Relay

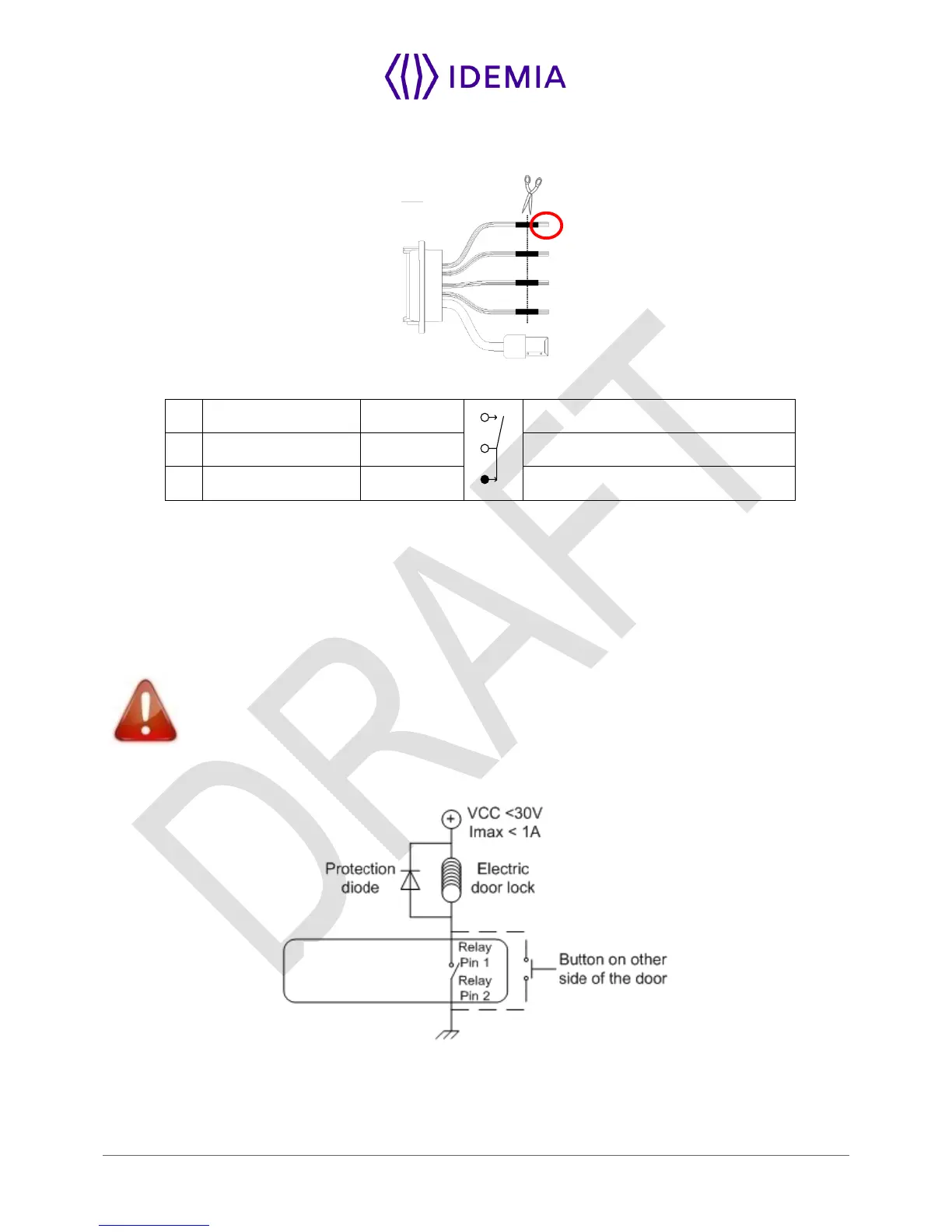

Figure 11: Output relay wiring
14
Yellow / White
RLY_NO
Contact relay (normally open)
12
Grey / White
RLY_COM
Contact relay common
13
Orange / White
RLY_NC
Contact relay (normally closed)
Nominal characteristics of relay
Load characteristics:
 1 A max @ 30 VDC (according to the safety extra low voltage requirements independently of the power
supply),
 Resistive load or inductive load; see warning information hereafter for inductive load,
 The internal relay is designed for at least 100 000 cycles (resistive load).
Inductive load management requires a parallel diode for a better contact lifetime.
Example of connection for electrical door locks
MorphoWave
Compact terminal
Figure 12: Example of electric latch connection
