Idemia MorphoWave Compact - Tamper Switch

46
MorphoWave Compact - 2018_2000035853
4.4 > Tamper Switch

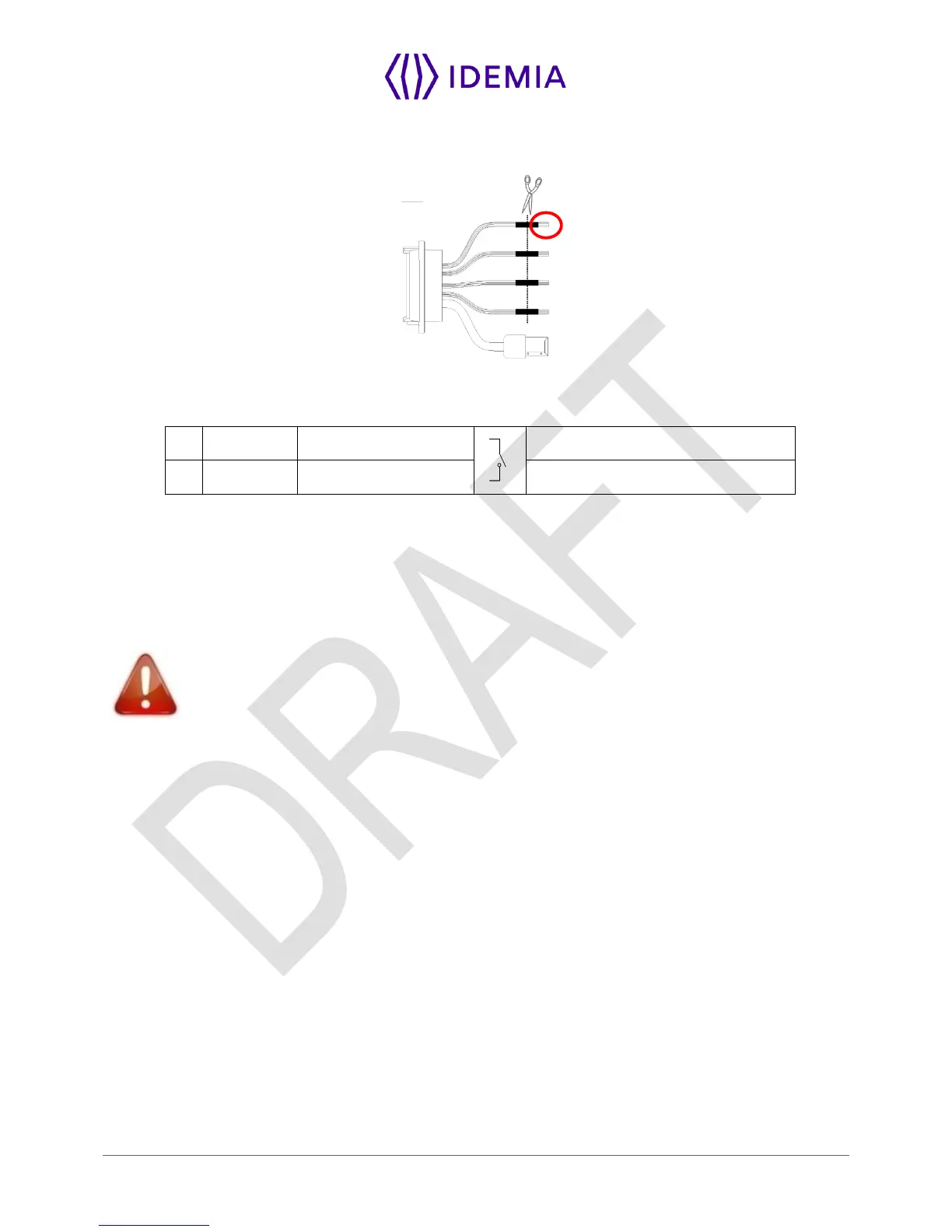

Figure 13: Tamper switch wiring
5
Light Blue
SWITCH_PIN1
Tamper switch contact
6
Pink
SWITCH_PIN2
Strip on tamper switch
Operating principle for the switch
 Product installed on the wall plate: switch enabled (contact closed).
 Product opened (rear connectors accessible): switch disabled (contact open).
Nominal characteristics of switch block
100 mA at 30 VDC max (Resistive load) according to the safety extra low voltage standard.
This MorphoWave Compact terminal is part of security system; it is customer’s responsibility
to connect the tamper switch (contact) to physical access controller, in order to prevent the
access to the connector blocks.
