Idemia MorphoWave Compact - Wiring Overview

42
MorphoWave Compact - 2018_2000035853
4.1 > Wiring overview
Before proceeding, make sure that the person in charge of installation and connections is
properly connected to earth, in order to prevent Electrostatic Discharges (ESD).
Power supply ground shall not be used for peripheral ground. All other grounds can be
used indifferently.
Note that all connections of the MorphoWave Compact terminal described hereafter are of SELV (Safety
Electrical Low Voltage) type.

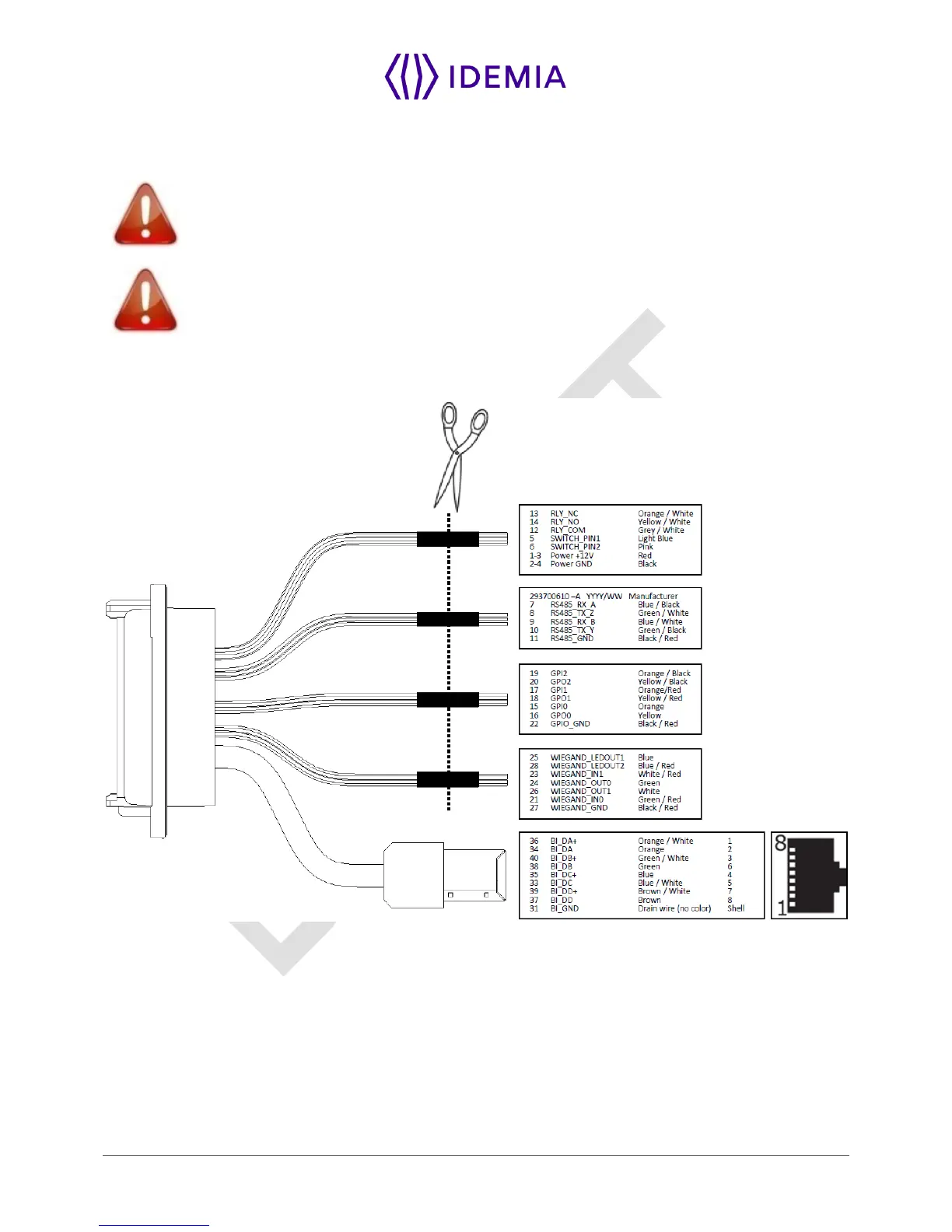

Figure 9: Cabling layout
