4.10 > Internal USB connection

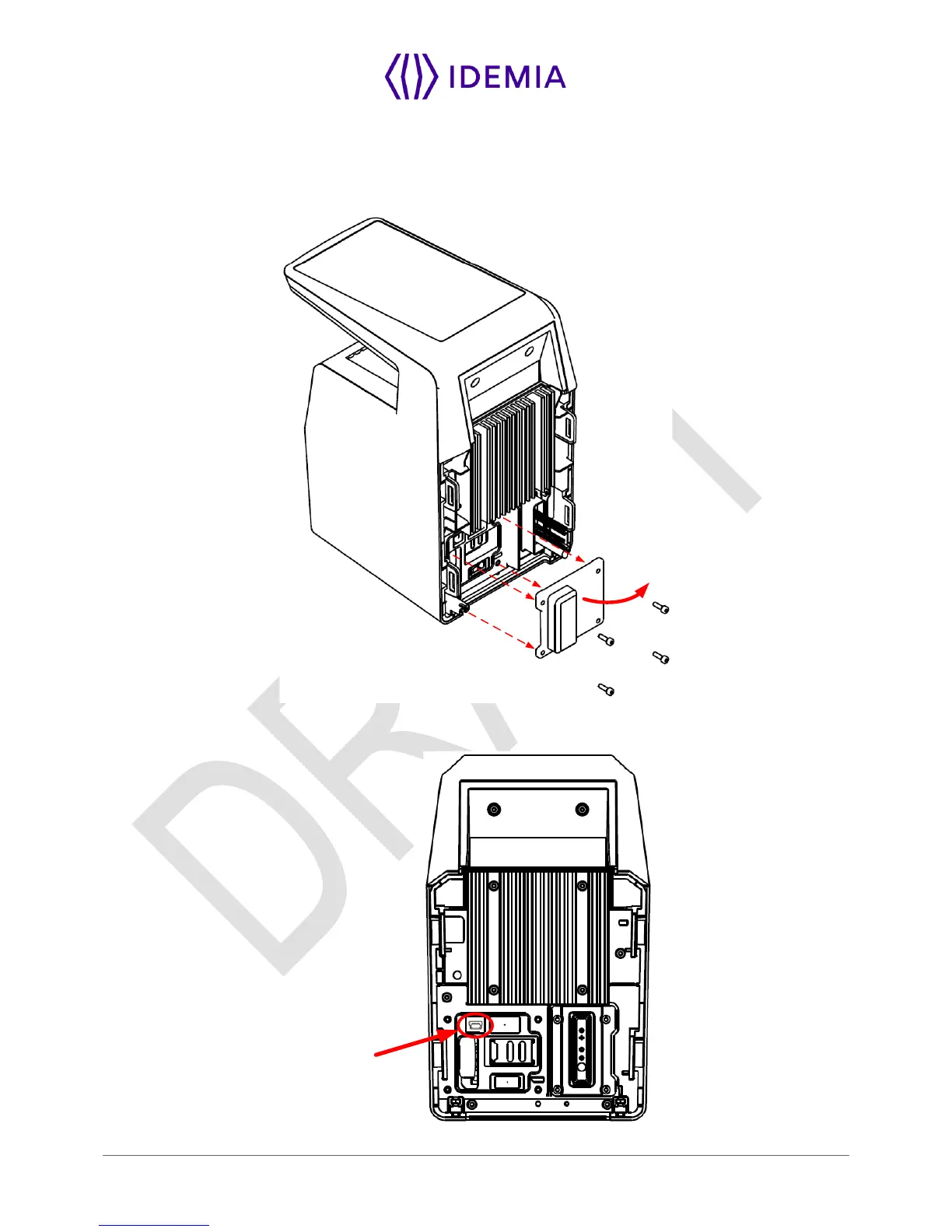

Remove the 4 screws of the cover, as shown on the following drawing. Then remove the cover.
Then you can see a Mini USB plug.
Mini USB
type B
connector
Figure 23: Internal USB connection
