Then connect the cables:
Before cabling the product, remove the connector by cutting cables in the middle of heat shrink tube.
Please refer to section 4 / for explanations of how cables/wires should be connected, according to wire
color code.
IP65
!

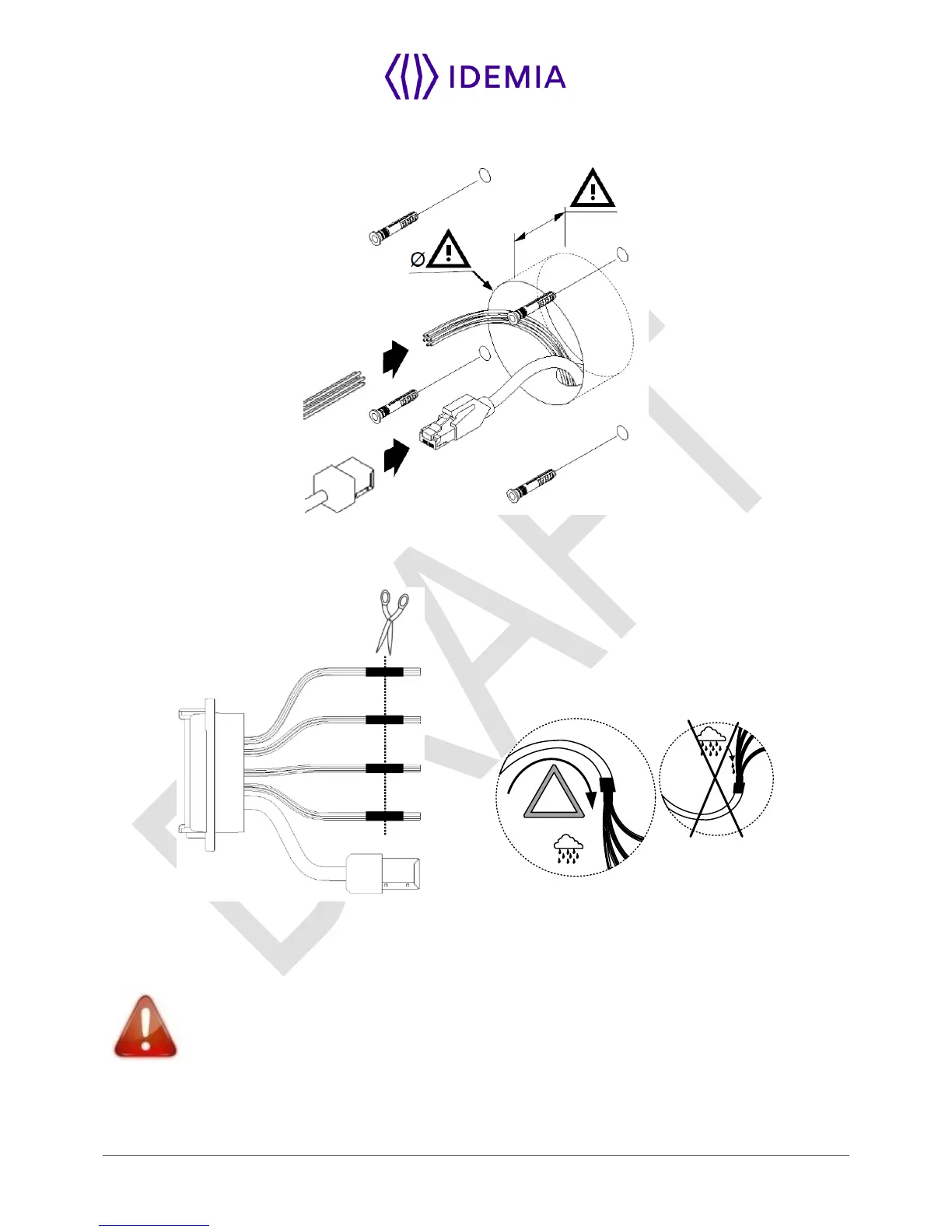

Figure 8: Cable preparation : cable position for water tightness
Cable for wiring shall be AWG 20 to 24, length shall be adapted to the size of the hole in the wall, to
terminal connections, and to the distance between the electric source and the terminal itself.
To ensure water tightness, be sure to bend the cable downward.
