Basic Settings – Other
143

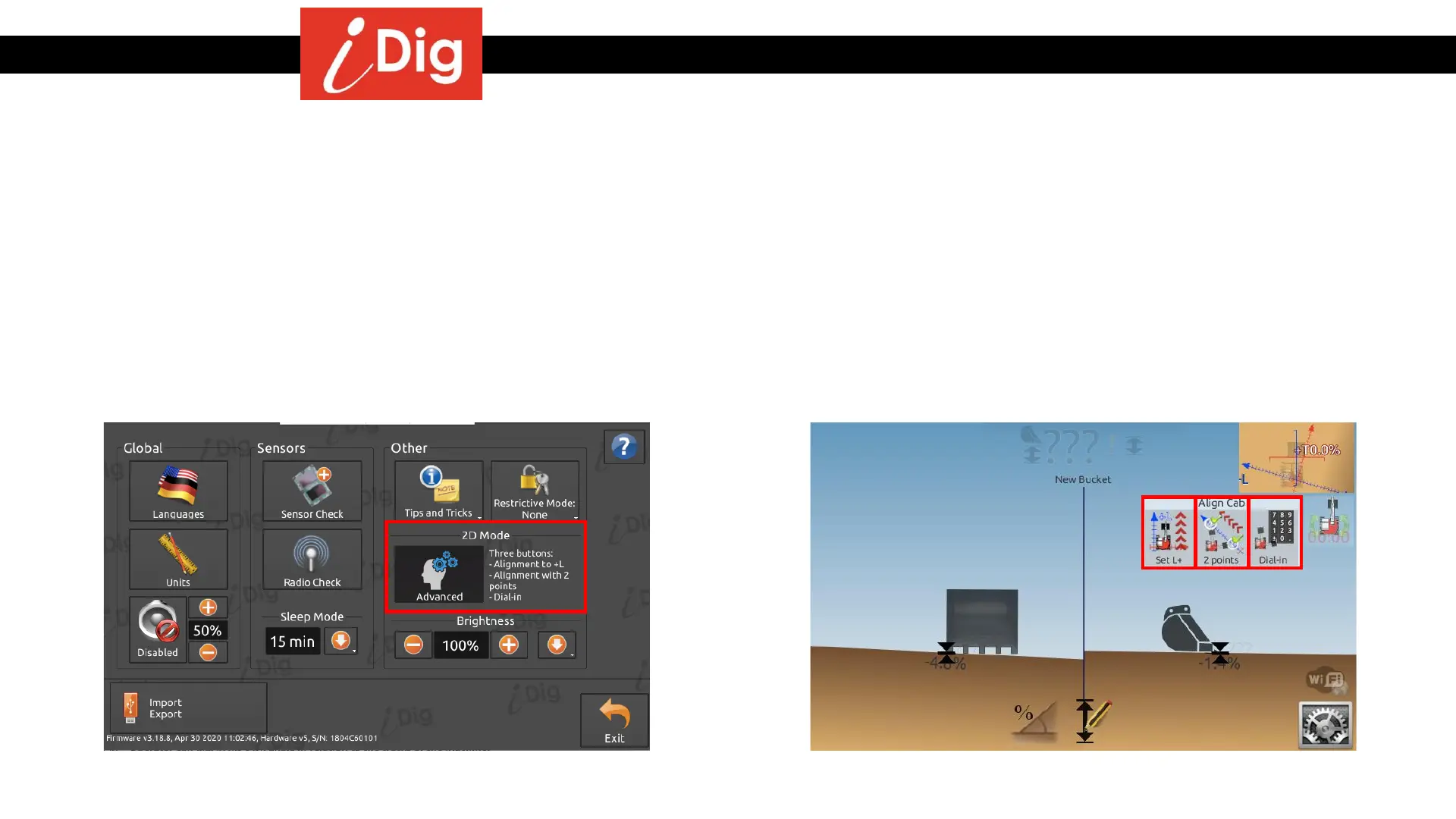

2D Mode Advanced
• The 2D Mode function allows the operator to customize the axes in which he can dig in either
single or dual slope. The default setting is for the Advanced Mode to be OFF. By using the
Advanced mode, the operator can choose between three different alignment methods:
• Alignment to +L – Same as the Basic Mode procedures.
• Align with 2 points – Operator can pick two points to create his own “L” axis.
• Dial-in – Operator can dial in his own angle in relation to the tracks of the machine.
