Installation Procedures – Main Boom & Dipper Stick Calibration
• This procedure requires you to fully extend the main boom and the dipper stick out in front of the machine so make sure
your work area has enough space to do so safely.

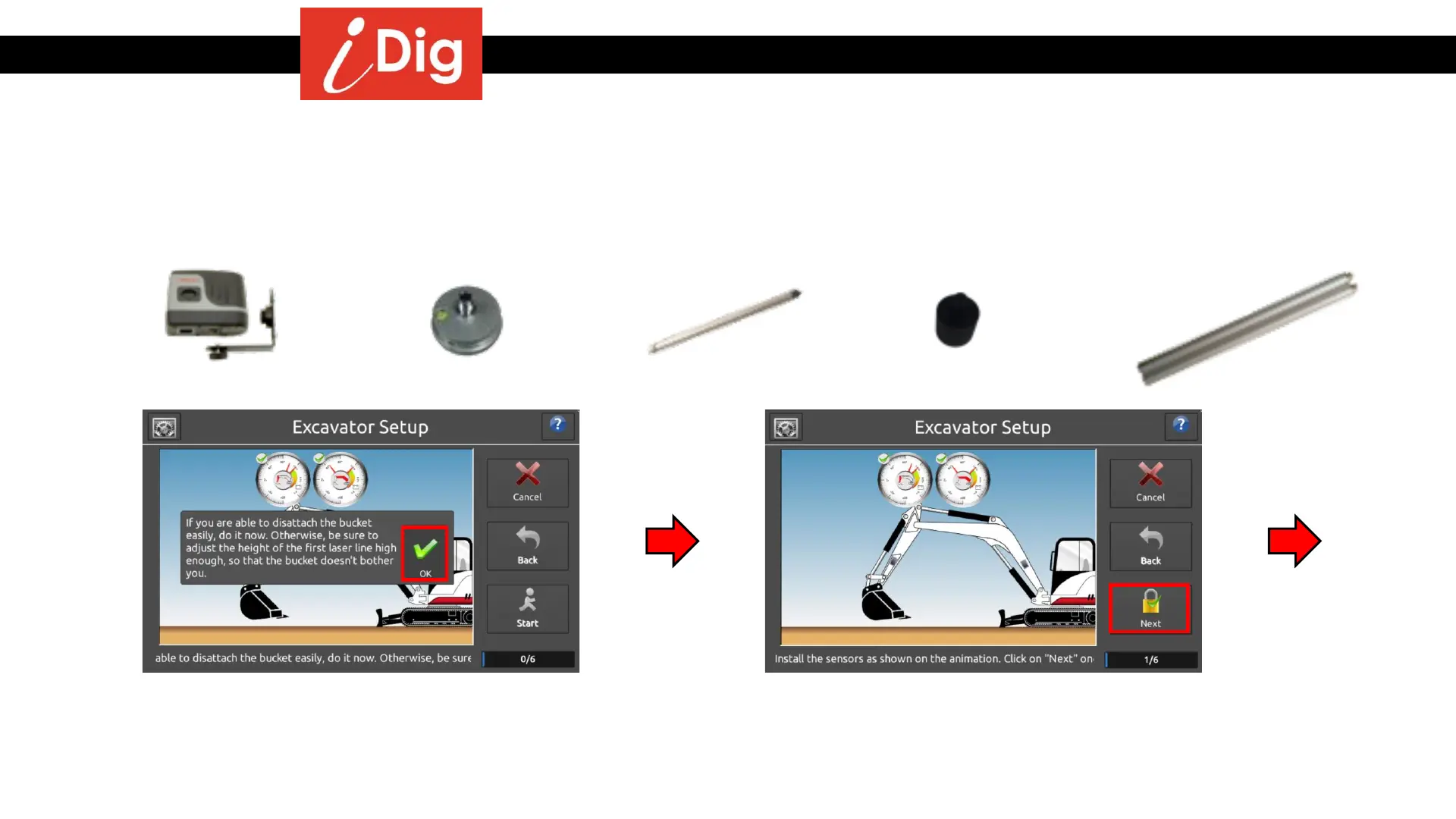

• You will also need a tripod, preferably an elevating tripod. From your iDig kit you will need: Laser Pointer (XB525), Tripod
Mount (XD477), Magnetic Pivot Target (XD470, Laser Pointer Adaptor (XD478) and the Extension Poles (XD471).
• It is recommended that you remove the
bucket to allow ease of calibration. Once
removed realign the cab parallel to the
tracks and press “OK”.
• If you’ve not already done so, attach the Sensors to the
appropriate elements.
• If the sensor bubble(s) are red the system is missing the according
sensor(s). You need to pair them with the system. Follow the
instructions detailed later in this manual. Press “Next”.
16
