Installation Procedures – Dozer Calibration
72

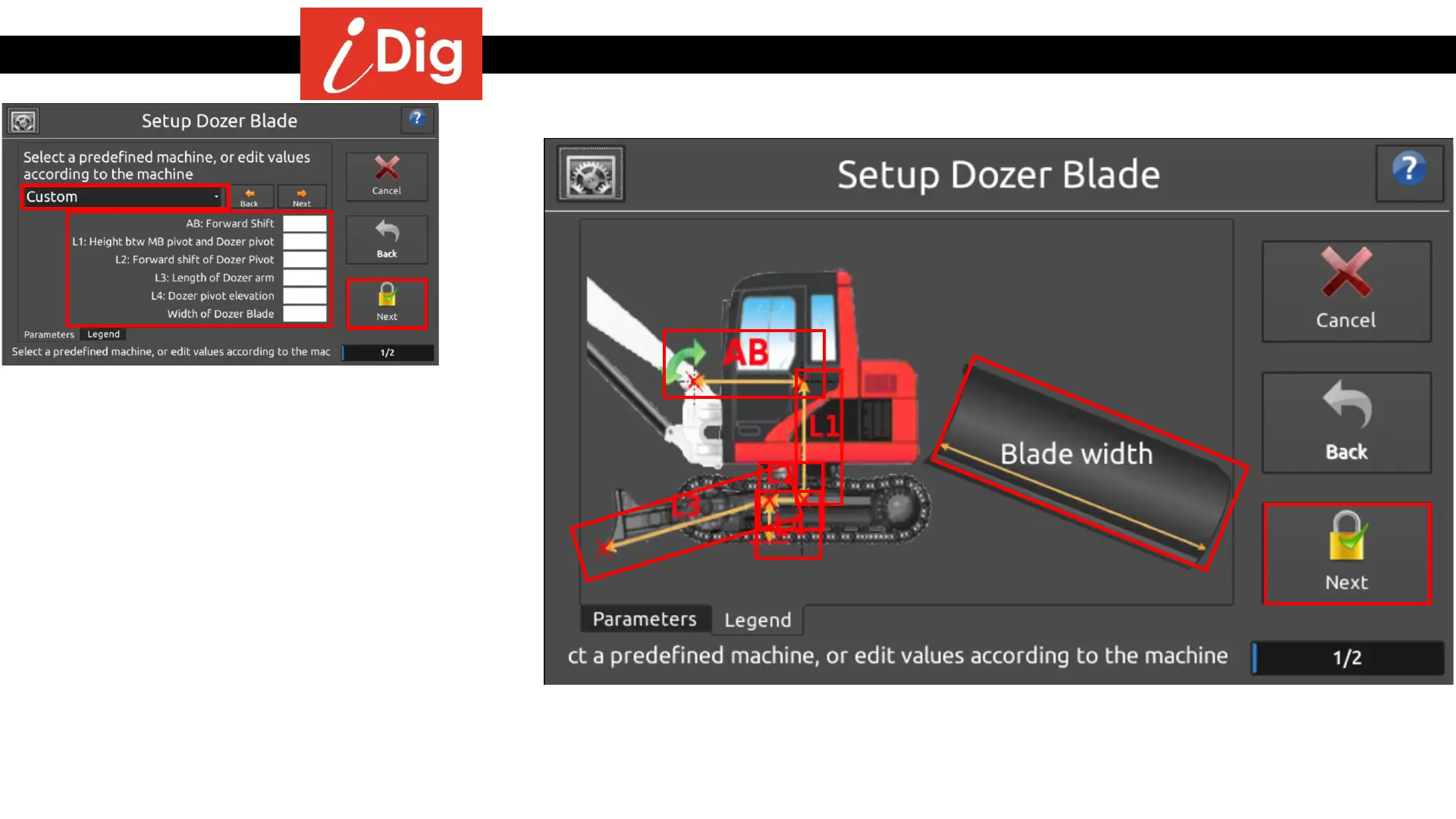

• Select your machine from the drop down menu. If your
machine is not listed then you will need to make the
following measurements:
• AB - Forward Shift distance between main
boom/chassis pivot point and center of rotation
of the machine. Same measurement as the AB
for the 2D calibration.
• L1 – Height between main boom pivot and dozer
pivot.
• L2 – Distance between the blade pivot and the
center of rotation of the machine.
• L3 – Length of the blade front tip and the blade
pivot.
• L4 – Distance of the blade pivot and the bottom
of the tracks (ground).
• Width of dozer blade.
• Click on “Next”.
