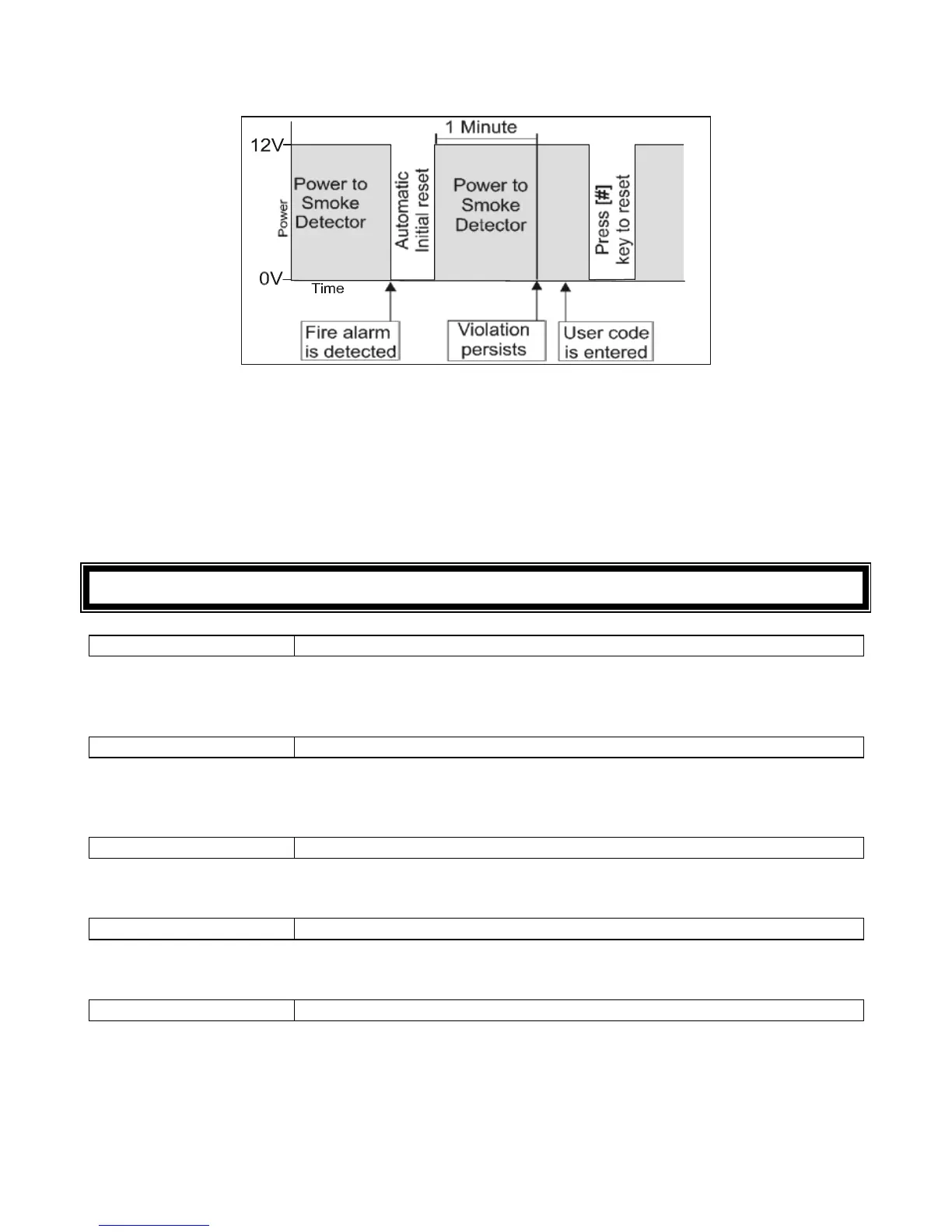

Figure 6 : Fire Detect Output Sequence
NOTE:
Since multiple conditions may be programmed to a single output, it is essential to ensure that no
unwanted conditions are assigned to an output.
Dual Reporting Output
If dual reporting is enabled this output will be set when the panel dials the second phone number, and
cleared when it hangs up at the end of transmission. This output follows the hook relay. It may be used to
trigger switching from the telephone line to a radio transmitter.
10. System Clock Options
LOCATION 98 System Time
Enter the system time. The format is “hhmm” and is based on a 24-hour clock. (All 4 digits must be
entered.)
LOCATION 99 System Day of Month
Enter a two-digit value of the current day of the month.
Valid range 01 to 31.
LOCATION 100 System Month
Enter the month as a value from 01 to 12.
LOCATION 101 System Year
Enter the current year as a four-digit value e.g. 2007.
LOCATION 102
System Day of Week
Enter the current day of the week. Refer to table 9.
