6.5. Zones

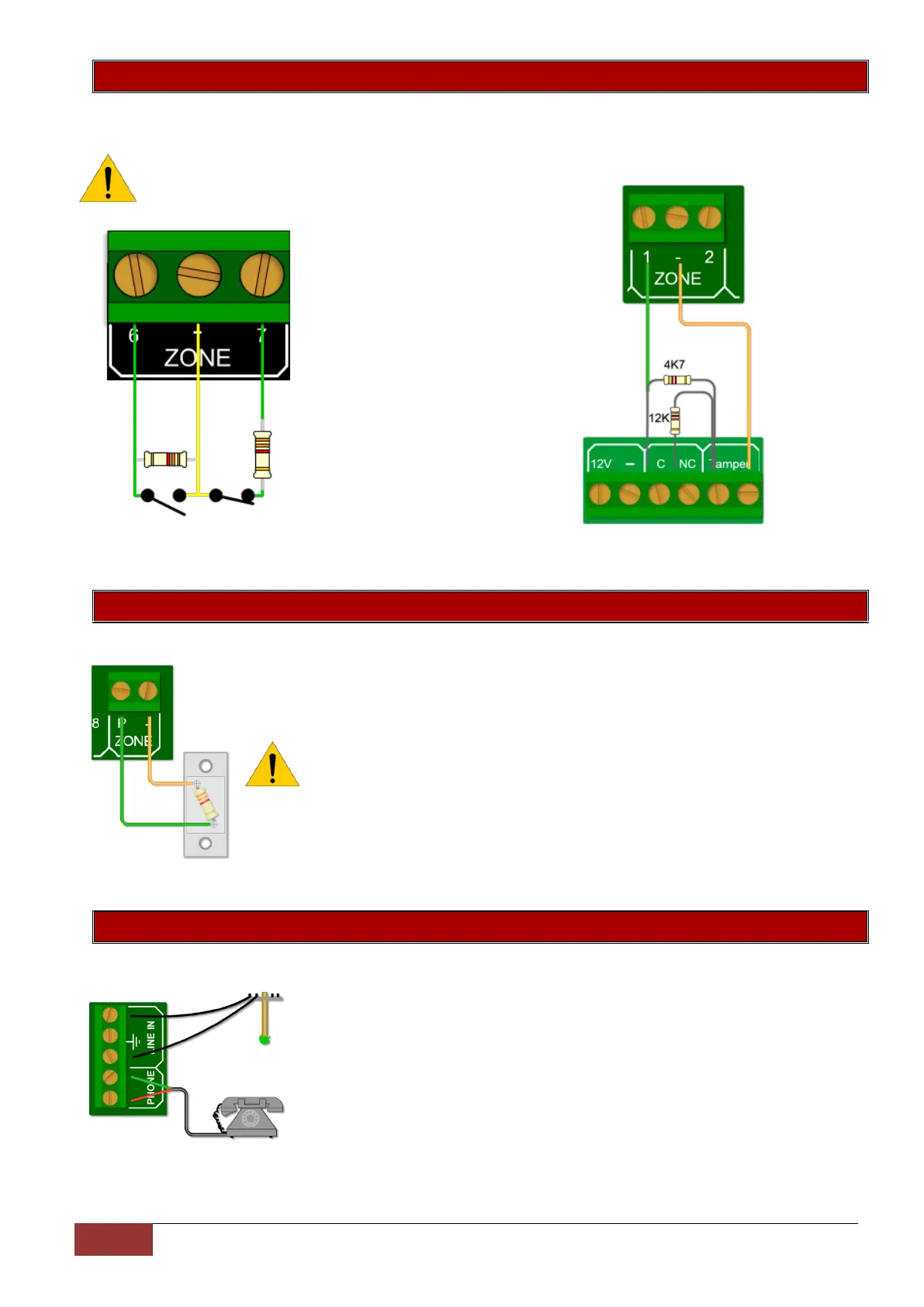

Devices that are connected to zones are divided into two categories, normally open (NO) or normally
closed (NC).Some devices have both and the installer can select either, depending on their preference.
NOTE: The end of line resistor must be 3K3Ω (Ω = ohm)
For a tamper installation a 12kΩ and a 4K7Ω
End of Line 3k3 Ohm resistor 12K & a 4k7 Ohm resistor
6.6. Panic Zone
The dedicated panic zone is end-of-line supervised and for safety reasons, if this
resistor is not detected the system will show 'Not Ready' and will not arm.
NOTE: The dedicated panic zone does not display a zone number if open
or when in alarm condition.
6.7. Telephone Connections
The line coming into the building must go directly to the alarm panel and
then onto any telephones. This will stop any attempt to disrupt
communication by taking the phone off the hook. Not available on the X8s.
To Next Page
