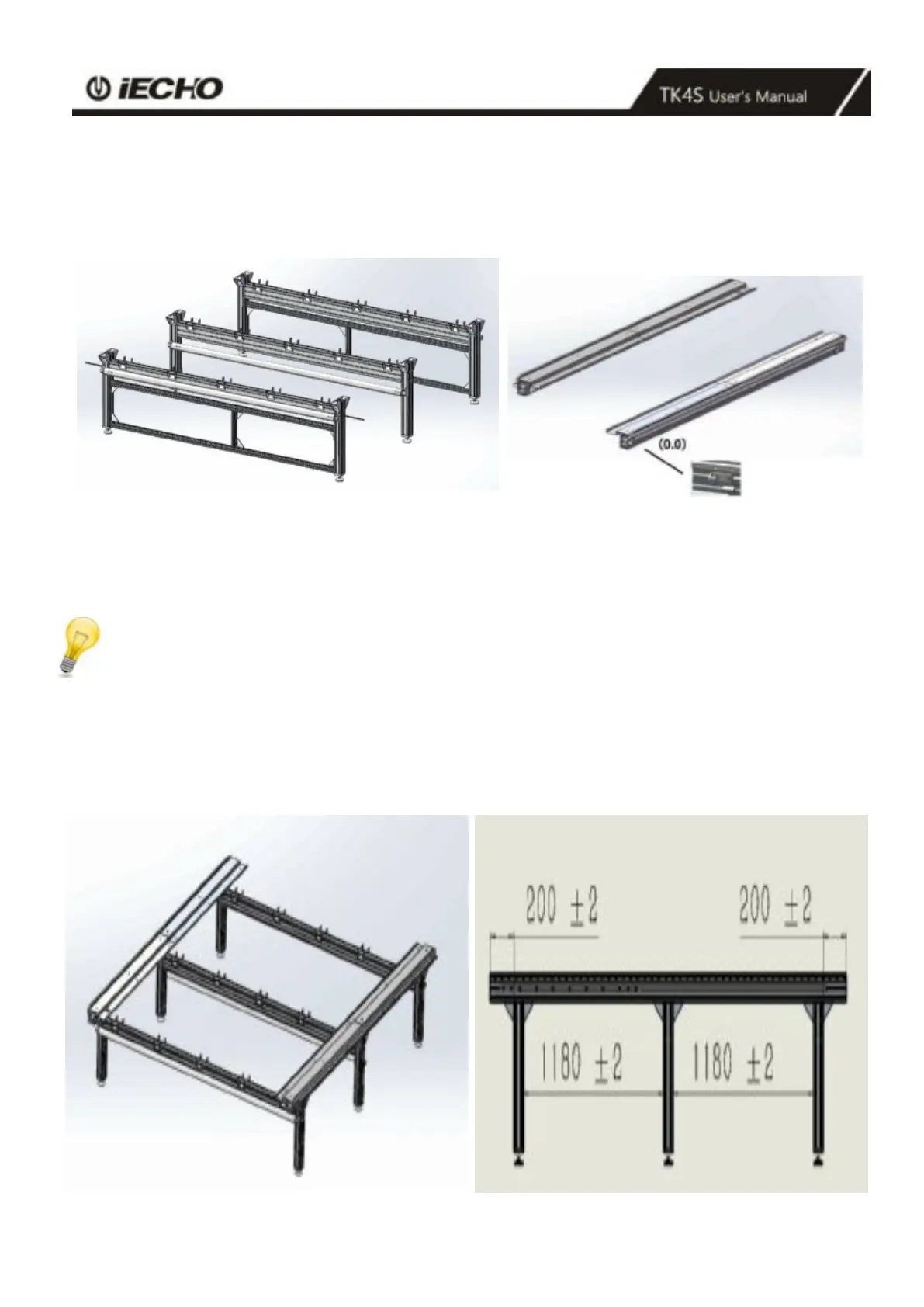

3.2 Setting Up the Base Frame Structure
3.2.1 Framework
The components consists of the left beam, right beam and under frame.
1.
Front foot (including pause cable)
2. Middle foot
3. Rear foot
Left / Right
Note:
Assemble the left and right beam under frame as below, fasten tightly T-bolts(M8x25mm) with glue, set up the
framework, meet the following requirements:
1. Both side of the end surface distance：200±2mm，adjust the distance between each legs component：1180±2mm。
2. Make sure the diagonal dimensions are less than 2 mm.
