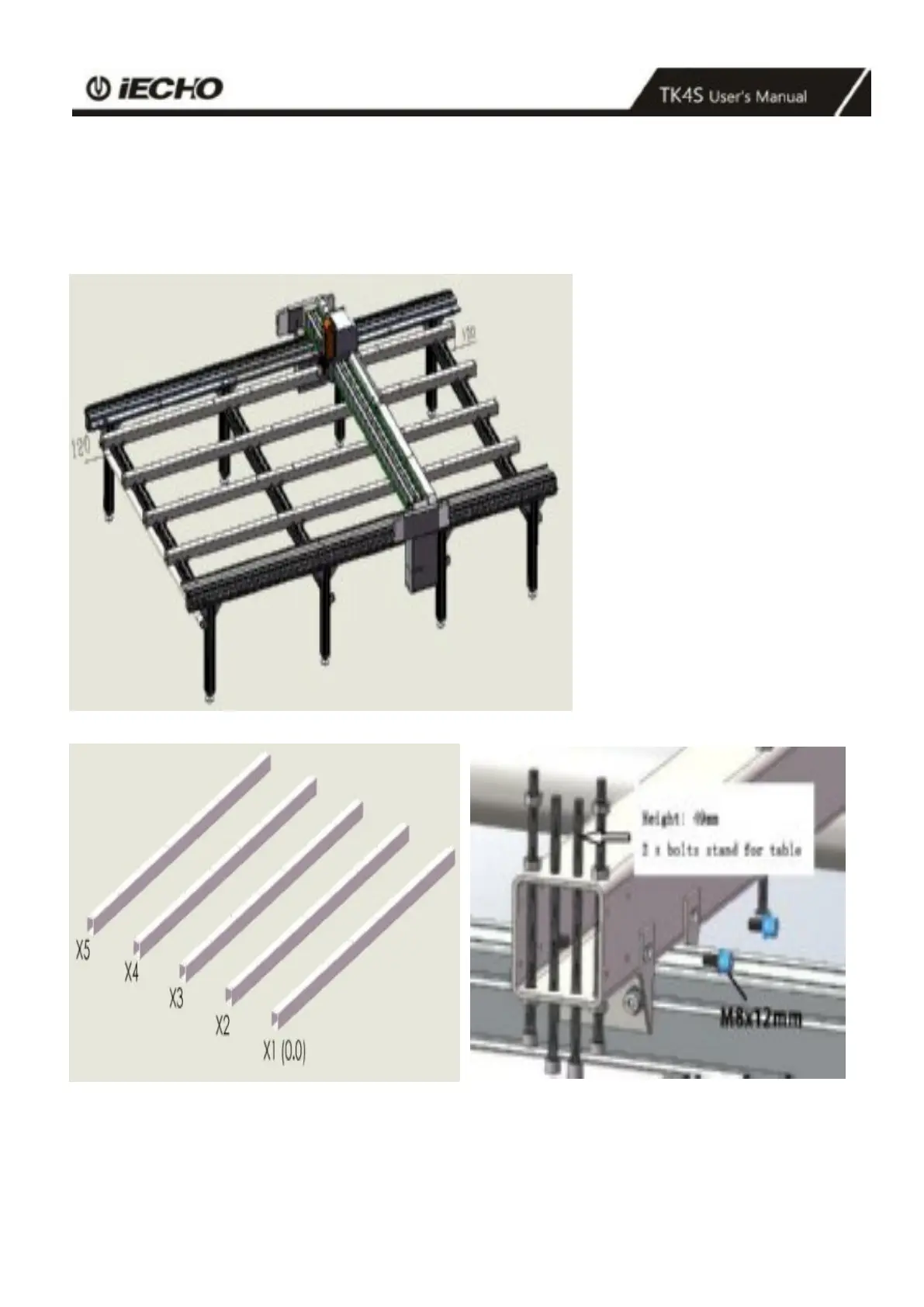

3.4 Installing the Vacuum Plates
Note:
The bracing tube and vacuum plates are labeled. The order must be followed! The label must
always be positioned at the front!
Attaching bracing tube X1 :
Place bracing tube X1 to X5
The two end of the square pipe extended
120mm long from the aluminum frame
Tighten the screws(M8x12mm)
and washer.
Aluminum tubes
Screws
