IECHO TK4S - 3.14 Assemble the Workstation.

38

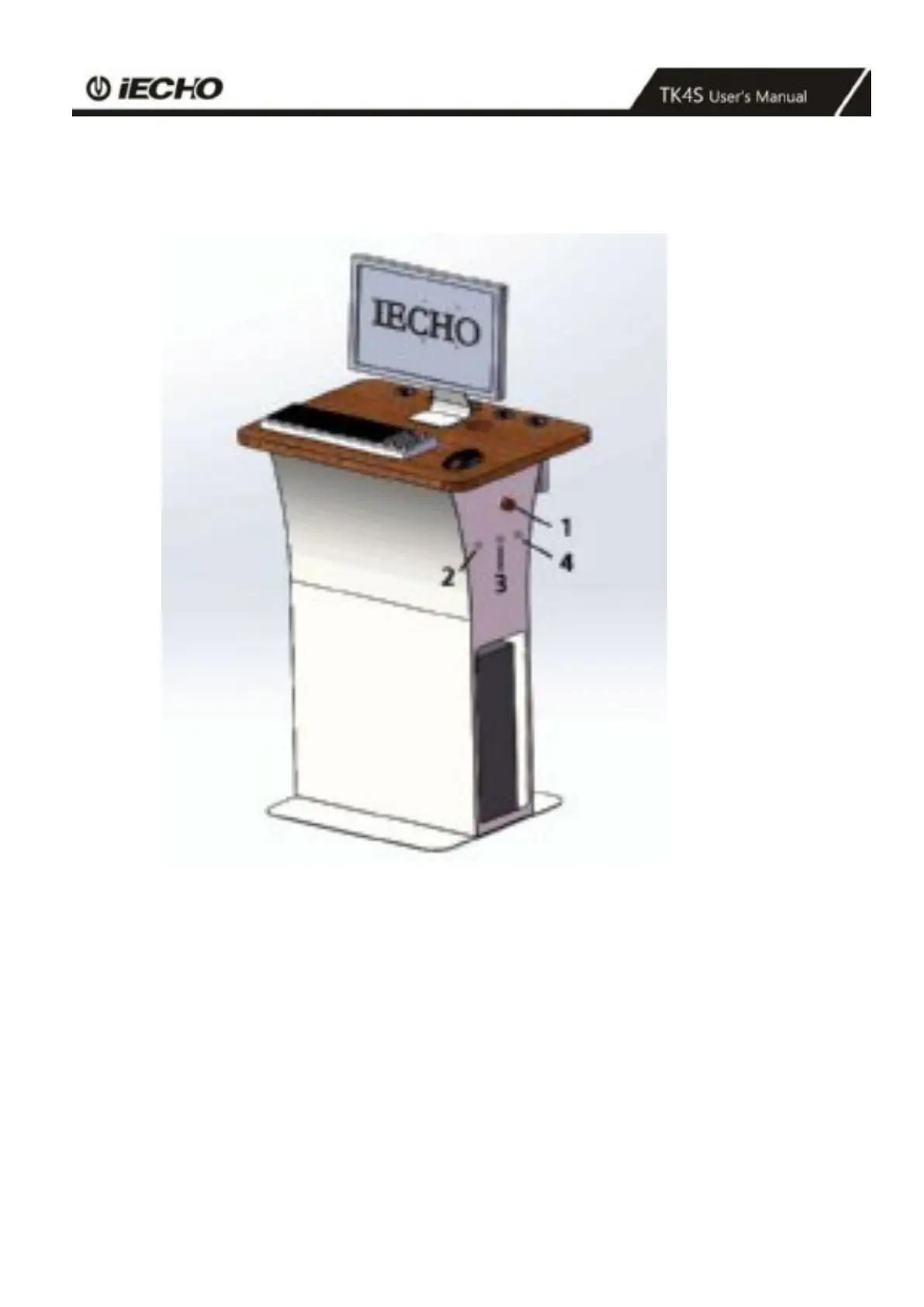

3.14 Assemble the Workstation
3.14.1 Connect the monitor, keyboard and mouse
A Install the monitor, keyboard and mouse cable as shown.
B Secure the cable with cable ties.
C Emergency stop cable to connect emergency switch CTRL of electric box.
1
Emergency Stop
3
Auto / Manual for Cleaner
2
START
4
STOP
