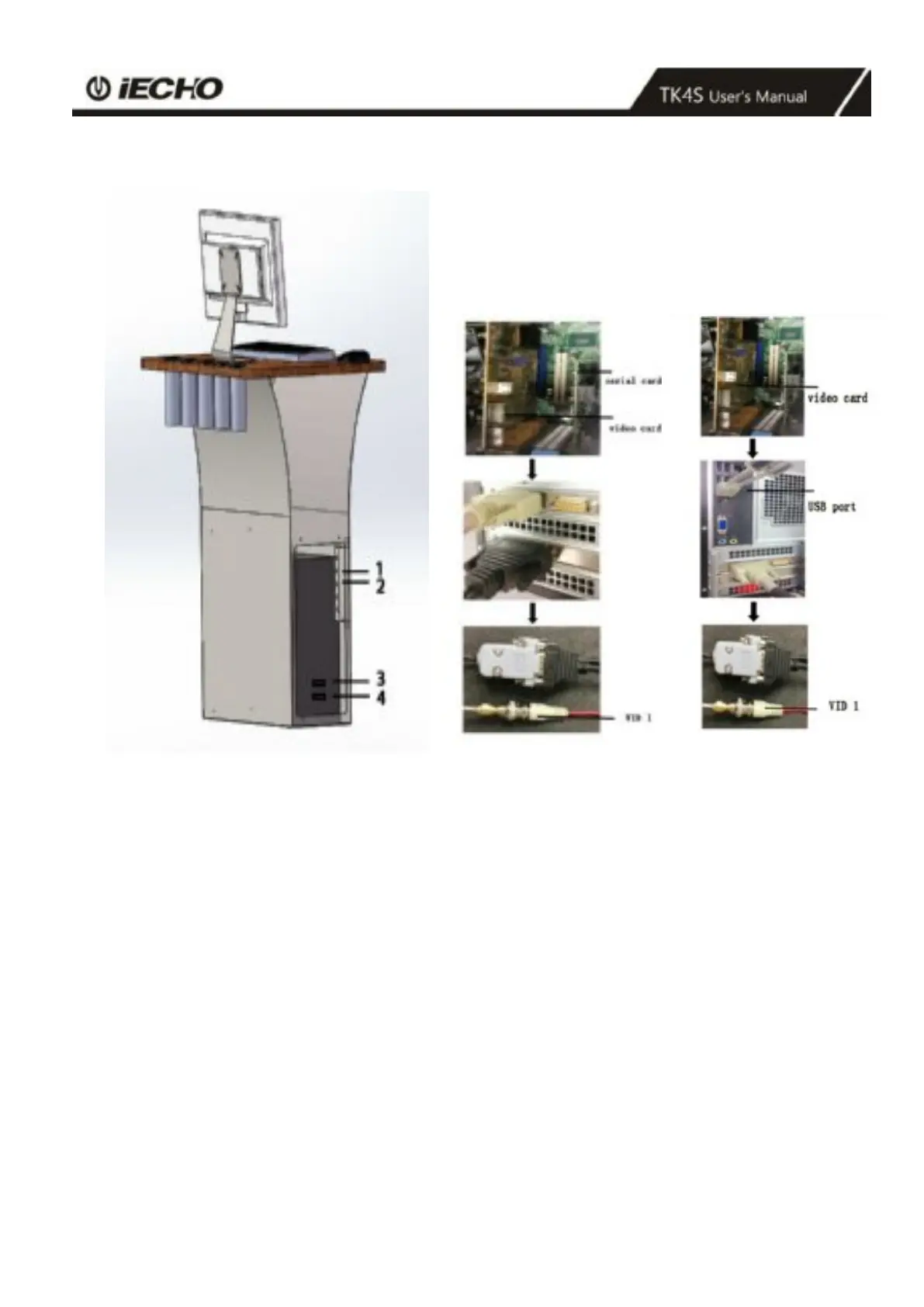

3.14.2 Connect the PC to the cutter
A Cleaner CTRL to connect the electric box
B Main Power to connect the electric box.
C PC Communication cable to connect the electric box.
D VID 1 to connect video card
1
Cleaner CTRL
3
Serial card / USB-890k
2
Main Power CTRL
4
Video Card
