IECHO TK4S - 3.8 Pneumatic Control.

28
3.8 Pneumatic Control

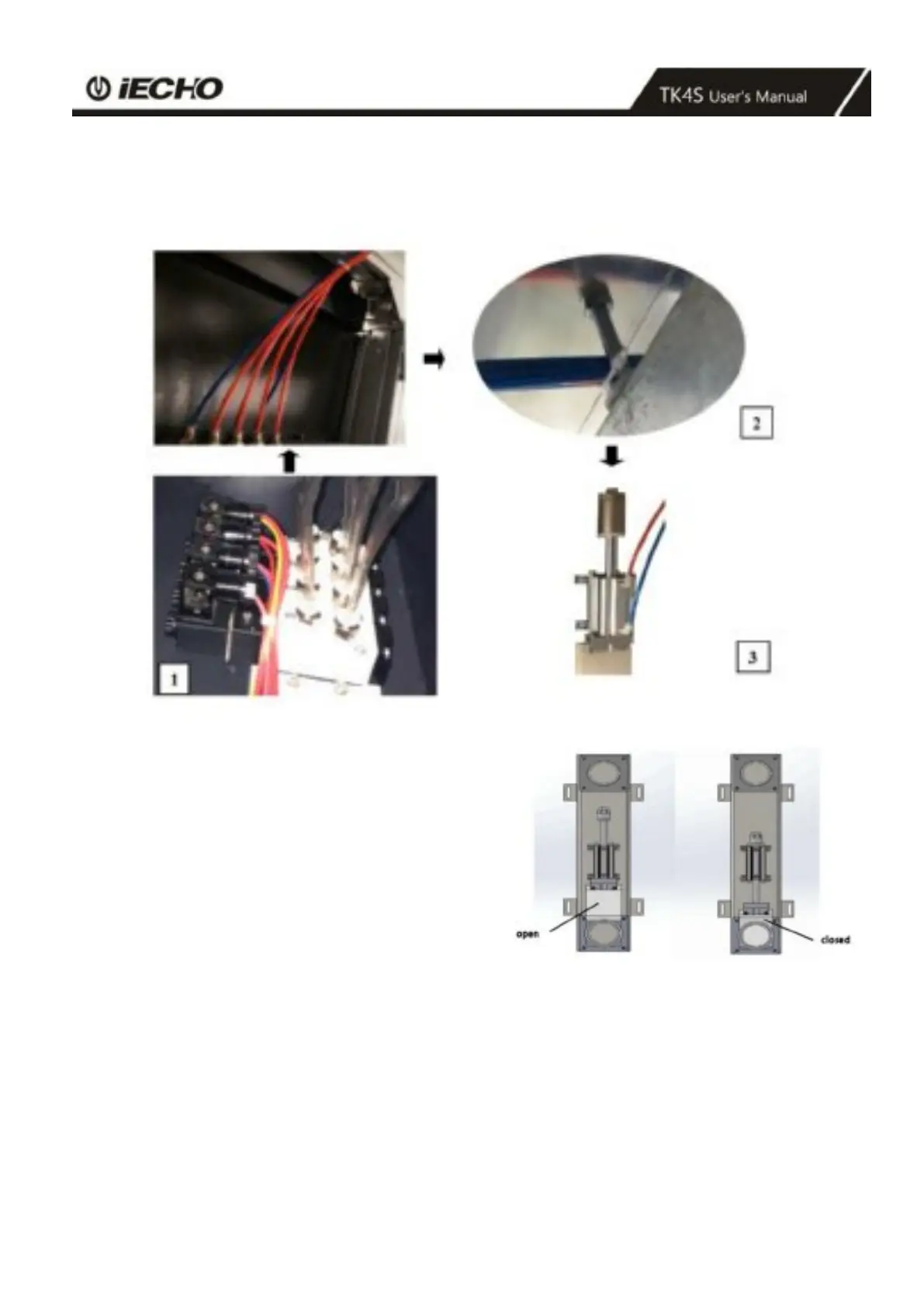

1. Connect the double-color pipe on the regional air control box to the valves.
A
Pull the pneumatic lines from the distributor to the air valves .
B Fasten the lines to the designated points using cable ties.
C Connect the pneumatic lines in order on the air valves. The first cable in each group is
numbered.
1
Pneumatic lines on
the distributor
3
Air Valve
2
Cable tie point
