3.11 Install the Conveyor Belt Guide Rollers Device.
Tip:
Observe the following differences between the front and rear of conveyor belt guide rollers
during installation.
•
The front guide roller are equipped with pulley of auxiliary motor.
•
The rear guide rollers are equipped with guide rings.

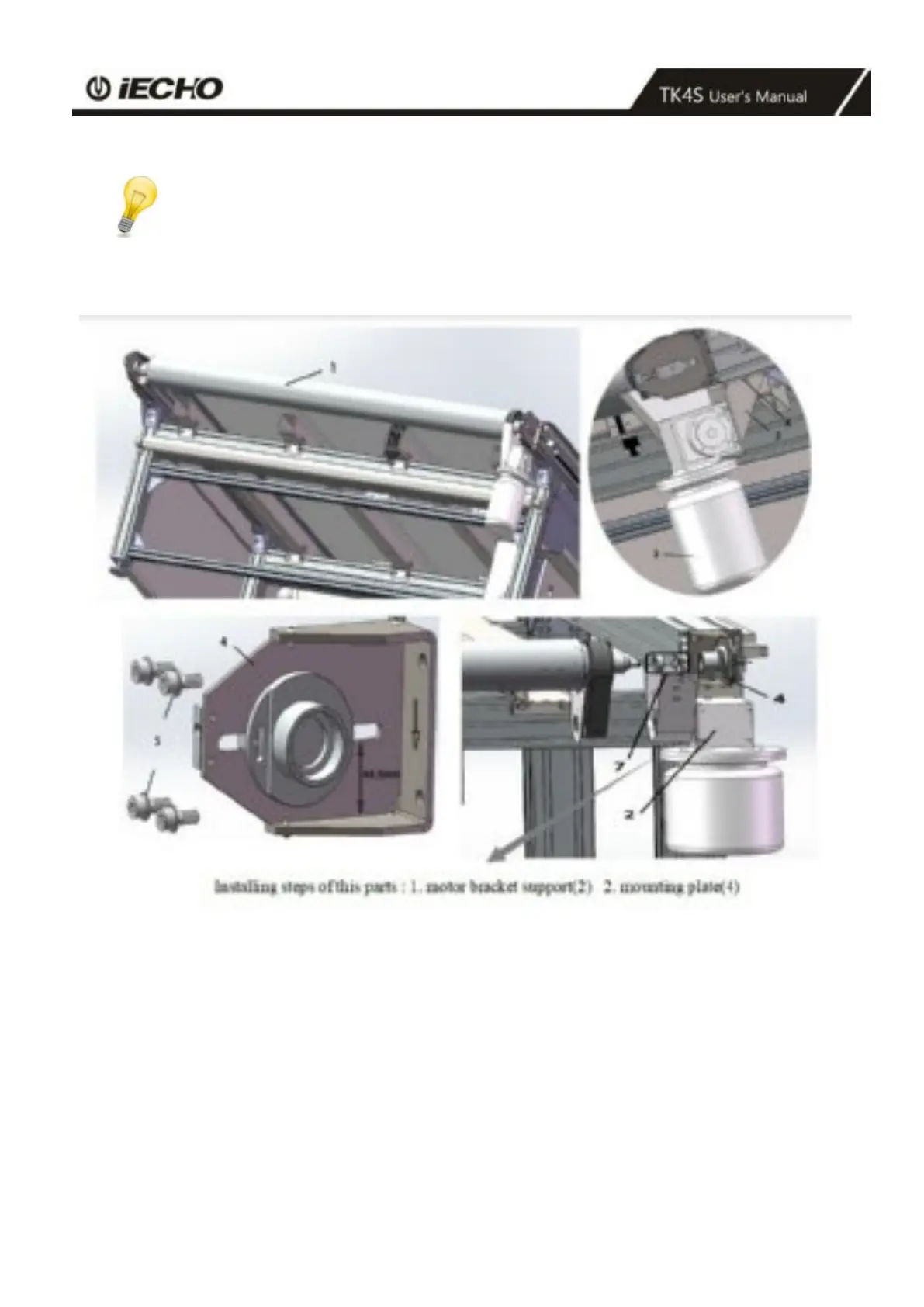

A Attach the slots on the conveyor bracket using the screws.
B Tighten the screws.
C Repeat the procedure on the other side.
Note: auxiliary motor cable to connect the frequency converter box.
1
Conveyor belt guide roller
5
4 x Screws（M8x16)
2
Motor bracket support
6
6 x Screws (M5x16)
3
auxiliary motor component
7
2 x washer
4
Mounting plate
