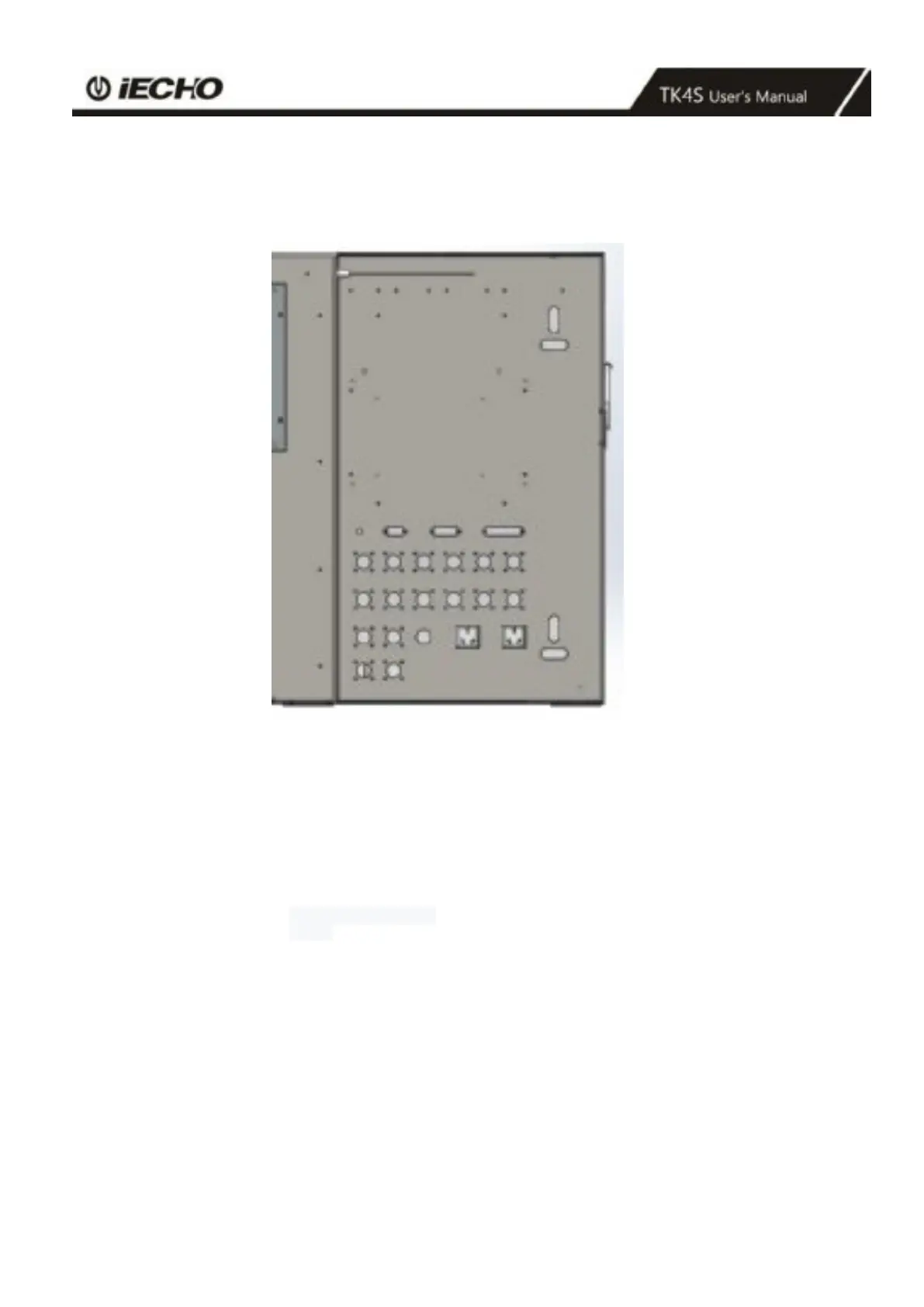

3.9 Connecting the Electric Box
Connecting the cables from electric box rear side to the machine parts .
1
TK4S21P-3
Cable for CCD Camera
10
TK4S29P
AK2
2
SCH
Handheld Panel
11
TK4S34P
Sheet feeder control
3
BKL19P
COMM Cable
12
TK4S36P-1
1.5KW RZ
4
TK4S35P
MILL tool control
13
TK4S39P
EMG control
5
TK4S40P
Primary and secondary
control
14
TK4S41P
PC table control
6
TK4S37P
Bits holder control
15
TK4S31P
AUX.motor control
7
TK4S30P
Changeover control
16
Main Air
Main air input of Φ8mm
8
TK4S38P-1
PAUSE
17
DY2
Cleaner Power Supply
9
TK4S28P
AK1
18
DY1
220V output
