3.16 Tension the Conveyor Belt

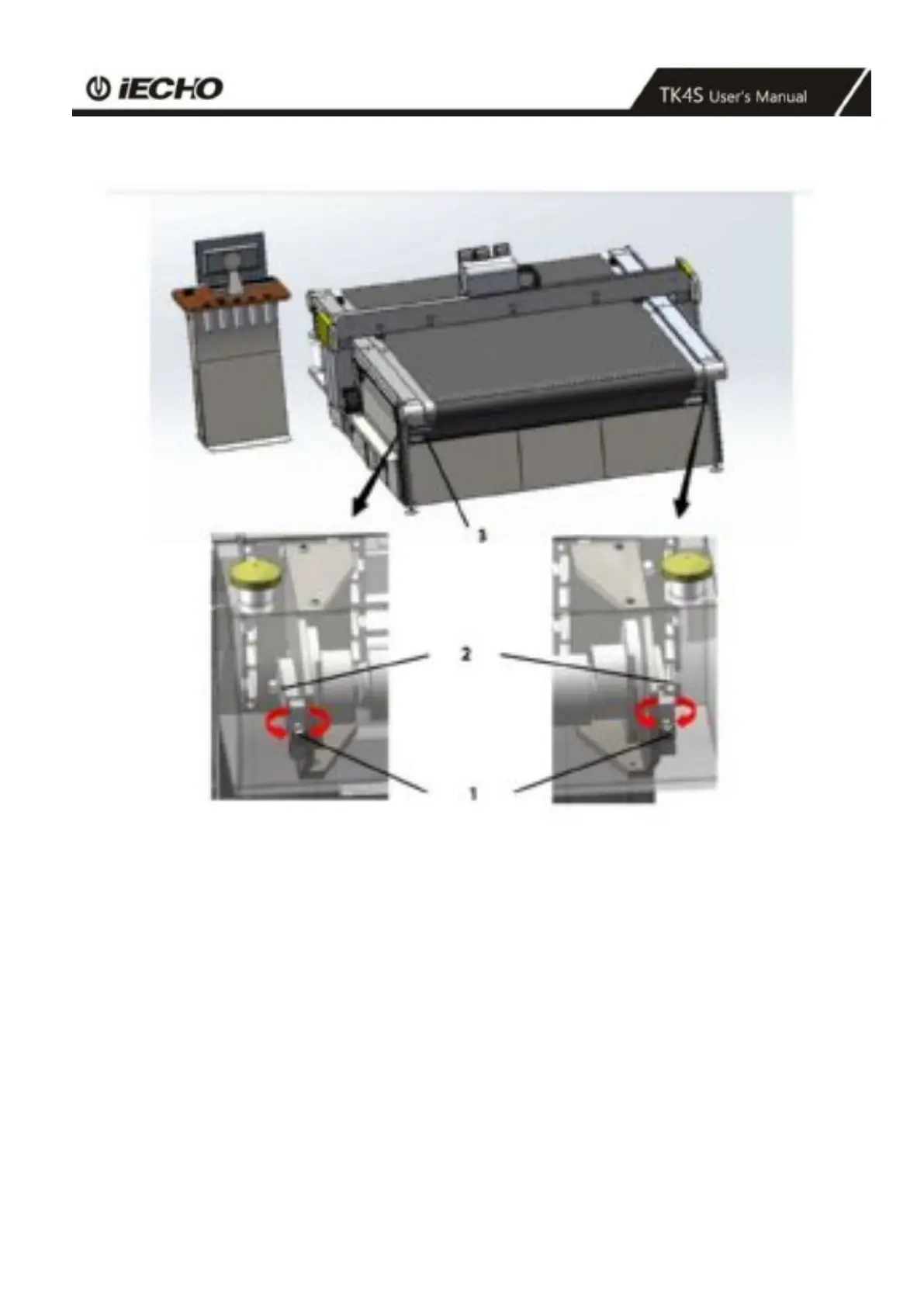

1 - 2 Adjusting screws (both sides) 3 Lower guide rollers (front and rear side)
A Tighten both screws evenly or lower guide rollers
B Check the conveyor belt tension.
C Manually move the conveyor belt by one turn.
D Check the conveyor belt tension again.
