IECHO TK4S - Cutting Head Installation

52
B
Front
Round Stepped Pin
Hole

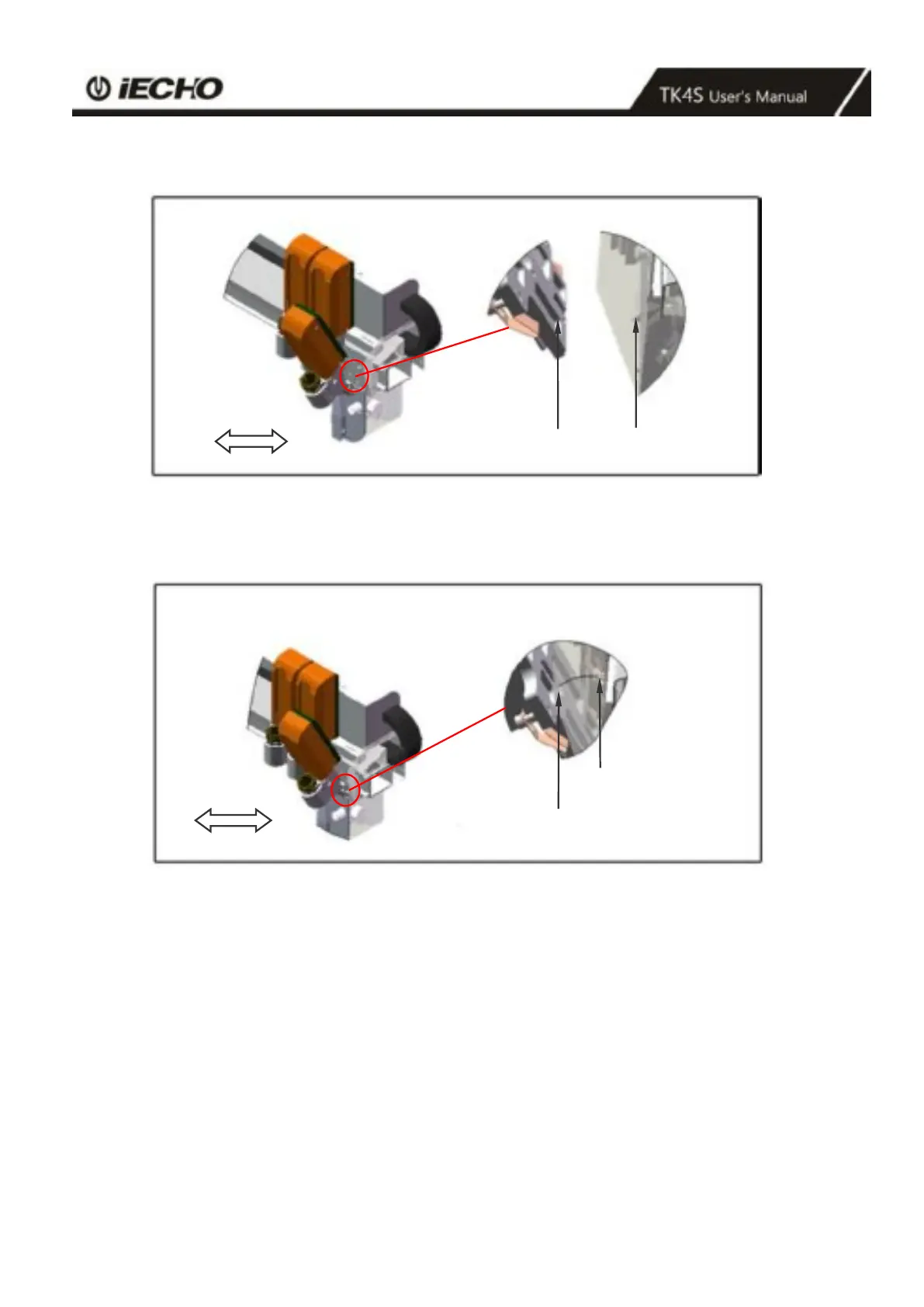

5. Cutting Head Installation
.
Picture 7

Install the module in the way shown in Picture 7. Make sure the locating slot matches the
round pin
Picture 8
 Take the bottom of the module as shaft, rotate the module upward. Picture 8
Back
Front
Slot
Round Pin
