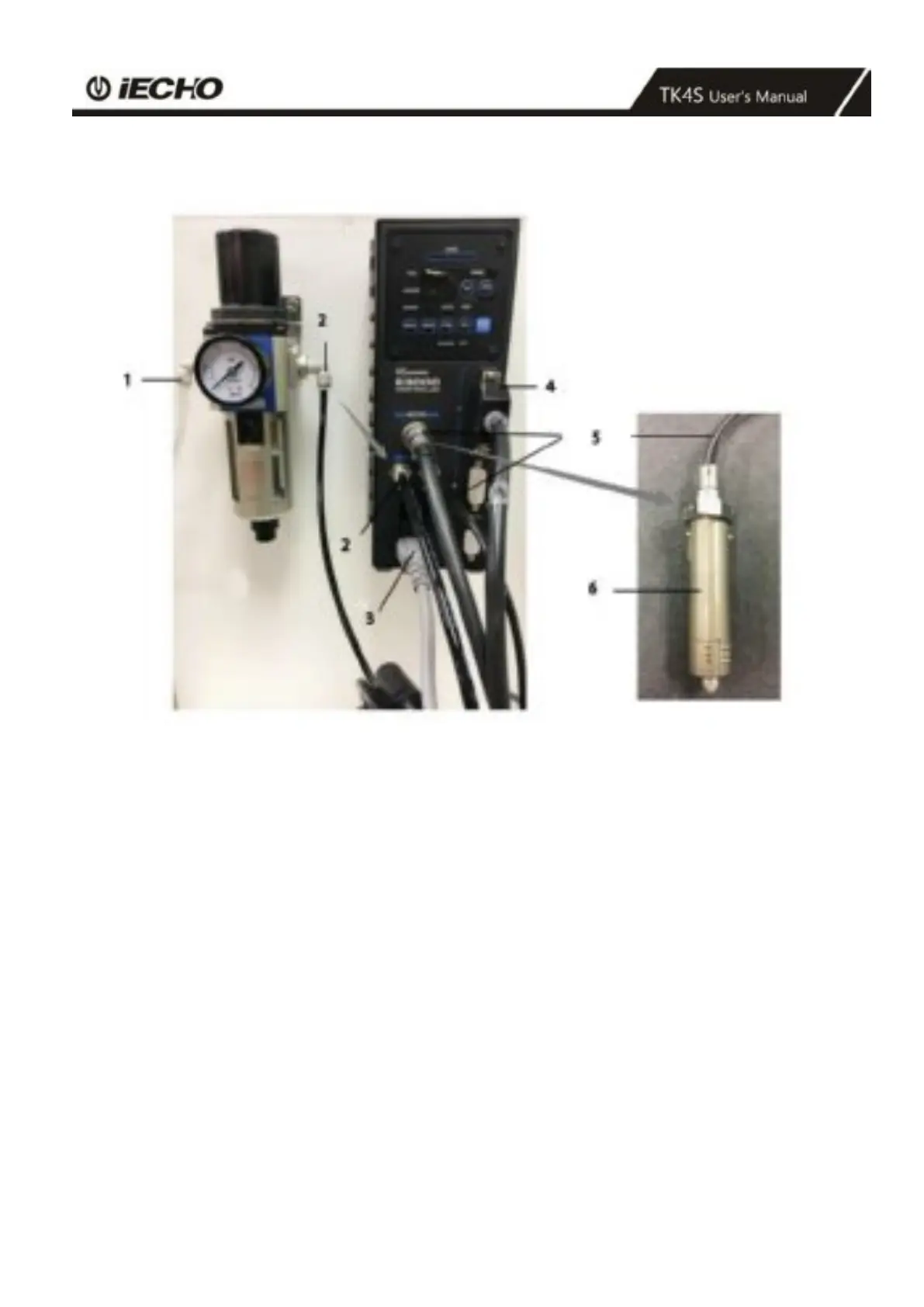

Connect cables in the milling device support
1
Air input of Φ6mm
4
Milling tool communication cable
2
Air output of Φ6mm
5
Milling tool power and Φ4mm tube cable
3
AC 220V Power input
6
Milling tool
