ICE-BT-T6 COM Express Module

Page 6

1.6 Data Flow

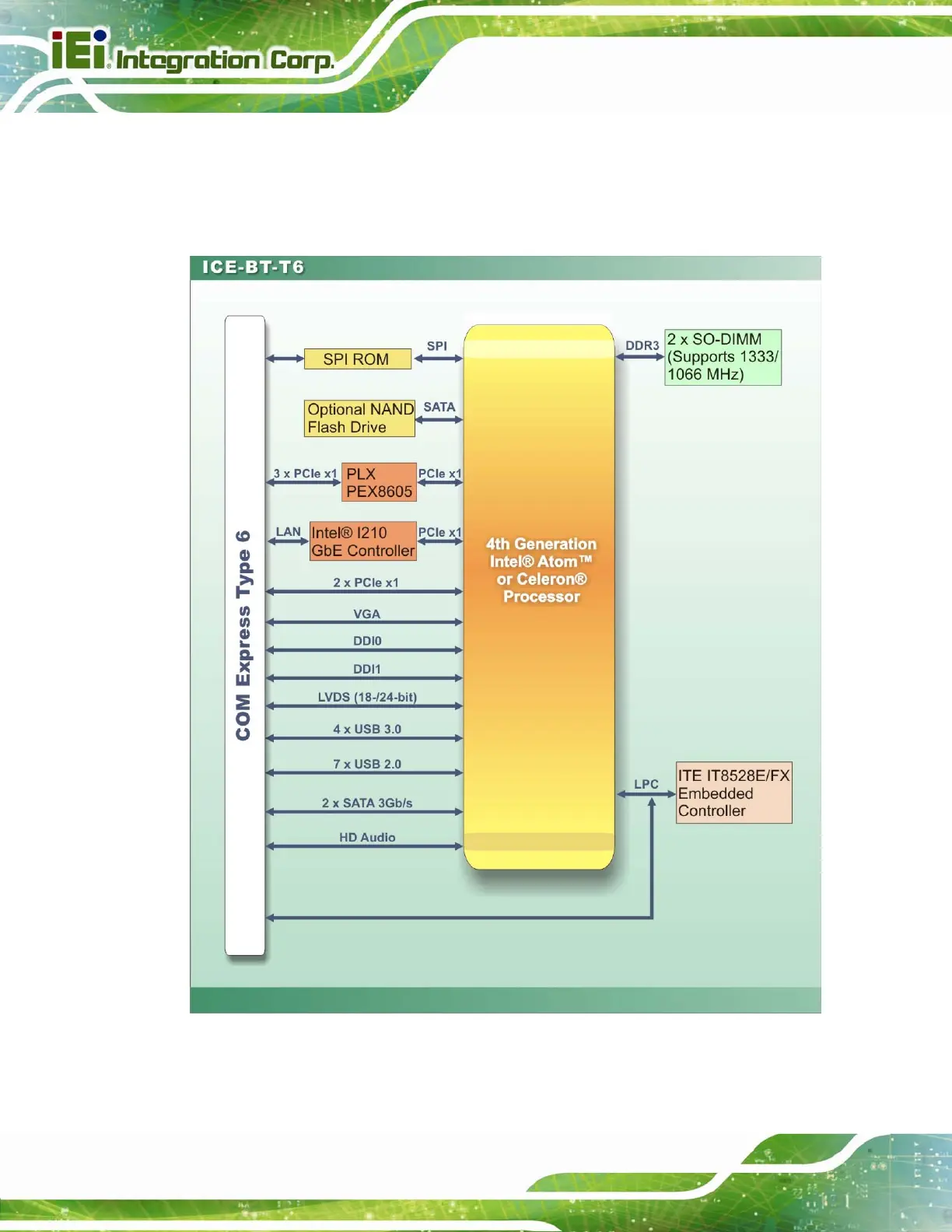

Figure 1-4 shows the data flow between the system chipset, the CPU and other

components installed on the motherboard.

Figure 1-4: Data Flow Diagram
