IEI Technology ICE-BT-T6 User Manual

ICE-BT-T6 COM Express Module
Page 16
3.2 Internal Peripheral Connectors
The section describes all of the connectors on the ICE-BT-T6.
3.2.1 COM Express Connector AB
CN Label: J1
CN Type:
220-pin COM Express connector
CN Location:
See Figure 3-3
CN Pinouts:
See Table 3-2
The standard COM Express connector AB location and pinouts are shown below.

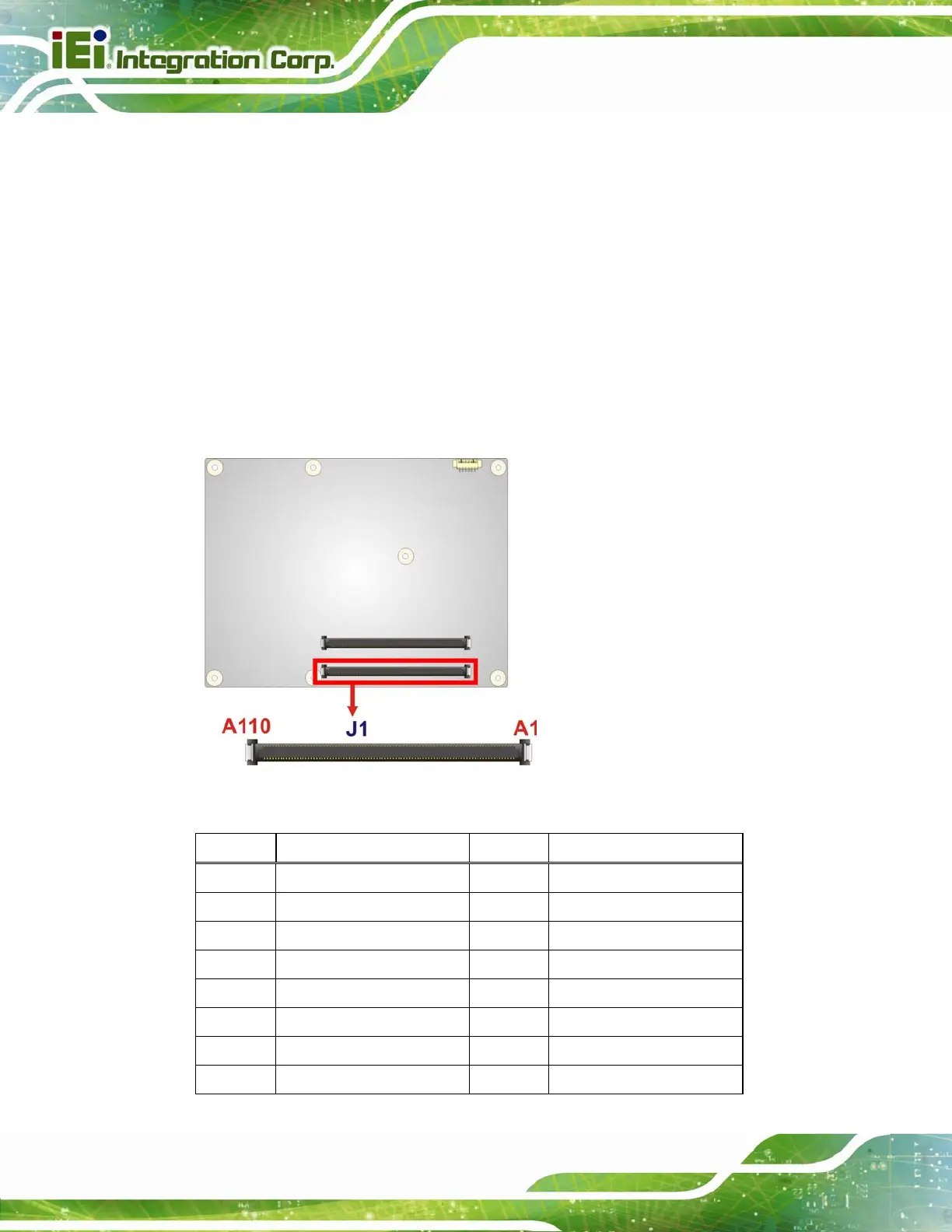

Figure 3-3: COM Express Connector AB Location
Pin No. Description Pin No. Description
A1
GND
B1
GND15
A2
GBE0_MDI3-
B2
GBE0_ACT#
A3
GBE0_MDI3+
B3
LPC_FRAME#
A4
GBE0_LINK100#
B4
LPC_AD0
A5
GBE0_LINK1000#
B5
LPC_AD1
A6
GBE0_MDI2-
B6
LPC_AD2
A7
GBE0_MDI2+
B7
LPC_AD3
A8
RSVD
B8
LPC_DRQ0#
