IEI Technology ICE-BT-T6 User Manual

ICE-BT-T6 COM Express Module
Page 20
Pin No. Description Pin No. Description
A105
VCC_12V8
B105
VCC_12V17
A106
VCC_12V9
B106
VCC_12V18
A107
VCC_12V10
B107
VCC_12V19
A108
VCC_12V11
B108
VCC_12V20
A109
VCC_12V12
B109
VCC_12V21
A110
GND14
B110
GND26
Table 3-2: COM Express Connector Pin Definitions
3.2.2 COM Express Connector CD
CN Label: J2
CN Type:
220-pin COM Express connector
CN Location:
See Figure 3-4
CN Pinou
ts:
See Table 3-3
The sta
ndard COM Express connector CD location and pinouts are shown below.

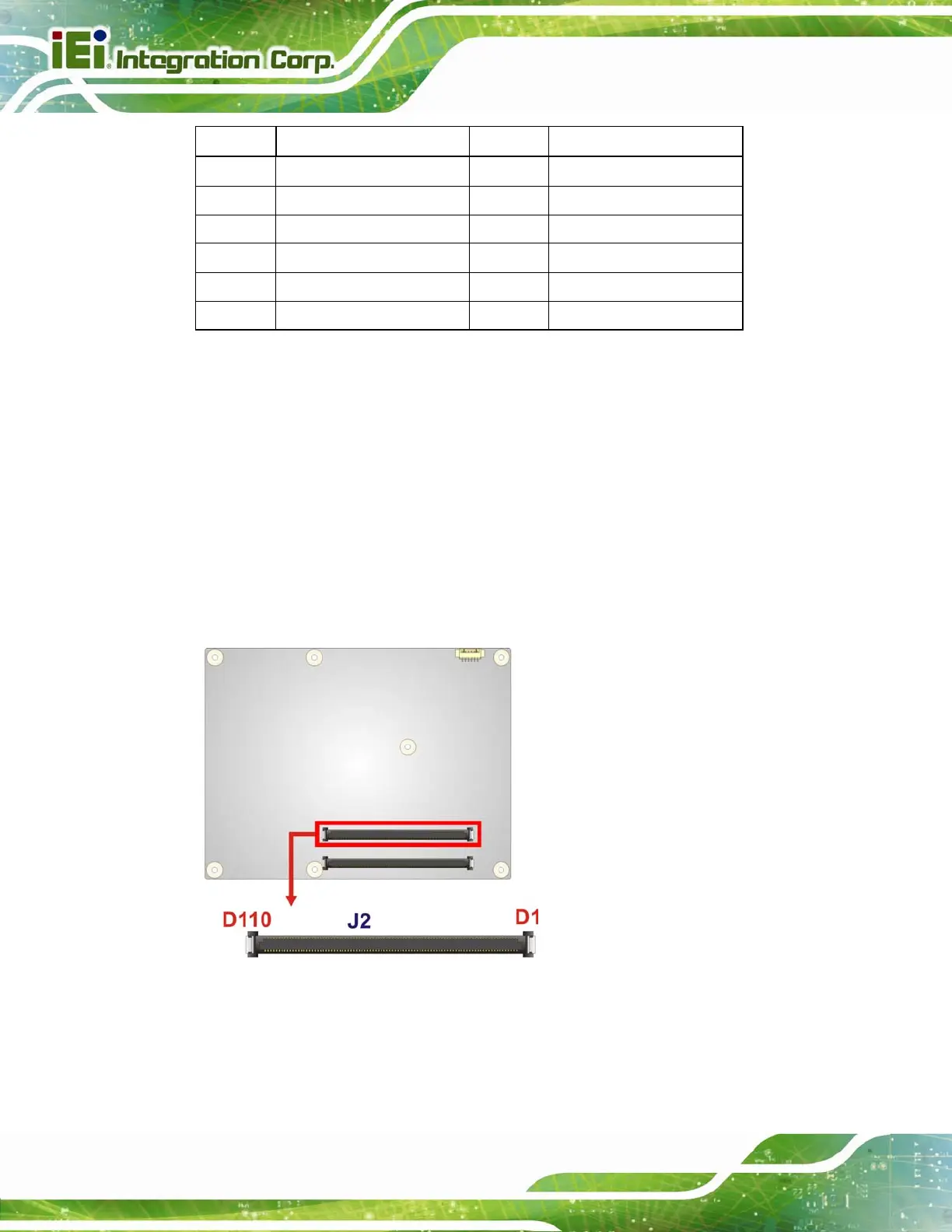

Figure 3-4: COM Express Connector CD Location
