ifm Programming Manual ecomatmobile BasicController (CR0403) Runtime System V03.02 2015-04-01
Configurations Function configuration of the inputs and outputs
>
Analogue inputs: configuration and diagnosis
14656
Configuration of each input is made via the application program:
• FB INPUT (→ page 173) > input MODE
► If the analogue inputs are configured for current measurement, the device switches to the safe
voltage measurement range (0...32 V DC) and the output RESULT is set accordingly in the
function block INPUT when the final value (23 mA for > 40 ms) is exceeded. After about one
second the input automatically switches back to the current measuring range.
As an alternative, an analogue channel can also be evaluated binarily.
8971

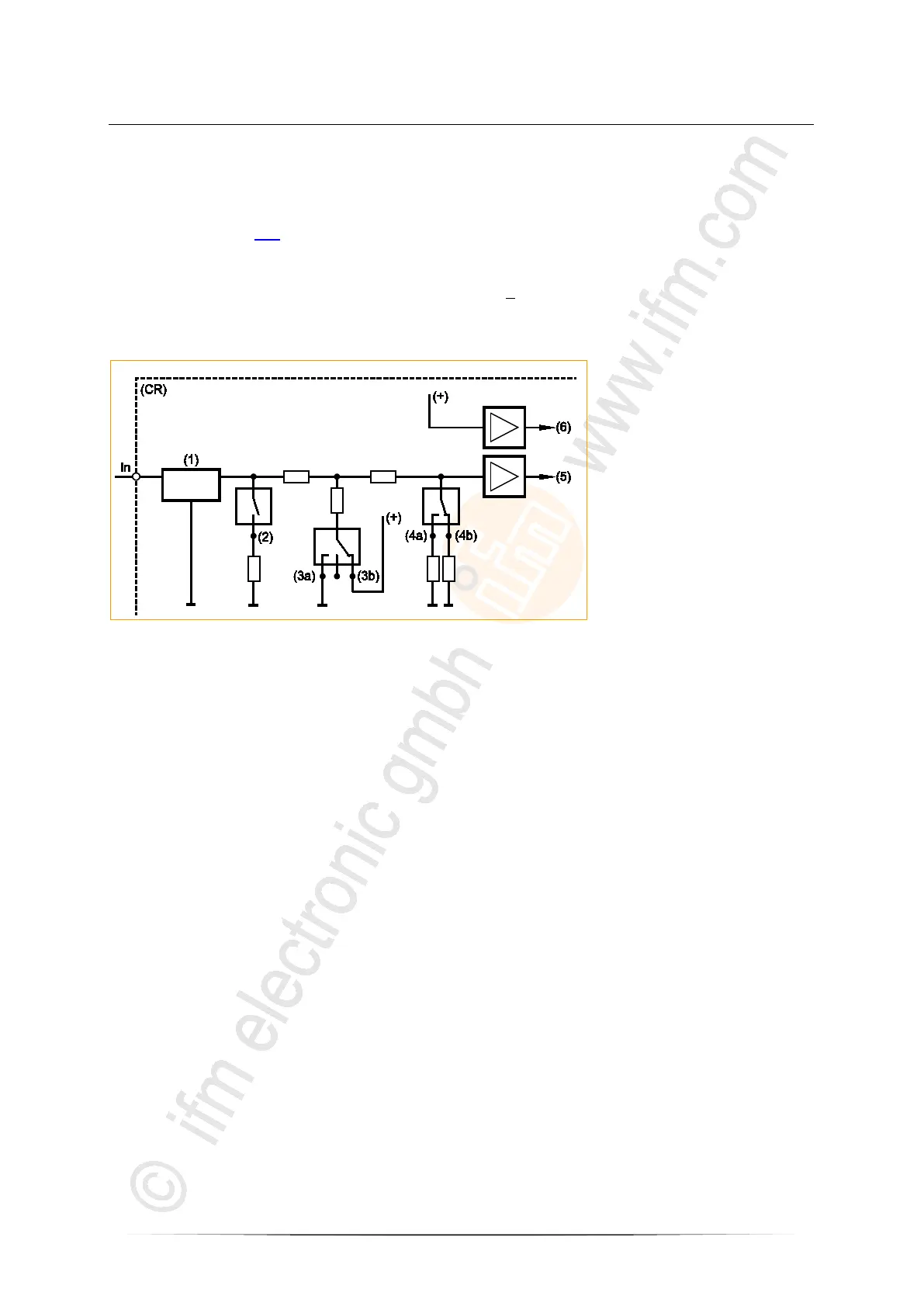

In = pin multifunction input n
(CR) = device
(1) = input filter
(2) = analogue current measuring
(3a) = binary-input plus switching
(3b) = binary-input minus switching
(4a) = analogue voltage measuring 0...10 V
(4b) = analogue voltage measuring 0...32 V
(5) = voltage
(6) = reference voltage
Figure: principle block diagram multifunction input
>
