ifm Programming Manual ecomatmobile BasicController (CR0403) Runtime System V03.02 2015-04-01
ifm function elements ifm function elements for the device CR0403
>
J1939_DM1RX
14977
= J1939 Diagnostic Message 1 RX
Unit type = function block (FB)
Unit is contained in the library ifm_J1939_NT_Vxxyyzz.LIB

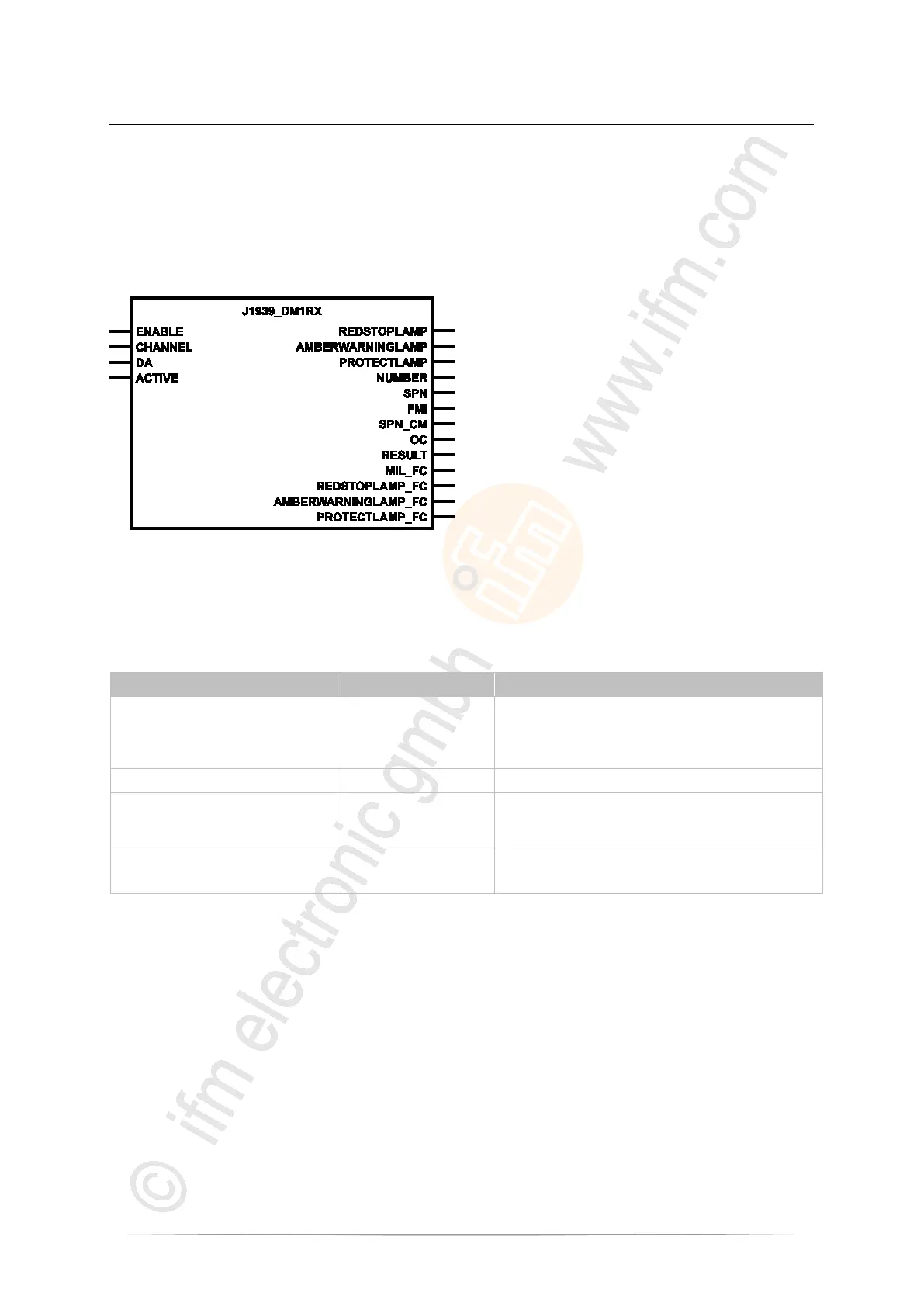

Symbol in CODESYS:
>
Description
7761
J1939_RX_DM1 receives diagnostic messages DM1 or DM2 from other ECUs.
>
Parameters of the inputs
14979
ENABLE BOOL := FALSE TRUE: execute this function element
FALSE: unit is not executed
> Function block inputs are not active
> Function block outputs are not specified
CHANNEL BYTE CAN interface (1...n) depending on the device
DA BYTE DA = Destination Address of the ECU from where the DTCs are to be
retrieved.
DA = 254: read DTCs from the device itself
ACTIVE BOOL TRUE: Read active DTCs (DM1)
FALSE: Read previously active DTCs (DM2)
