CAN_RX
7586
Unit type = function block (FB)
Unit is contained in the library ifm_RawCAN_NT_Vxxyyzz.LIB

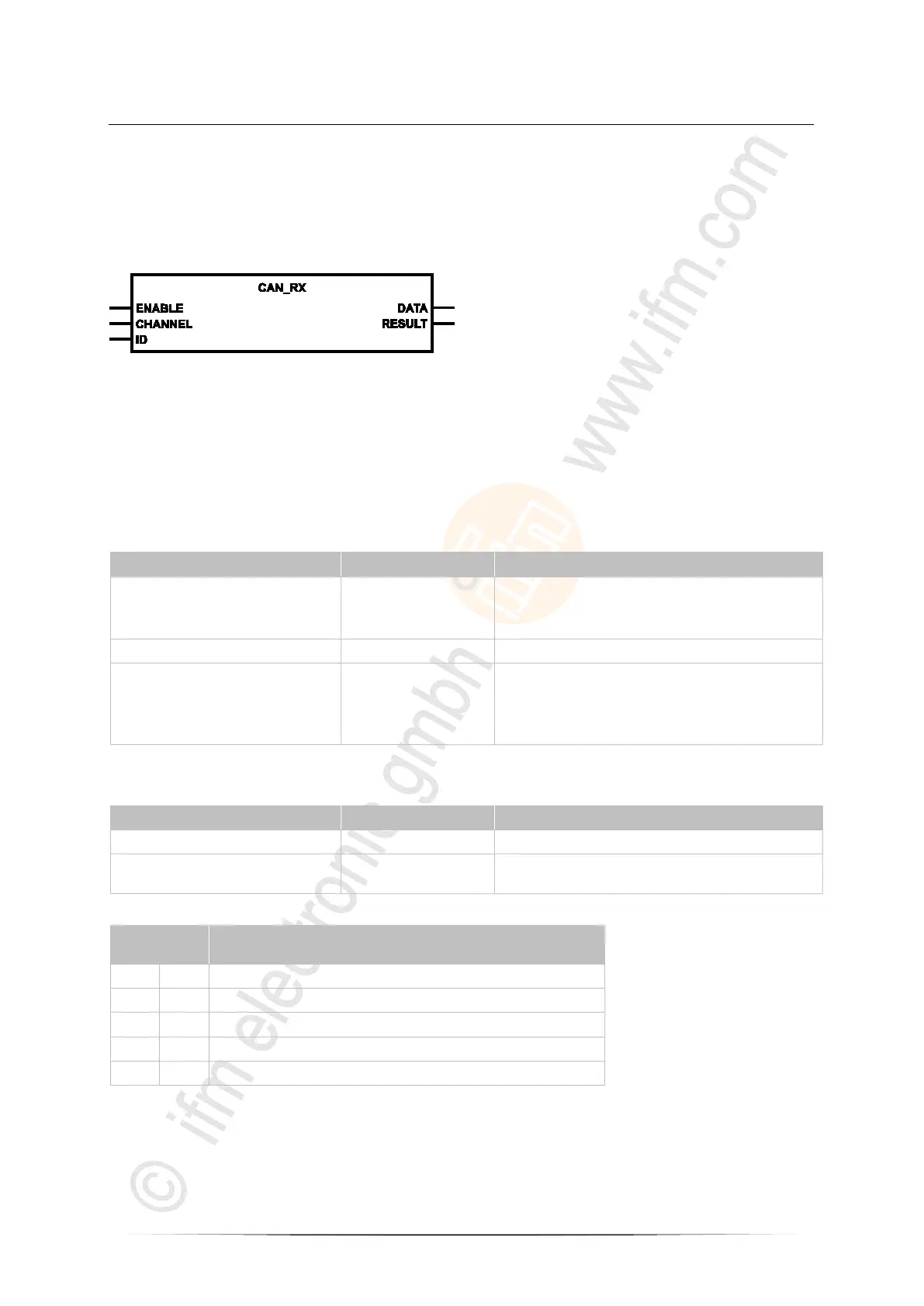

Symbol in CODESYS:
>
Description
7588
CAN_RX is used for receiving a message.
The FB limits itself to a few functions and the required memory space is low.
CAN_RX filters for the set identifier. If several CAN messages with the same identifier are received in
one cycle, only the last / latest message is available.
>
Parameters of the inputs
7589
Parameter
Data type
Description
ENABLE
BOOL
TRUE: execute this function element
FALSE: unit is not executed
> Function block inputs are not active
> Function block outputs are not specified
CHANNEL BYTE CAN interface (1...n) depending on the device
ID DWORD Number of the data object identifier:
normal frame (2
11
IDs):
0...2 047 = 0x0000 0000...0x0000 07FF
Extended Frame (2
29
IDs):
2 048...536 870 911 = 0x0000 0800...0x1FFF FFFF
>
Parameters of the outputs
7590
Parameter
Data type
Description
DATA ARRAY [0..7] OF BYTE received data, (1...8 bytes)
RESULT BYTE feedback of the function block
(possible messages → following table)
Possible results for RESULT:
Value
dec | hex
Description
0 00 FB is inactive
1 01 function block execution completed without error
5 05 FB is being processed – still receiving
9 09 CAN is not active
242 F2 Error: setting is not possible
