8.3 Parameters of the main menu
8.3.1 SP1/rP1 ─ set point/reset point OUT1

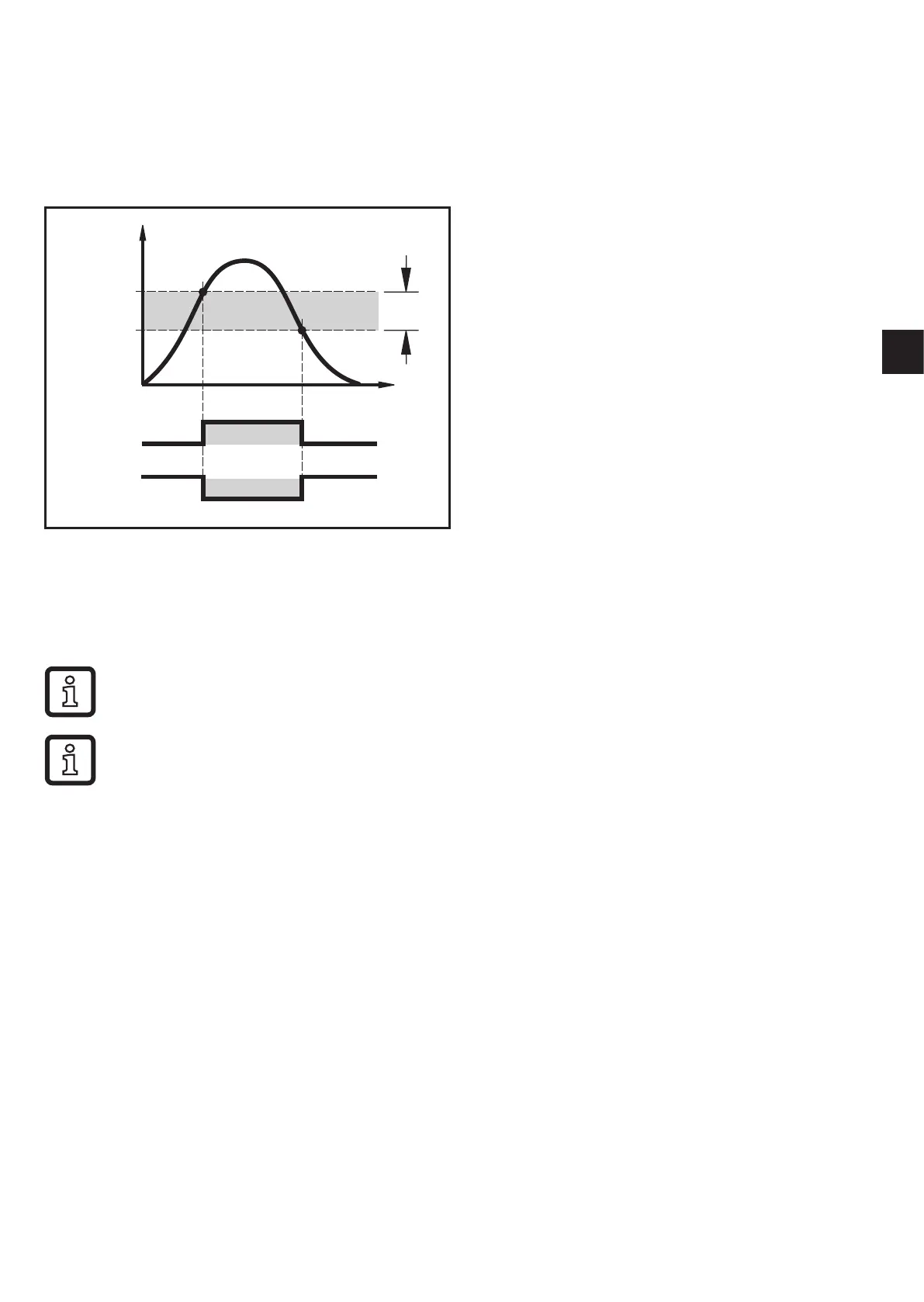

Upper/lower limit for measuring current at which OUT1 switches with hysteresis
setting� Only displayed if the hysteresis function [Hno] or [Hnc] is set in [ou1]�
Hno
Hnc
HY
SP1
1
0
1
0
rP1
OUT1
I [mA]
t
SP:
rP:
HY:
Hno:
Hnc:
Set point
Reset point
Hysteresis
Hysteresis function normally open
Hysteresis function normally closed
Hysteresis functions
► Select [SP1] and set the value at which output OUT1 is set�
► Select [rP1] and set the value at which output OUT1 is reset�
[rP1] is always lower than [SP1]� The device only accepts values which are
lower than the value for [SP1]�
[rP1] follows the changes of [SP1] and keeps the set hysteresis�
