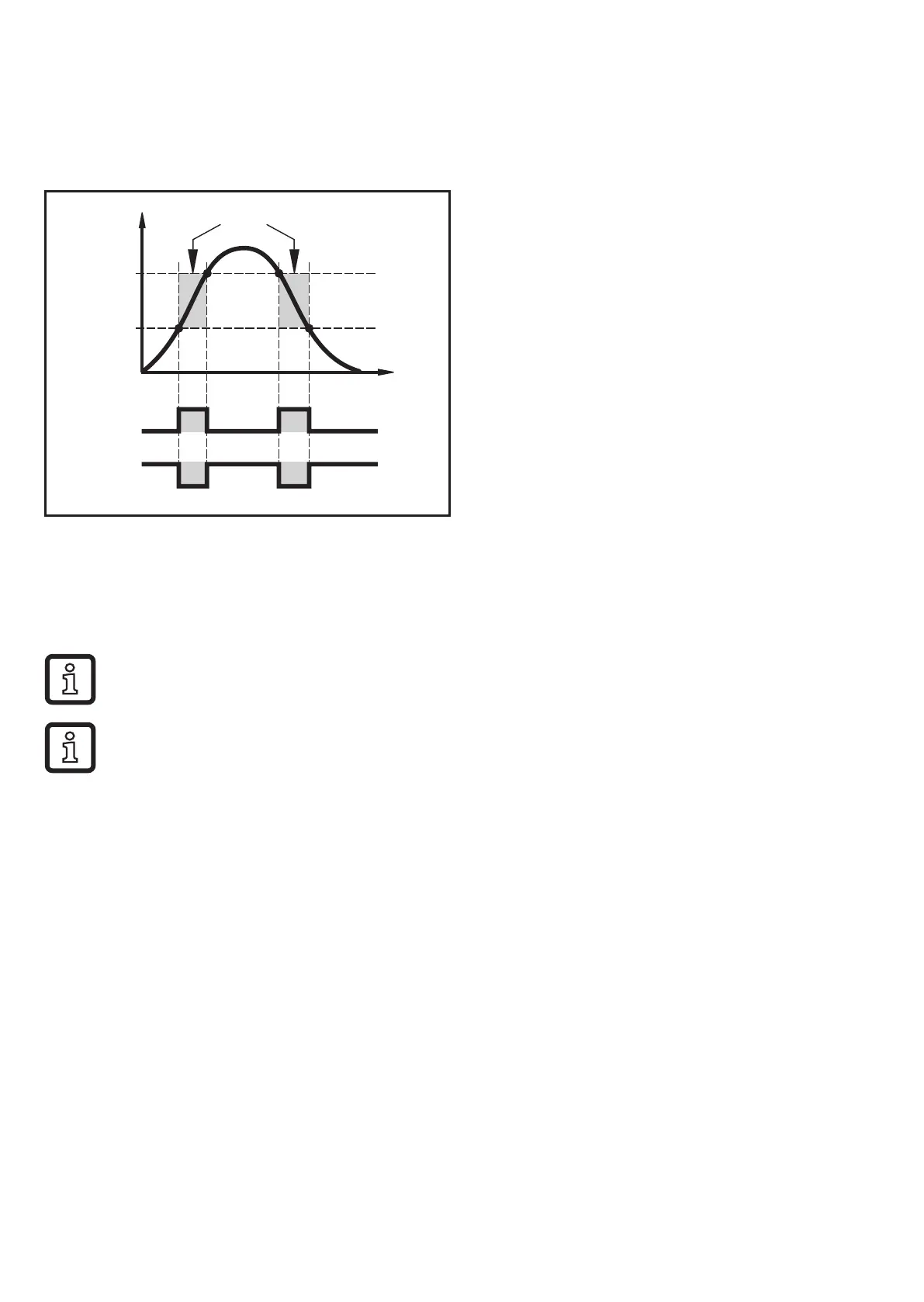

8.3.2 FH1/FL1 ─ min/max switching limits for window function
Upper/lower limit for measuring current at which OUT1 switches within the window
setting� The parameters are only displayed if the window function [Fno] or [Fnc] is
set in [ou1]�
Fno
Fnc
FE
1
0
1
0
FH1
OUT1
I [mA]
FL1
t
FH:
FL:
FE:
Fno:
Fnc:
Window upper value
Window lower value
Window
Window function normally open
Window function normally closed
Window functions
► Select [FH1] and set the upper limit value�
► Select [FL1] and set the lower limit�
[FL1] is always lower than [FH1]� The device only accepts values which are
lower than the value for [FH1]�
[FL1] follows the changes of [FH1] and keeps the set hysteresis�
8.3.3 EF ─ extended functions
The parameter opens the extended functions menu�
(→ 9.3.3 Change from the main menu to the extended functions menu)
