8.4.7 coLr ─ display colours and colour changes
Assignment of the display colours "red" and "green" within the measuring range�
• [rEd] = continously red (independent of the measured value)�
• [GrEn] = continously green (independent of the measured value)�
• [r1ou] = red when OUT1 switches�
• [G1ou] = green when OUT1 switches�
OUT1
gn
rd
4 mA 20 mA
OUT1
rd
gn
4 mA 20 mA

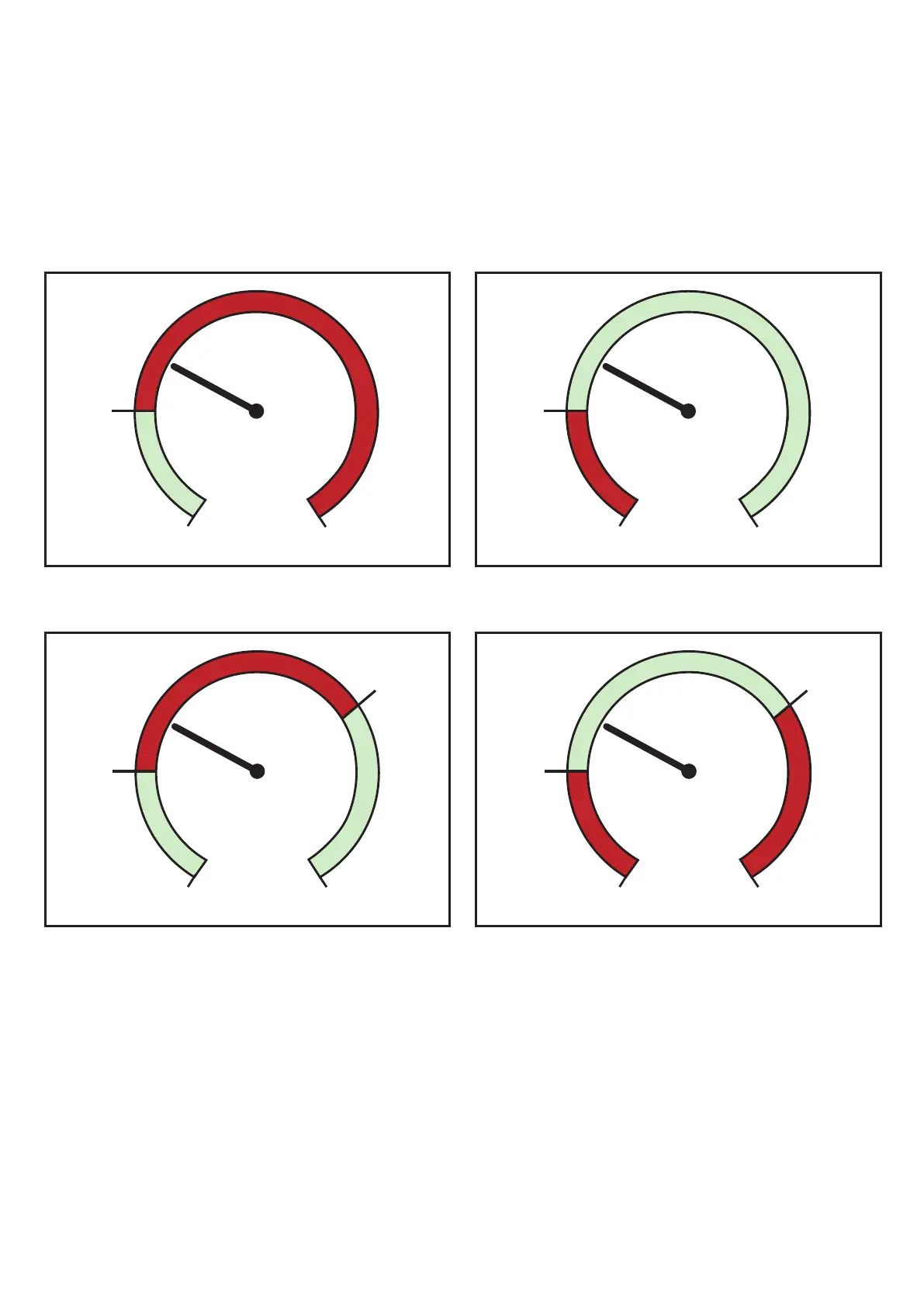

Hysteresis function with [r1ou] Hysteresis function with [G1ou]
FL1
FH1
gn gn
rd
4 mA 20 mA
FL1
FH1
rd rd
gn
4 mA 20 mA
Window function with [r1ou] Window function with [G1ou]
• [r-cF] = red when the measured value is between the values [cFL] and [cFH]�
• [G-cF] = green when the measured value is between the values [cFL] and
[cFH]�
8.4.8 cFH/cFL ─ upper/lower value for colour change
If [coLr] is set to [r-cF] or [G-cF]:
