6.4.1 Installation in closed metal tanks (without flange plate)

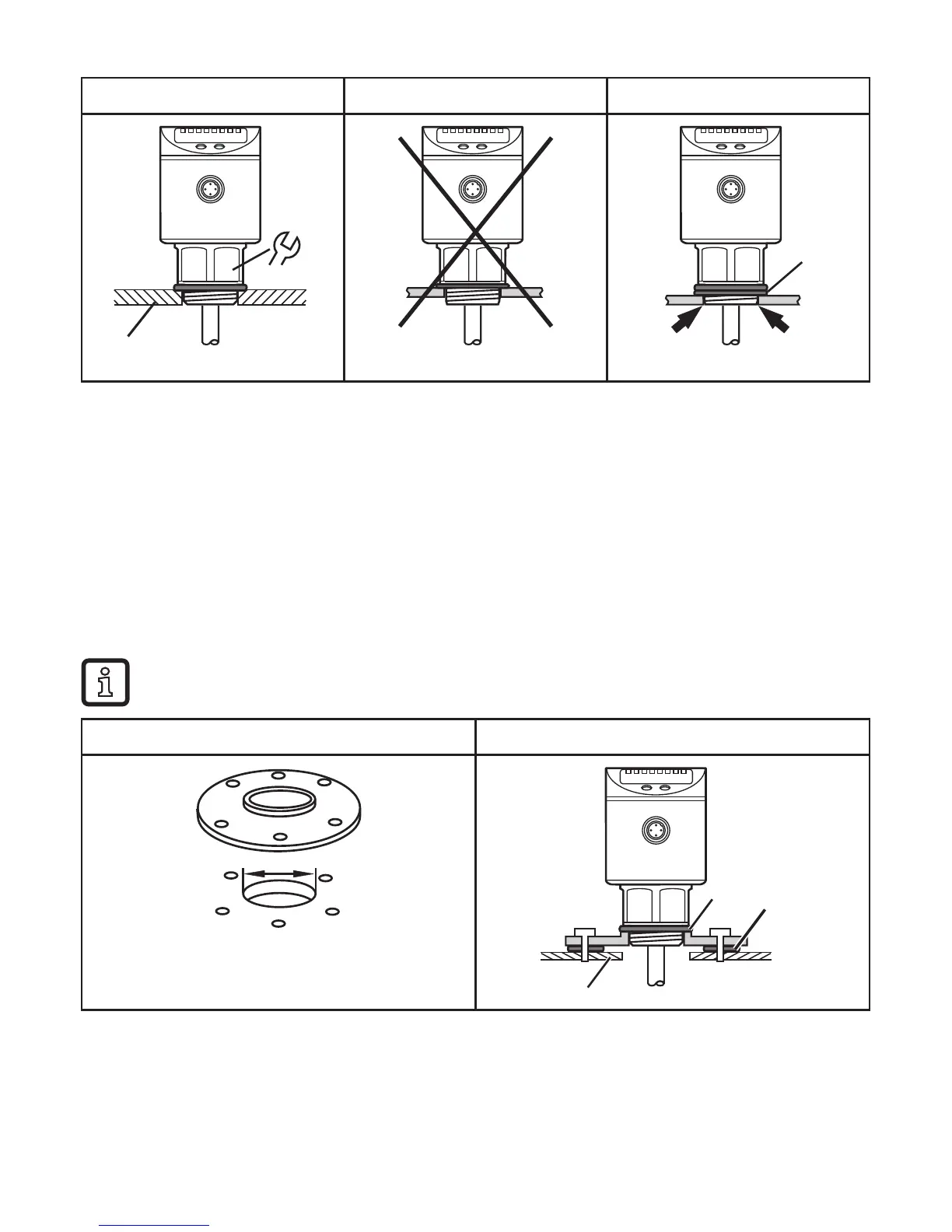

Fig.: 6-7 Fig.: 6-8 Fig.: 6-9
R
32
D
► The lower edge of the process connection should be flush with the installation
environment (fig� 6-7)�
► Avoid non-flush installation (fig� 6-8)�
► Use seals or washers (D in fig� 6-9) to reach the required height�
► For tanks with thick walls arrange for sufficiently deep recesses to ensure flush
installation�
6.4.2 Installation in closed metal tanks (with flange plate)
Flange plates are not supplied. They must be ordered separately (→ 3
Items supplied)�
Fig.: 6-10 Fig.: 6-11
d
R
A
B
