IFM Electronic LR3000 - 6�1�2 Unit with Coaxial Probe

17
UK

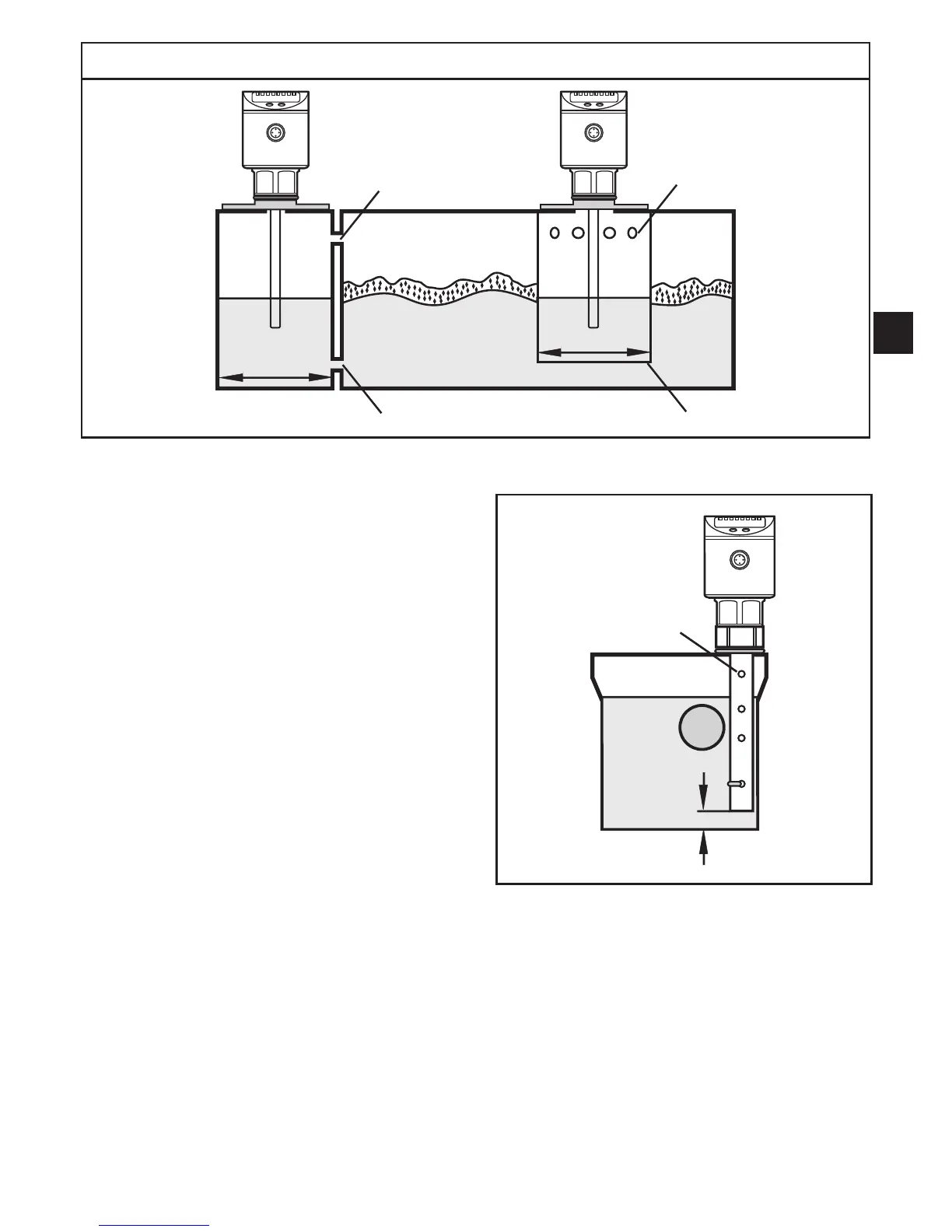

Fig.: 6-5
d
d
A
B
C
D
6.1.2 Unit with coaxial probe
• No minimum distances to the
tank wall and the baffles (B) are
required�
• Minimum distance to the bottom of
the tank: 10 mm�
• The vent hole (A) must not be
covered by mounting elements or
similar�
• Do not install the unit in the
immediate vicinity of a fill opening�
No water jets must enter into the
holes of the coaxial pipe�
A
B
10 mm
• Note in case of foam formation: the vent of the coaxial pipe must be above the
maximum level� The lower edge of the coaxial pipe must be below the minimum
level�
