The variable clamp fitting (accessory) allows variable mounting for unit
types LMT1x4 and LMT1x5� This enables e�g� high-precision adjustment
of the response point� Moreover, these types can be thermically decoupled
from the process� This also makes applications with higher process
temperature and/or with the risk of heat accumulation possible
(e�g� tank insulation)�
4.3.3 Application example installation in existing tuning fork adapters
Fig. 5-6
1: maximum level

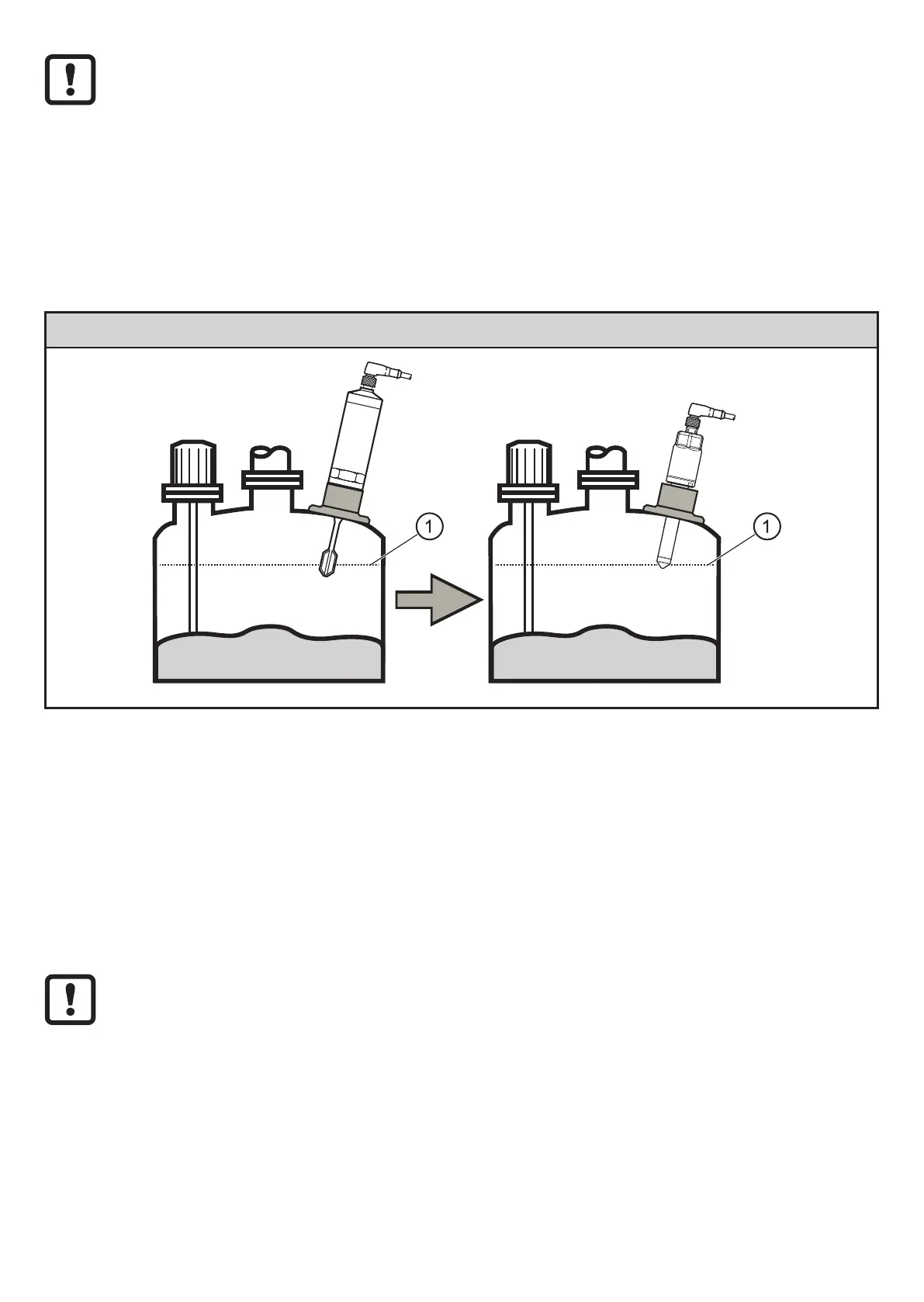

Fig� 5-6: Existing tuning fork welding adapters can be used in many cases with the
unit types LMT2x2 and LMT3x2 (with G3/4 or G1 process connection
(→ 3.1 Applications)� Typically, the response point (1) remains in most cases�
► For use of process connections from other manufacturers:
Adhere to installation location / environment (→ 5.1)�
If properly installed in the original, hygienic welding adapter, EHEDG and
also 3A conformity can be reached�
