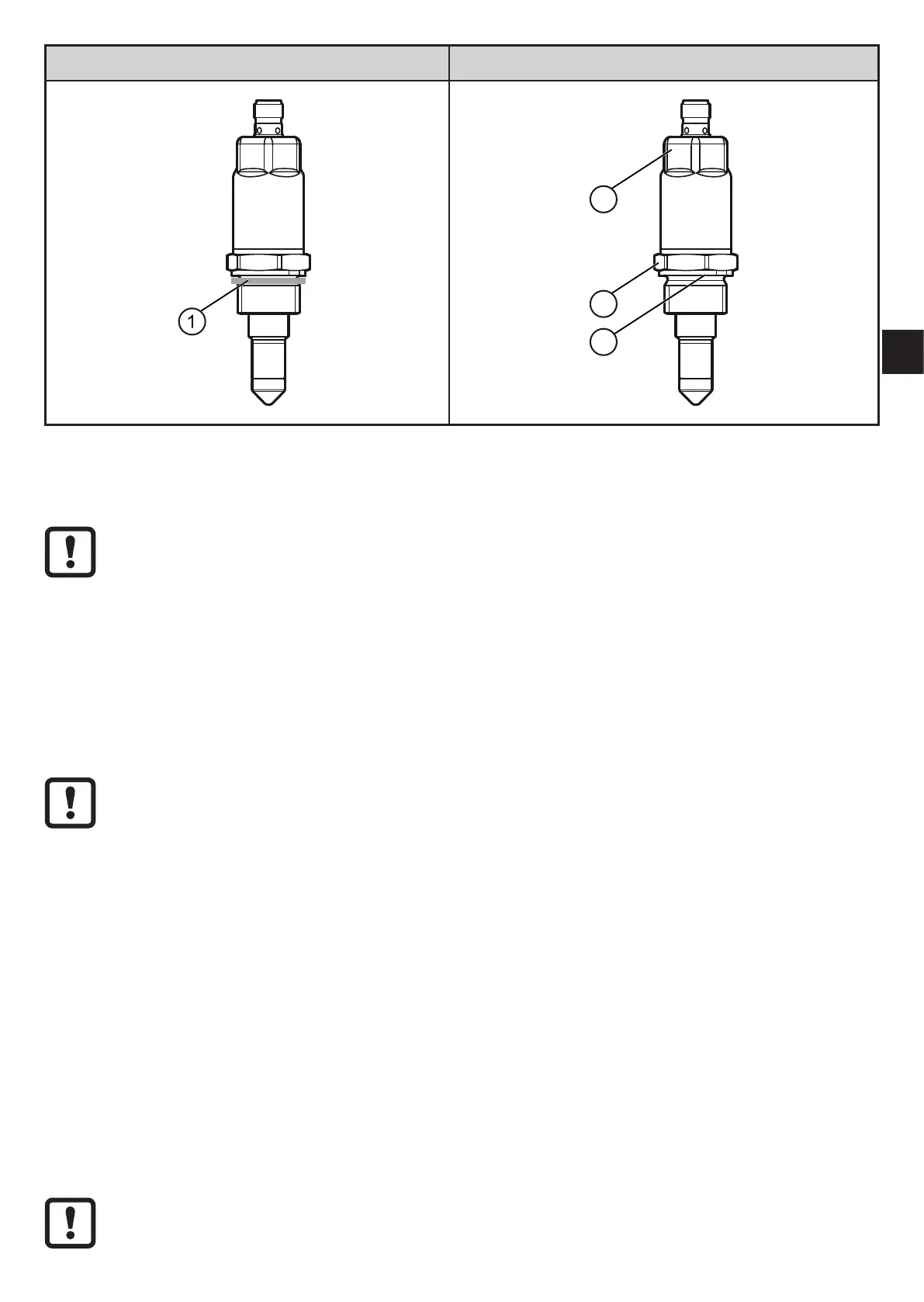

Fig. 6-5 Fig. 6-6
2
1
3
1: Green at seal 1: Hexagon AF 27
2: Hexagon LMT2x2 AF32/LMT3x2 AF36
3: End stop
Max� tightening torque for the hexagon AF 27 (1), fig� 6-6: 35 Nm!
► After installation check the tank / pipe for ingress resistance�
5.3 Notes on 3A compliant installation
Some versions of the unit have a 3A approval (→ 3.1 Applications)�
It is only valid in conjunction with adapters with 3A approval�
• Even with 3A compliant accessories, units without 3A approval cannot
be mounted in accordance with 3A�
• Not suitable for use where the criteria for paragraph E1�2/63-03 of the
3A standard 63-03 have to be met�
5.4 Note on the use in accordance with EHEDG
Depending on the version, the unit is certified to EHEDG� It is only valid in
conjunction with adapters with EHEDG approval (accessory)�
► For use of process connections from other manufacturers:
Adhere to installation location / environment (→ 5.1)�
► Make sure that the sensor is integrated into the system in accordance with
EHEDG�
The EHEDG approval only applies if the unit is used without PEEK sealing
ring (→ 5.2.2)�
