4.3.2 Application examples for unit types with long probe

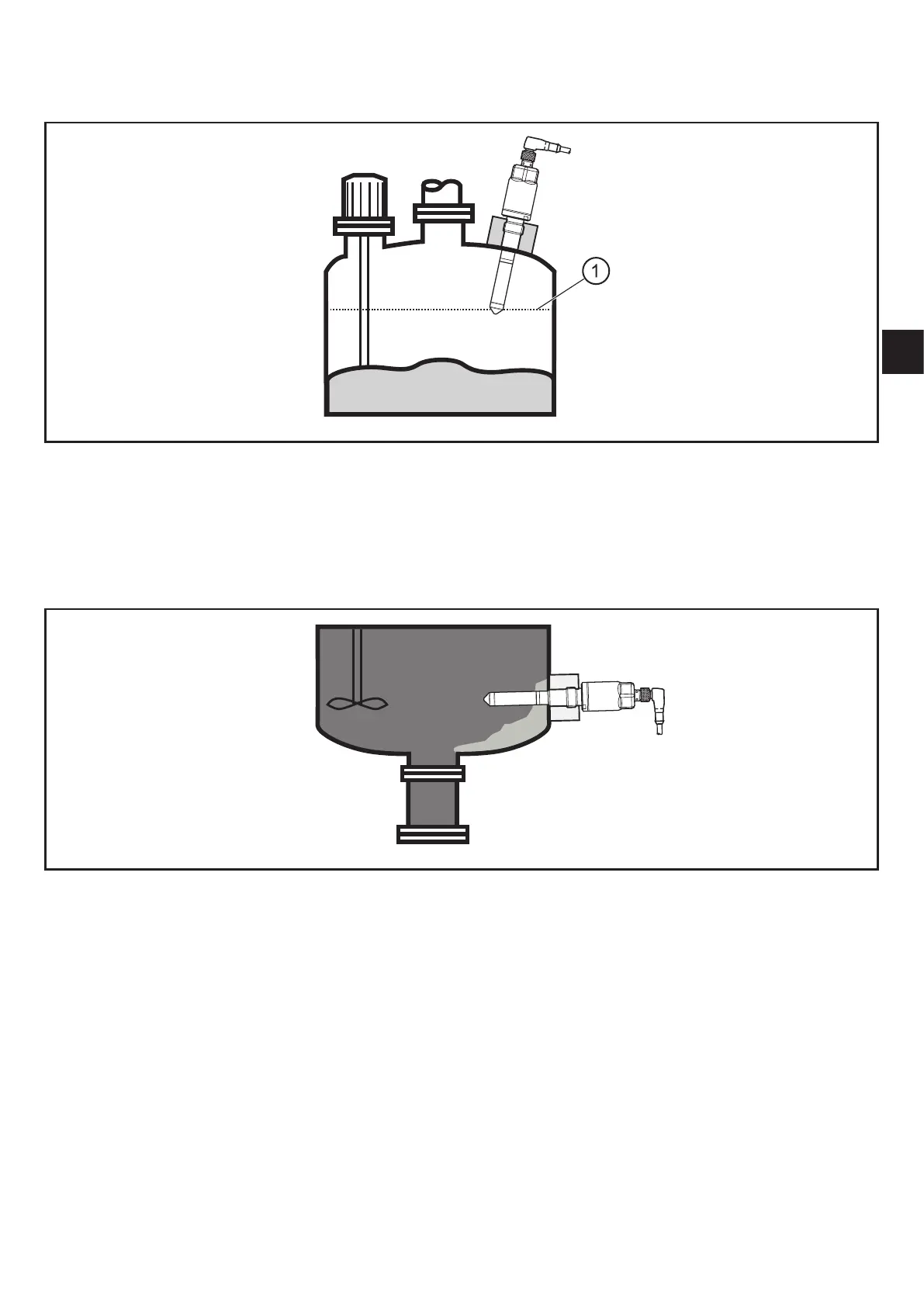

Installation from the top:
1: Maximum level
Fig� 5-4: For monitoring the maximum level (1) or as overflow protection� Different
probe lengths enable different response levels�
Lateral installation:
Fig� 5-5: Since the probe tip is installed further into the tank, strongly adhesive and
viscous residues can be suppressed�
