5.2.2 Installation LMT1x4 and LMT1x5

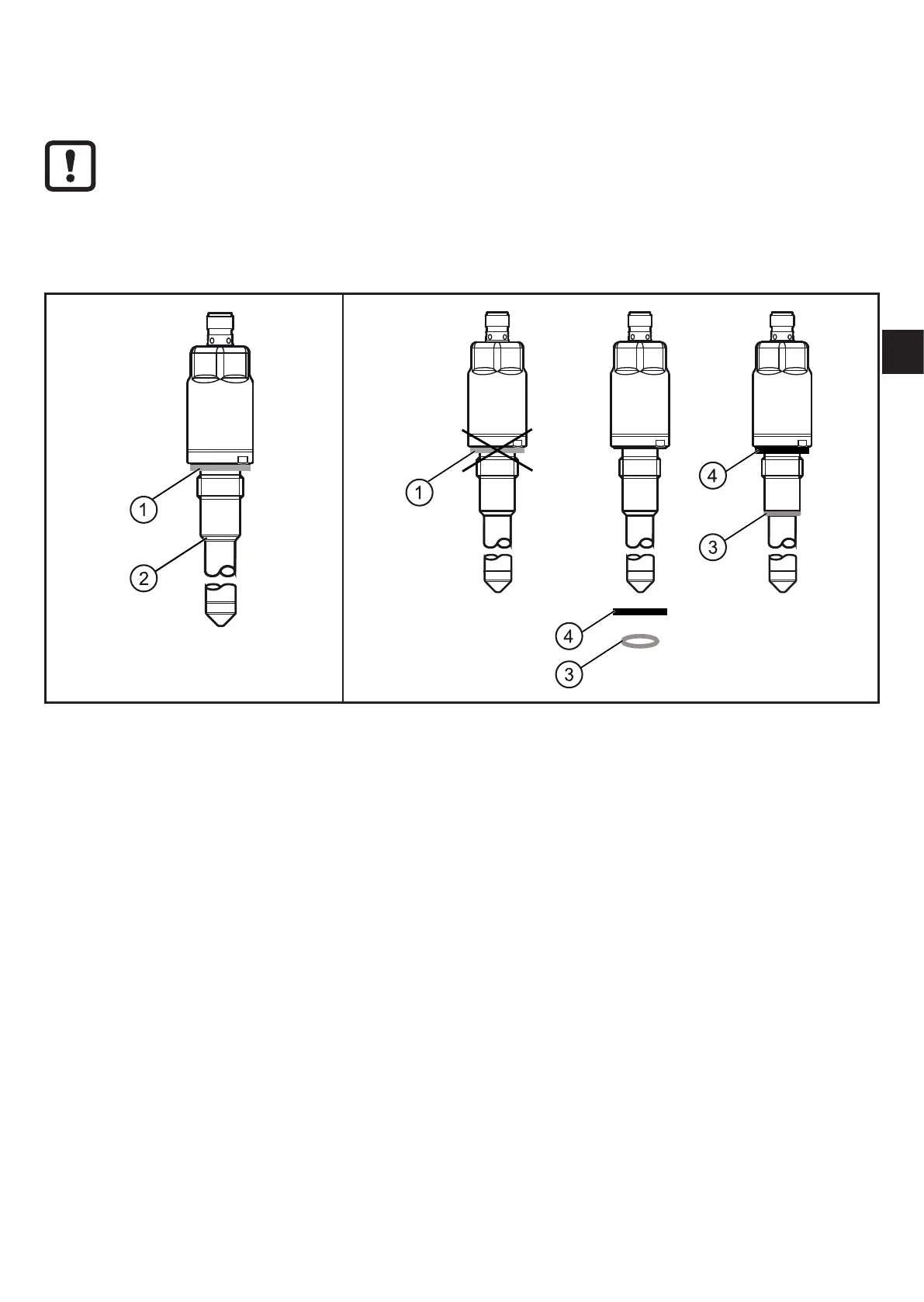

The seal is formed by the flush front of the metal cone (2), fig� 6-3�
As an option, a PEEK sealing ring (3), fig� 6-4, is available� If the welding
adapter is slightly warped or the sealing surface slightly damaged, the
use of the PEEK sealing ring is recommended� The PEEK sealing is not
supplied with the unit� It can be ordered separately�
1: green at seal
2: metal sealing cone
3: PEEK sealing, beige
4: black at seal
Installation using the metal sealing cone (2), fig. 6-3
► Insert the green flat seal (1) and/or check its position�
It seals the gap on the back between the sensor and the adapter�
► Slightly grease the thread of the sensor using a lubricating paste which is
suitable and approved for the application�
► Screw the sensor into the respective process connection and tighten it�
Max� tightening torque: 20…25 Nm
► After installation check the tank / pipe for ingress resistance�
