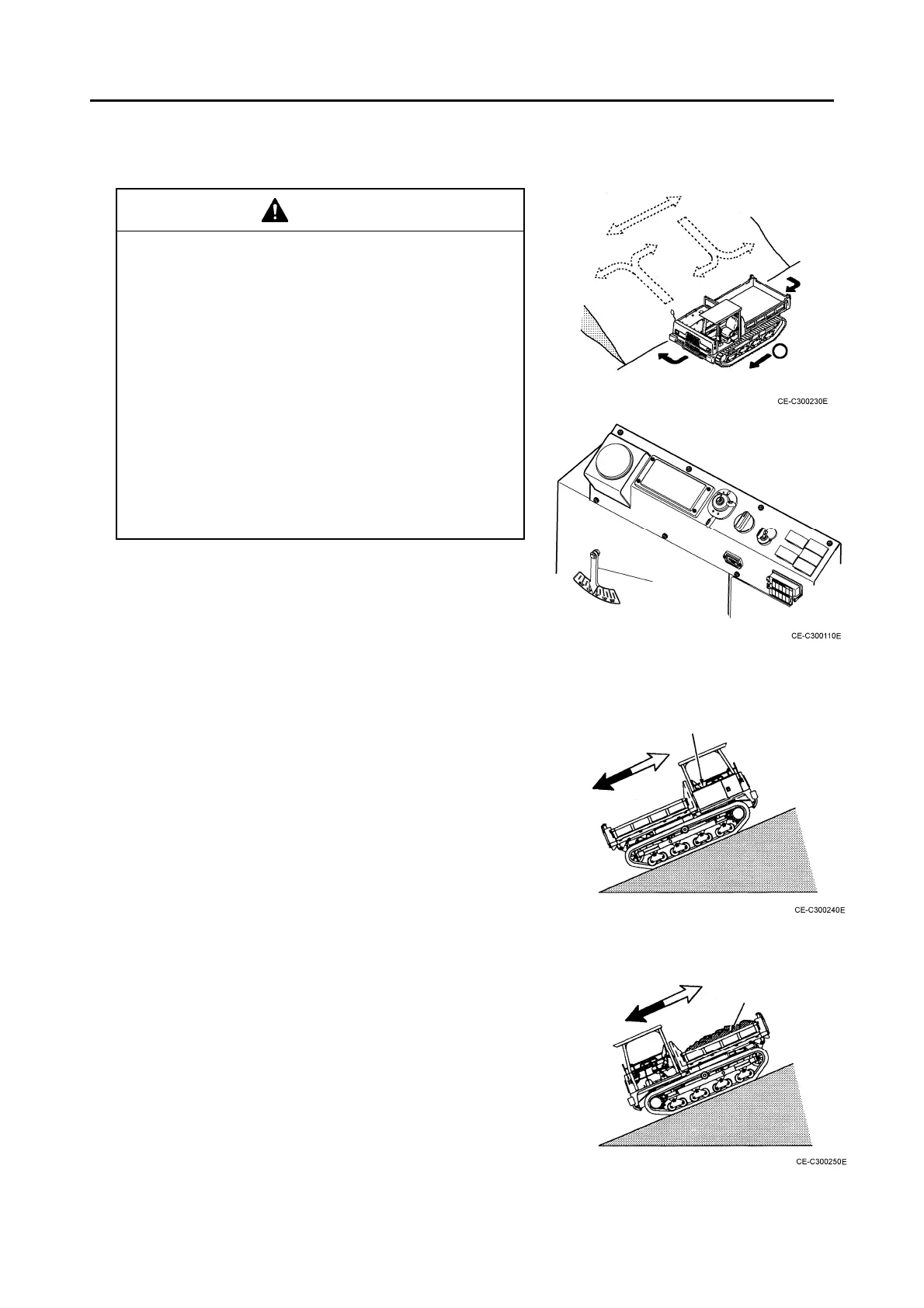

OPERATION
IC50 ENG 3-9
Caution of travel on a steep grade
DANGER
• Do not travel on grades over 20° in order to
avoid turnover.
Otherwise, the machine may fall down, resulting
in a serious accident.
• On steep grades over 9°, travel the machine at
low travel speed and middle or lower engine
speed.
• If the machine is inclined in the forward
direction by 9°, the slope warning is given.
• Never change the travel direction on steep
grades or cross such grades. Such operation
may cause turnover or slip. Move down to a flat
ground once and make a detour. Be sure to
drive safely.
Cautions
Travel in the proper postures shown below.
• Drive the machine with the cabin upper side of a slope
when the body is empty. This posture ensures stable
driving, since the center of gravity is located on the
cabin side.
• Drive the machine with the body upper side of a slope
when the body is full. This posture ensures stable
driving, since the center of gravity is located on the
body side.
• When driving over an obstacle, reduce the speed and
drive safely with care not to turn over.
• Do not accelerate or decelerate the speed or stop
suddenly.
• The engine may stop if the travel lever is pulled fully
while climbing a slope.
When the engine speed lowers, return the travel lever
slightly to reduce the engine load.
Never change the travel direction on
or cross a slope.
（Wrong)
Make a detour on
a flat ground.
Downhill
Uphill
Operator seat
Traveling on slope with an
unloaded machine
Downhill
Uphill
Traveling on slope with a
loaded machine.
Body
Inclinomete
