MAINTENANCE
IC50 ENG 4-16
Posture for replacing the return
Return filte
Replace the return filter cartridge
WARNING
• Be sure to set the safety bars under the body
when starting work with the body raised.
• Oil is hot immediately after operation. You may
get burnt if you touch oil.
Start work after oil has cooled down.
1. Place the machine on a flat and rigid ground and bring
it into the posture for changing hydraulic oil. Stop the
engine.

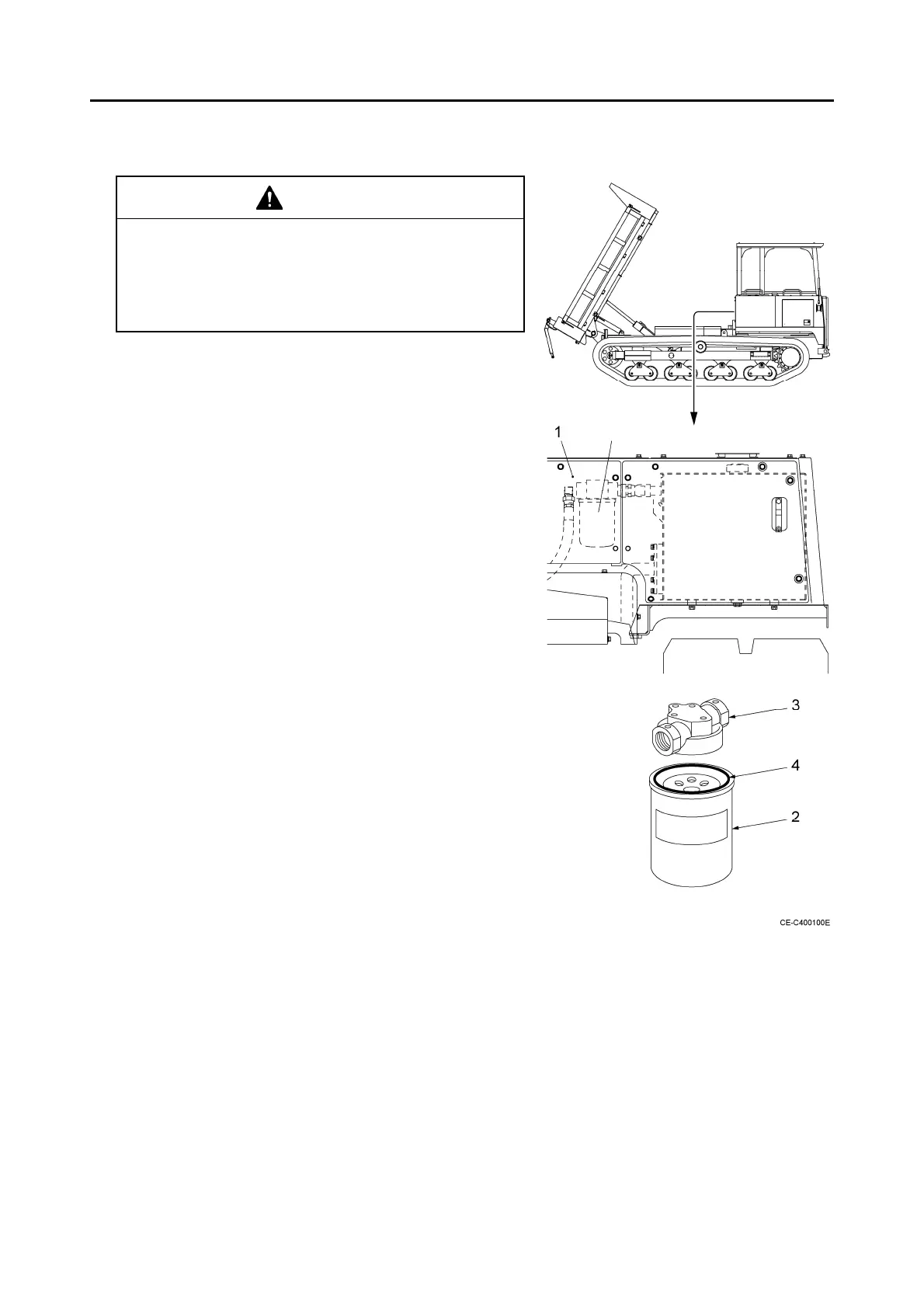

2. Detach the cover (1) and remove the filter cartridge (2).
3. Clean the filter mounting position of the filter head (3).
Apply hydraulic oil to the O ring (4) of a new filter
cartridge.
4. Attach the filter cartridge and tighten it with the filter
wrench.
Tighten it until the O ring is crushed and the top of the
cartridge is brought into contact with the head.
5. Start the engine. Make sure that no oil leaks from the
mounting position of the filter cartridge.
6. Store the safety bars, lower the body and check the oil
level in the hydraulic oil tank.
It is OK if the oil level is between the H and L positions
of the level gauge.
Refill hydraulic oil if insufficient.
