MAINTENANCE
IC50 ENG 4-7
LUBRICATE THE GREASE
Refill the grease nipples with grease using a grease gun.
Remove oozed old grease after refilling.
Body
WARNING
Be sure to set the safety bars under the body when
lubricating with the body raised.

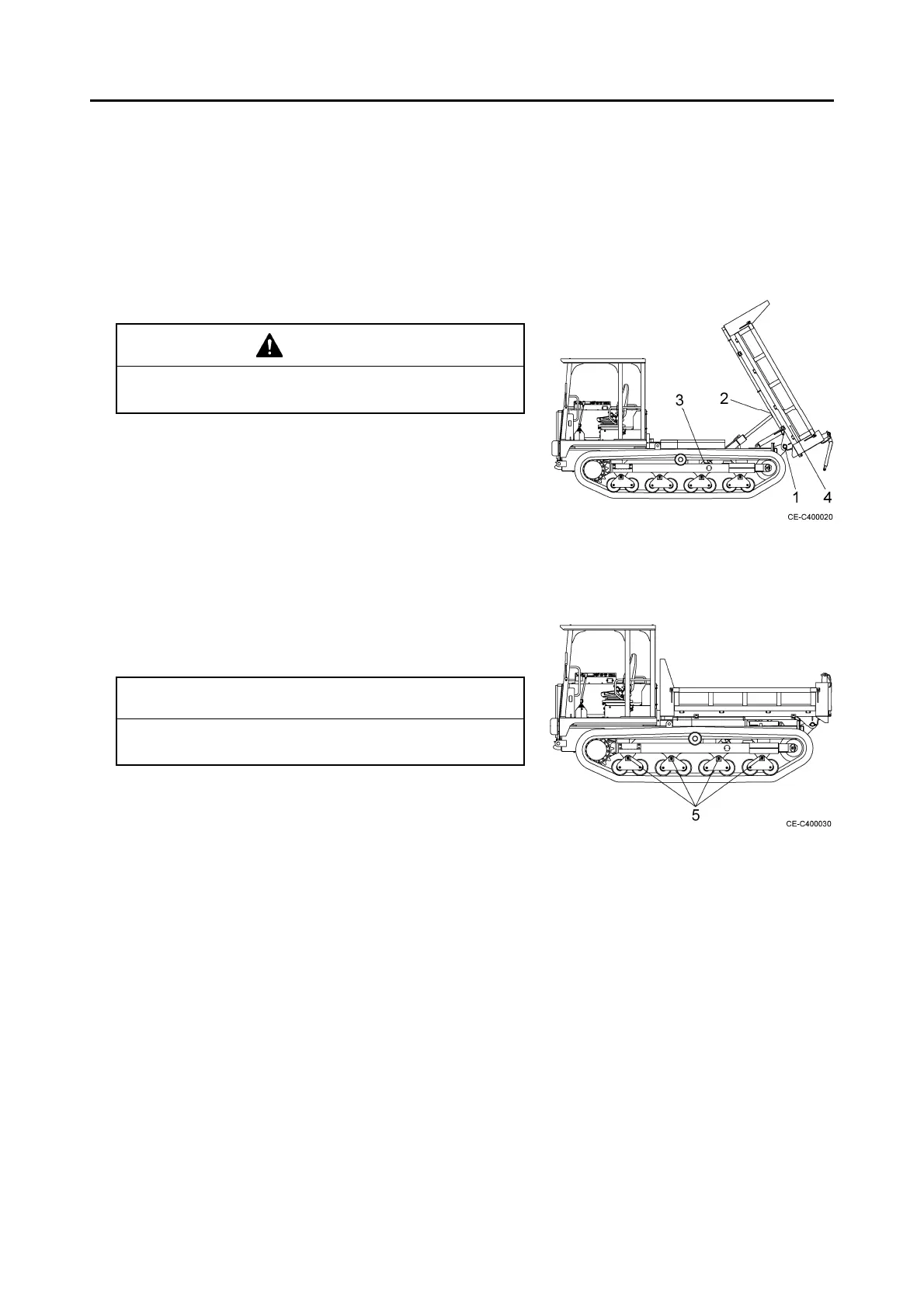

• Body joint pins (1) 2 positions
• Dump cylinder rod pins (2) 2 positions
• Dump cylinder foot pins (3) 2 positions
• Control springs of the body rear gate (4) 2 positions
Oscillating link
• Oscillating link pins (5) 8 positions
NOTICE
Grease the link pins everyday before starting works
if the machine is used on damp grounds or in mud.
