UNO Synth PRO X
3 – Front Panel Interface
17
3.6 – Envelopes
There are three ADSR envelopes: the Filter Envelope, the Amp Envelope and the Envelope 3.
The Filter Envelope modulates the cutoff frequency of the two filters with the modulation amount set by the
Envelope Amount controls for each filter.
The Amp Envelope modulates the volume of the VCA by 100%.
The Envelope 3 hasn’t got a fixed routing, instead it can be set inside the modulation matrix.
All the envelopes can be used as sources to modulate other parts of the synth in the Modulation Matrix.

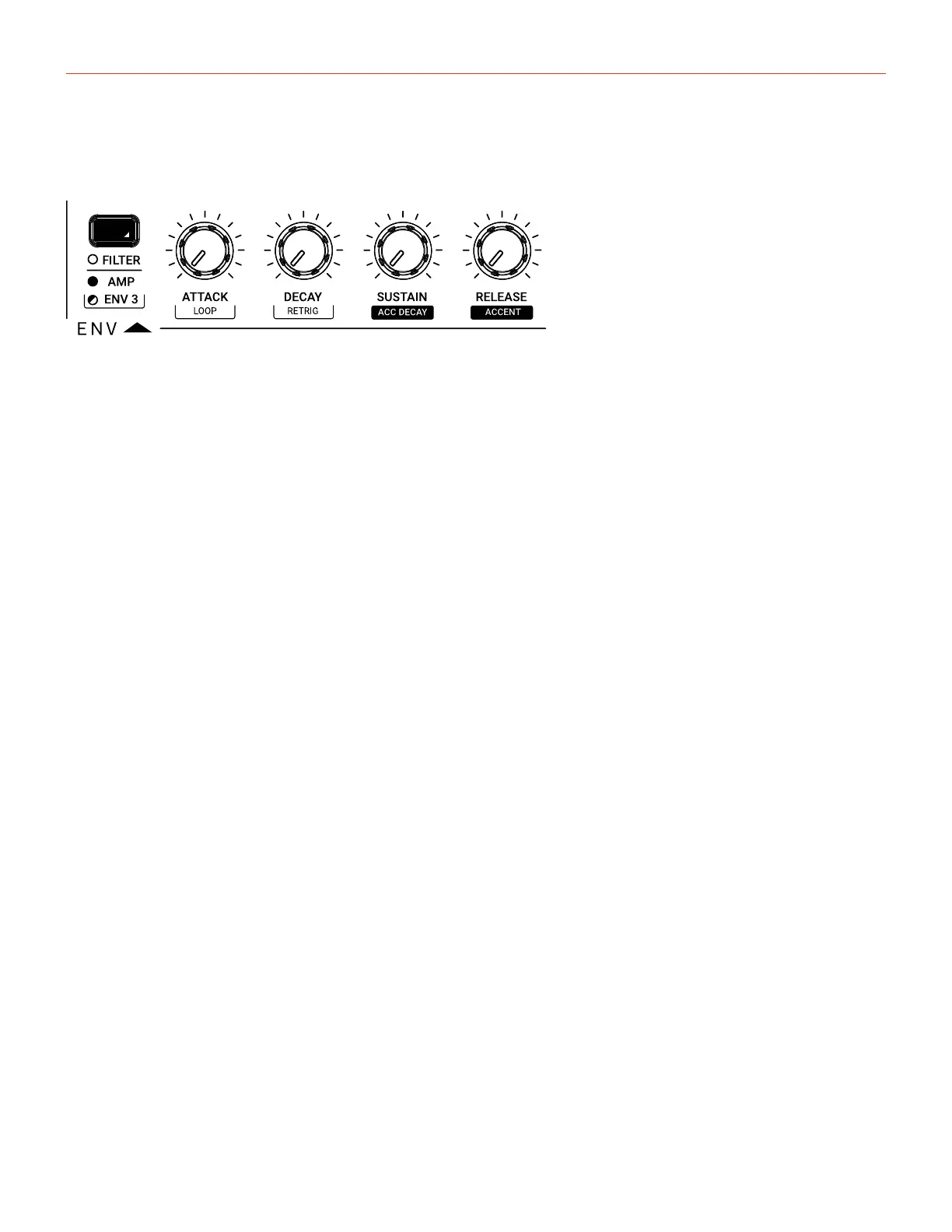

FILTER / AMP / ENV 3
This control toggle between the AMP and the FILTER envelopes. To select the ENV 3, use the SHIFT.
ATTACK
Sets the amount of time from 0 to its maximum. The range is from 0 to 30 sec.
DECAY
Sets the amount of time needed to go from peak to the specified sustain level.
The range is 0.1 ms to 30 sec.
SUSTAIN
Sets the level of the held note. Unlike A, D and R, Sustain is a level and not a time control. The range is from 0
to 127.
RELEASE
Sets the amount of time for the sustain level to 0. The range is 0.1 ms to 30 sec.
LOOP
Both envelopes have the ability to loop between Attack and Decay. When the control is set to ON, it goes back
to the attack stage after the end of the decay stage and repeats the envelope cycle until stopped.
