IMC C SERIES User Manual

© 2018 imc Test & Measurement GmbH
imc C-SERIES - Manual, Version 4 R 3 - 2018-10-19
163Miscellaneous

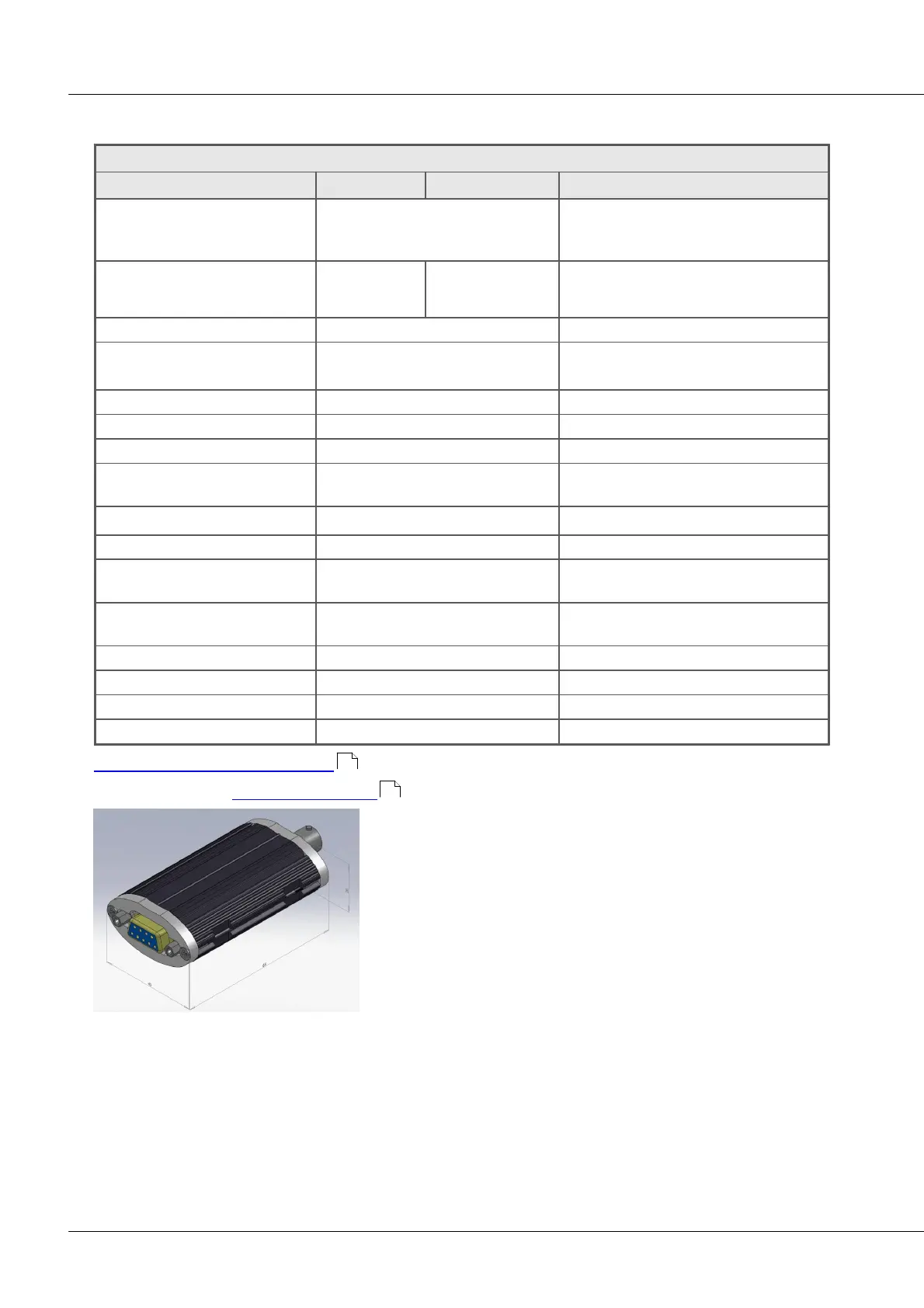

6.10.6 IRIG-B
General
Parameter
typ.
min. / max.
Remarks
Supported IRIG formats
B120..B127
Amplitude modulated (AM) signal
evaluation of BCD-Time-Of-Year and BCD-
Year
Input signal amplitude
max. 12 V
SS
Level for mark-period (high)
min. 0.8 V
SS
Level for space-period (low)
Input impedance
600 Ω
Terminal connection
DSUB-9 (female)
BNC
for connection with imc device
IRIG input
IRIG-input shielding connection
System ground
Output signal
RS232
Baud rate: 38400, no parity 8N1
Output data format
NMEA 0183
Delay of the 1 pps-signal
<2 µs
dedicated signal for system clock
synchronization of imc device
Jitter of the 1 pps-signal
±500 ns
Input signal: 12 V
SS
without jitter
Supply power consumption
5 V, 70 mA
via DSUB connector
Operating temperature range
(standard)
-40°C to +70°C
no condensation
Extended environmental range
(optional)
-40°C to +85°C
condensation temporarily allowed
Storage temperature
-40°C to 85°C
Dimensions
39 x 20 x 60
in mm, W x H x D
Weight
approx. 70 g
imc article number
1270059
external IRIG-B module
Find here the description of IRIG-B .
Is only available for devices of group 5, 6
80
27
