13 Removing and Installing the Lithium Ion
Battery

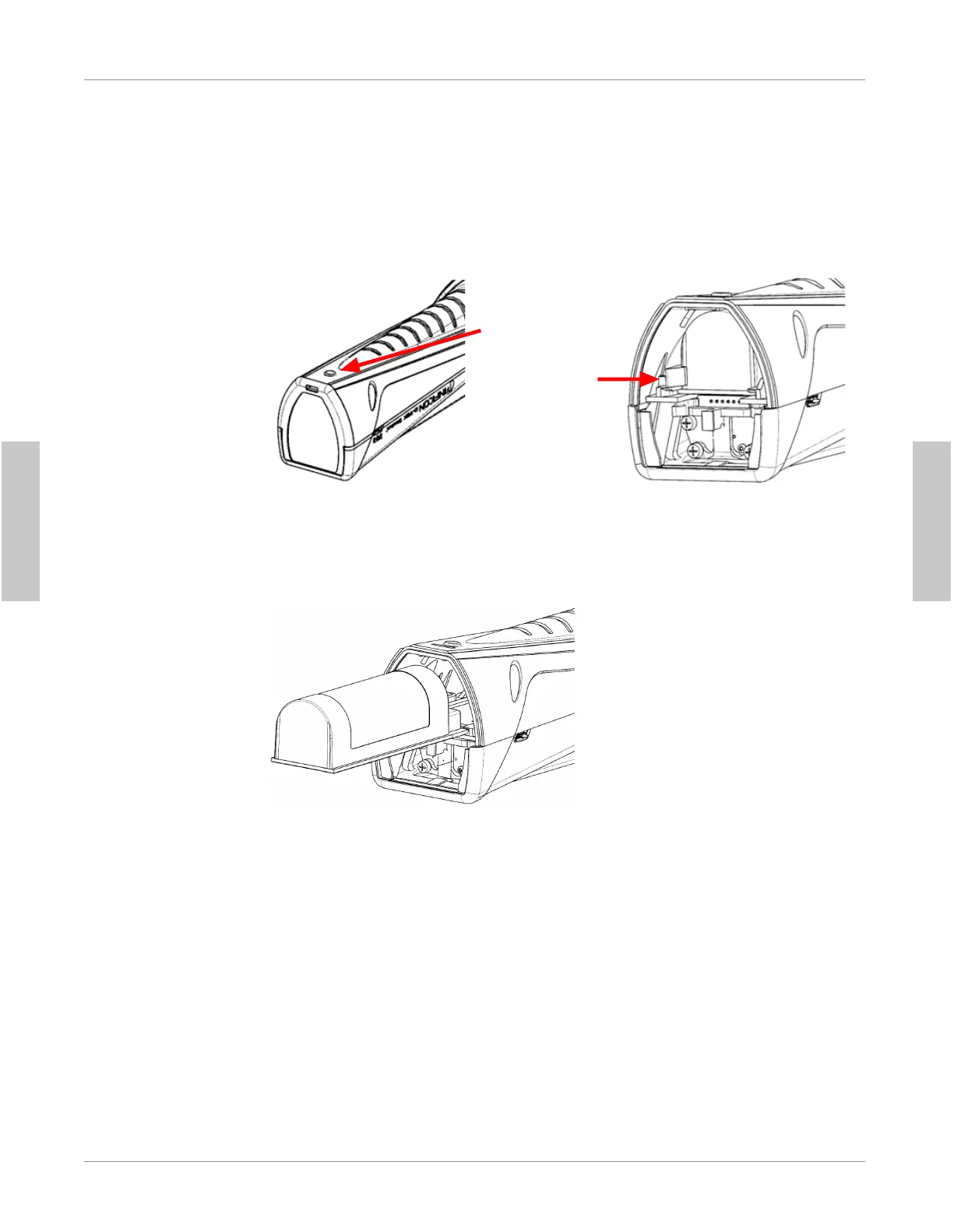

1.
Press the eject button on the back of D-TEK Stratus and remove the battery
door.
eject button
battery release tab
2.
Remove the battery by moving the battery release tab to the side until the
battery begins to eject. Slide the battery out.
3.
Re-insert the battery by first aligning the battery with the rails.
4.
Gently push the battery along the rails until the battery release tab engages.
ð Do not force the battery. If the battery does not slide freely, check the
alignment and try again.
5.
Reinstall the battery door.
