5.6 Program PSoC™ 6 MCU in JTAG Chain
1. Connect the host computer to a MiniProg4 or J-Link probe attached to several MCU targets in the JTAG
chain.

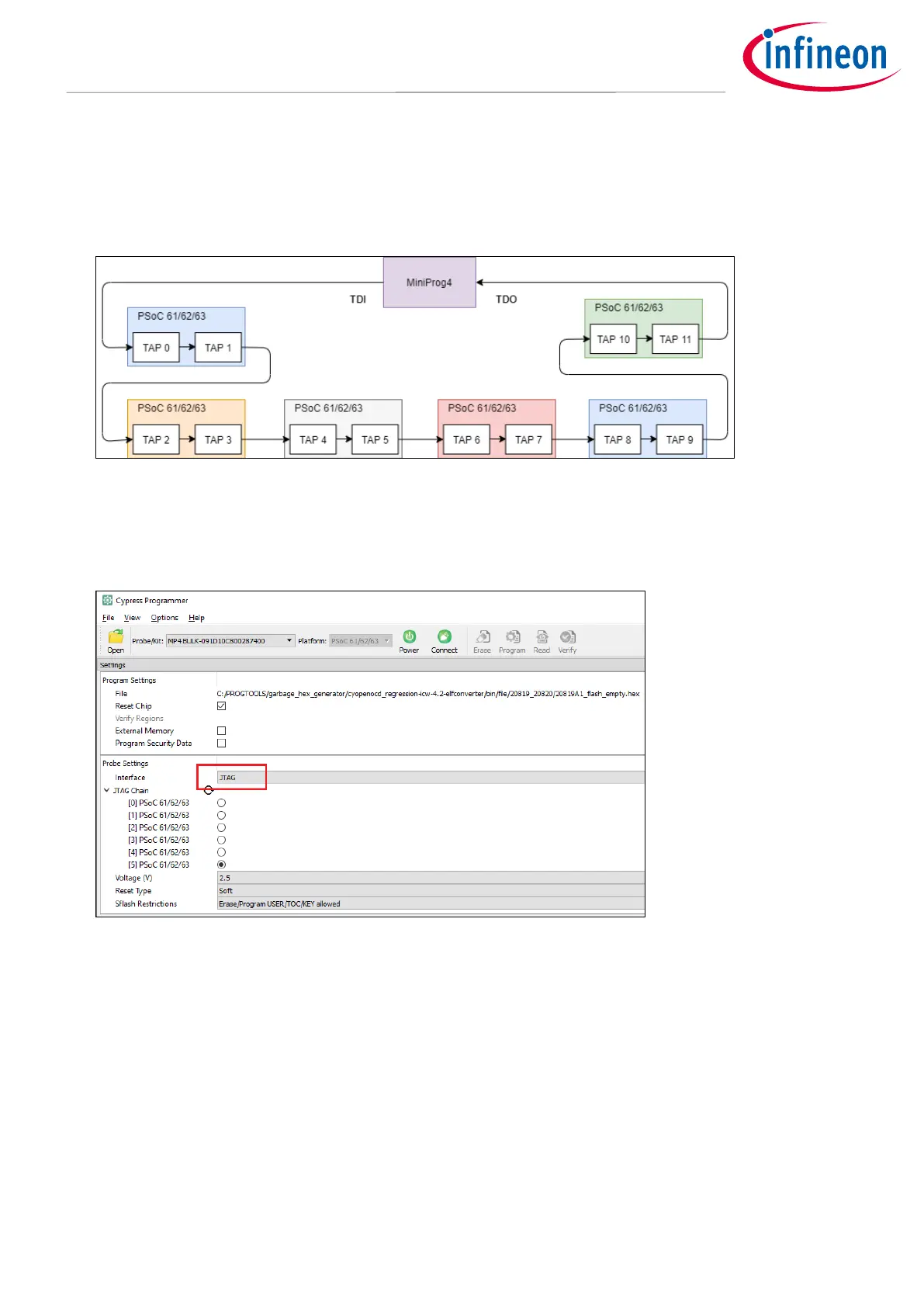

The following hardware configuration is used in this example:
The sample JTAG chain configuration contains six serially connected PSoC™ 6 MCU targets.
2. Select the MiniProg4 probe in the Probe/Kit drop-down and CYP will display information under Probe
Settings. Ensure the JTAG chain is powered.
3. Select the JTAG interface in the Interface drop-down.
