calibrate the bad pixels.
➢ Repeat the above operations to continue selecting bad pixel, and the status bar at
the bottom of the screen will display the number of calibrated bad pixels.
➢ When the calibration is done, press and hold M (5) button to exit the bad pixel
correction.

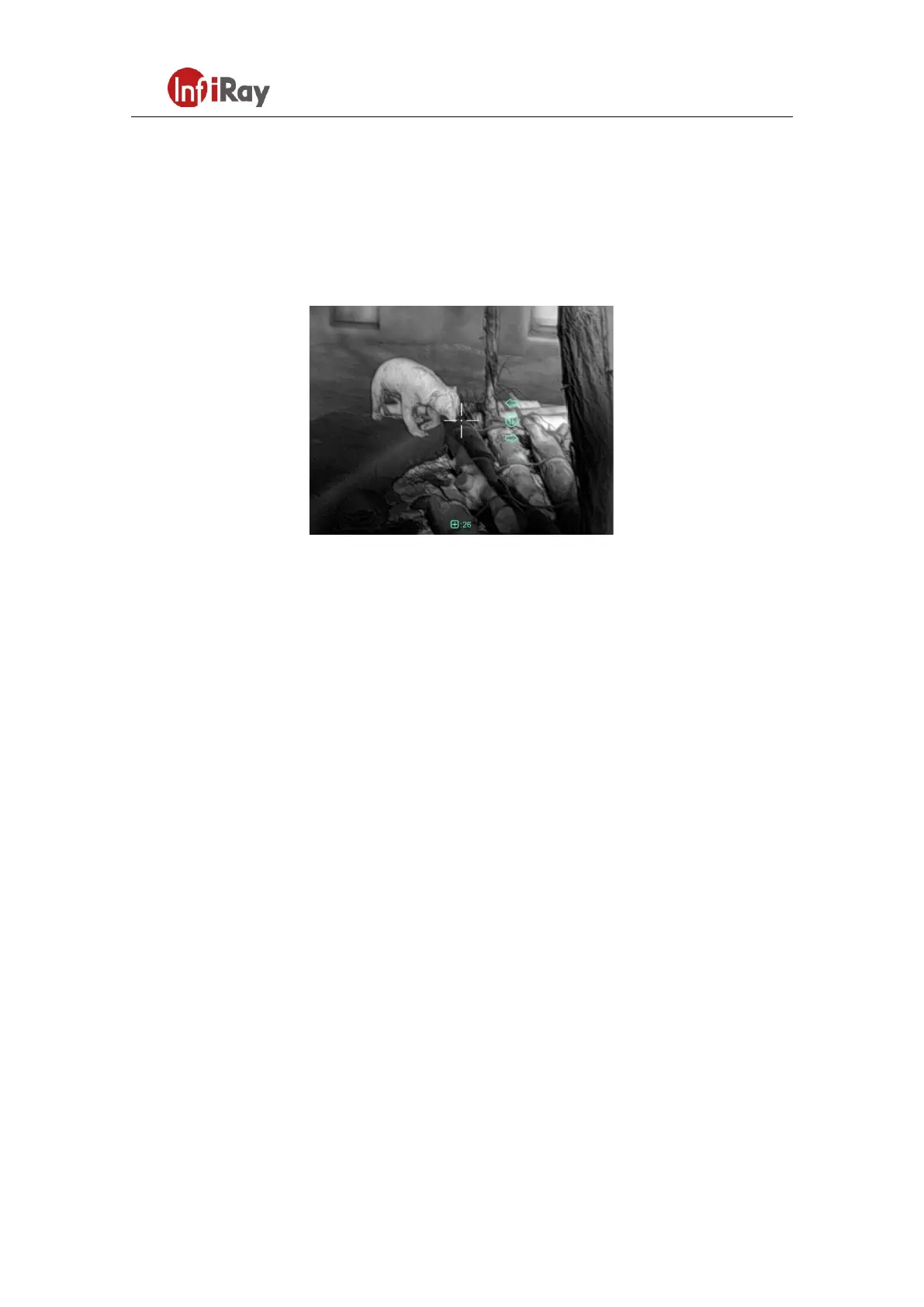

Fig. 6-5 Bad pixel correction interface
6.9 Compass Calibration
➢ In the home screen, press and hold the P (4) and C (6) button at the same time to
enter the compass calibration interface.
➢ An icon like a triaxial coordinate system appears on the screen (shown as fig. 6-6).
➢ Follow the icon prompt to rotate the riflescope along three axes at least 360 degrees
each axis in the 15 seconds.
➢ It will automatically exit and complete compass calibration after 15s.
➢ During the calibration process, press P (4) button briefly to exit the compass
calibration interface at any time.
