8. Preventative Maintenance
8.1 Battery Installation
➢ When the icon is appeared on the status bar, please replace with new batteries;
➢ It is necessary to power off before replacing the batteries.
➢ Turn the battery compartment knob (10) in a counterclockwise to open and
remove it.
➢ Install two CR123 batteries correctly according to electrode instructions on the label
inside the battery compartment as shown in fig. 8-1.
➢ Replace the battery cover and press heavily until heard clicking sound and make
sure the cover is closed on both sides correctly.
➢ After installation, please set the battery type in the advanced menu for the first
starting up--choosing 3.7V or 3V (referring to the instructions of the section 6.5),
otherwise the battery level indication will be inaccurate and may be interrupted
during operation.
Note:
⚫ Disposable batteries are be suggested only. That is risky when using the
rechargeable batteries, due to inconsistent quality.
⚫ Please do not use batteries of different types or batteries with various charge levels.

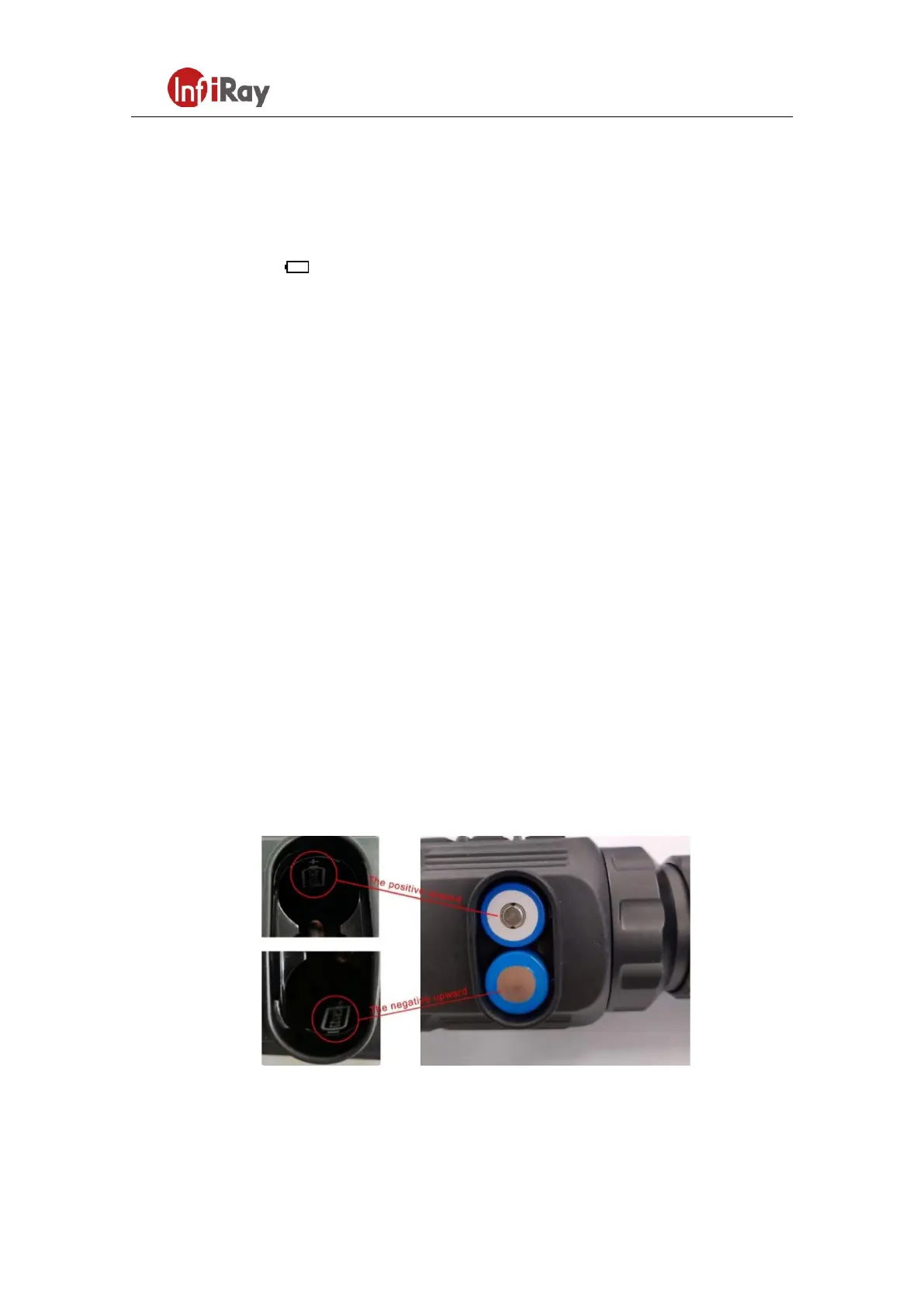

Fig. 8-1 Schematic diagram of battery installation
⚫ The Clip C series also supports the extended use of 16650 batteries with the
InfiRay’s extra battery accessory, to increase the working time of the product up to
To Next Page
