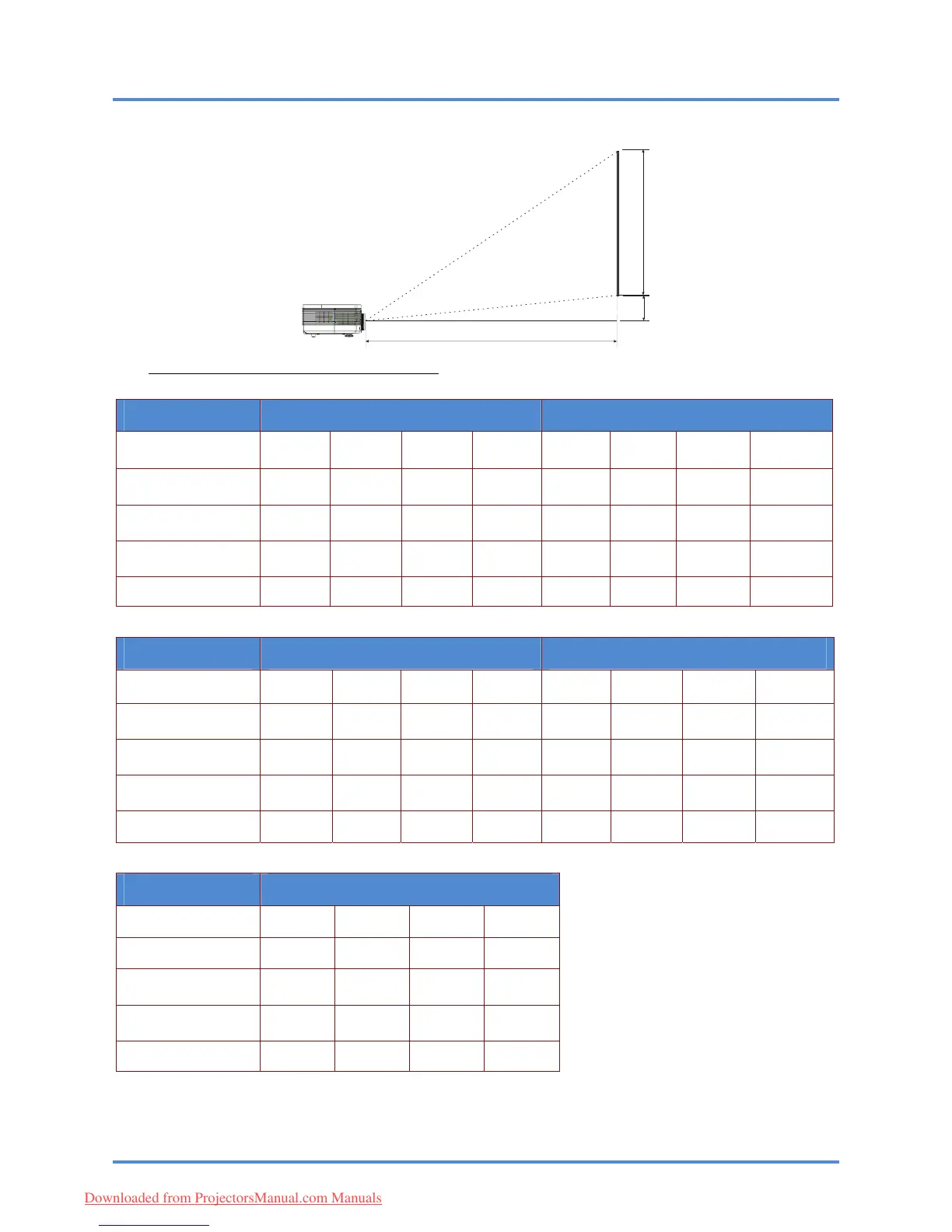

Projection Distance vs. Projection Size (WUXGA)
Projection Distance
A
Image Height
Projection Distance and Size Table
Standard projection lens: TR: 1.54–1.93; offset=5%
IN5318 TELE WIDE
Distance (m/inch)
1.66/65.5 3.33/130.9 4.16/163.7 8.31/327.3 1.66/65.3 3.32/130.6 6.63/261.2 9.95/391.8
Diagonal (inch/ft)
40/3.3 80/6.7 100/8.3 200/16.7 50/4.2 100/8.3 200/16.7 300/25
Image Height
(mm/inch)
538/21.2 1077/42.4 1346/53 2692/106 673/26.5 1346/53 2692/106 4039/159
Image Width
(mm/inch)
862/33.9 1723/67.8 2154/84.8 4308/169.6 1077/42.4 2154/84.8 4308/169.6 6462/254.4
A (Offset -mm/inch)
27/1.1 54/2.1 67/2.6 135/5.3 34/1.3 67/2.6 135/5.3 202/7.9
Long throw projection lens: TR: 1.93 – 2.9; offset=5%
IN5318 TELE WIDE
Distance (m/inch)
2.08/81.8 6.24/245.5 12.47/491 18.71/736.5
2.5/98.4 6.25/245.9 12.49/491.8 18.74/737.8
Diagonal
(inch/ft)
40/3.3 100/8.3 200/16.7 300/25 50/4.2 150/12.5 300/25 450/37.5
Image Height
(mm/inch)
538/21.2 1346/53 2692/106 4039/159 673/26.5 2019/79.5 4039/159 6058/238.5
Image Width
(mm/inch)
862/33.9 2154/84.8 4308/169.6 6462/254.4 1077/42.4 3231/127.2 6462/254.4 9693/381.6
A (Offset -mm/inch)
27/1.1 67/2.6 135/5.3 202/7.9 34/1.3 101/4 202/7.9 303/11.9
Short throw projection lens: TR: 0.77; offset=5%
IN5318 FIX
Distance (m/inch)
0.66/26.1 1.33/52.2 1.66/65.3 2.49/97.9
Diagonal (inch/ft)
40/3.3 80/6.7 100/8.3 150/12.5
Image Height
(mm/inch)
538/21.2 1077/42.4 1346/53 2019/79.5
Image Width
(mm/inch)
862/33.9 1723/67.8 2154/84.8 3231/127.2
A (Offset -mm/inch)
27/1.1 54/2.1 67/2.6 101/4
