Appendix

104

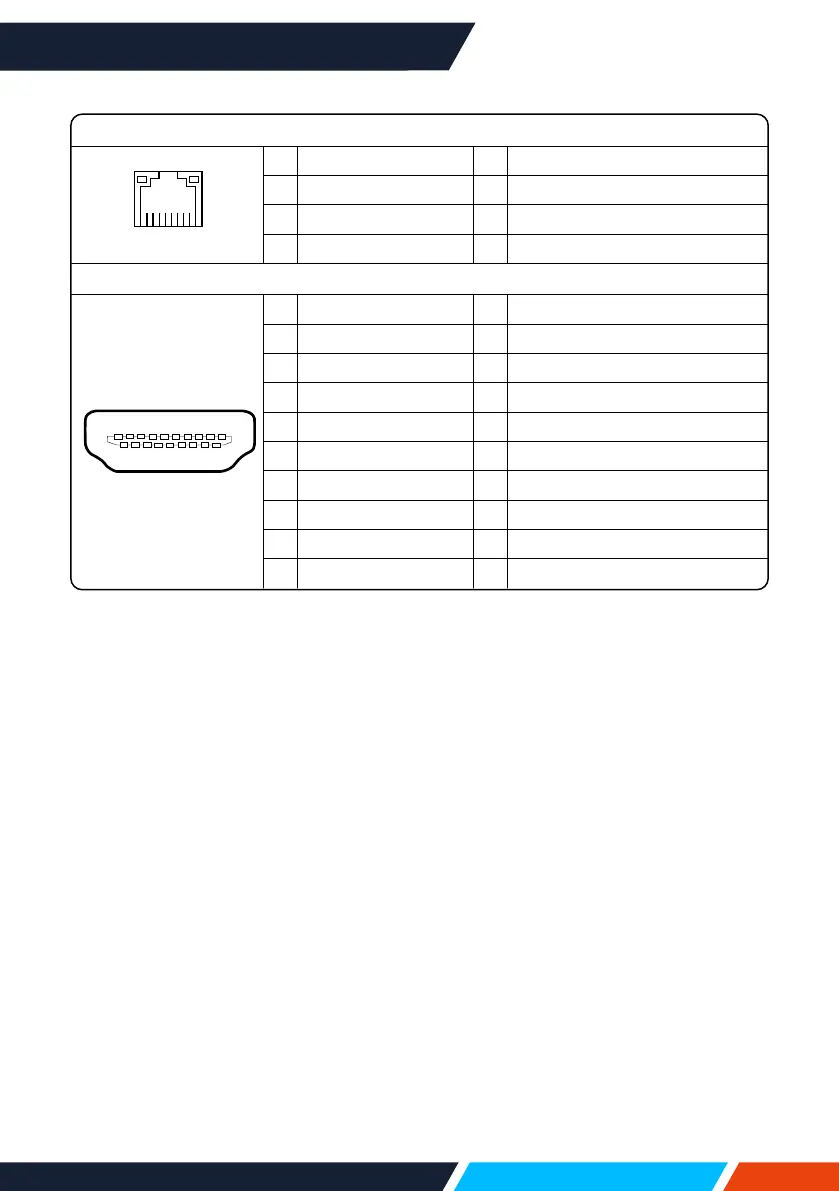

LANTerminal

8 7 6 5 43 2 1

1 TX+ 5 -----

2 TX- 6 RX-

3 RX+ 7 -----

4 ----- 8 -----

HDMITerminal(HDMITypeA19)

246

9 7 5 3

1618

17 15 13 11

1 TMDSData2+ 11 TMDSClockShield

2 TMDSData2Shield 12 TMDSClock-

3 TMDSData2- 13 CEC

4 TMDSData1+ 14 Reserved(N.C.ondevice)

5 TMDSData1Shield 15 SCL

6 TMDSData1- 16 SDA

7 TMDSData0+ 17 DDC/CECGround

8 TMDSData0Shield 18 +5VPower

9 TMDSData0- 19 HotPlugDetect

10 TMDSClock+
