“ ”showsinputsignalsourcesupportthis
format.
“—”showsinputsignalsourcedonotsupport.
No OSDDisplay
Source Specication
RGB HDMI Video Resolution
Pixelclock
(MHz)
H-freq
(KHz)
V-freq
(Hz)
53 1600x1200,60Hz
—
1600x1200 162.000 75.000 60.000
54 1680x1050,60Hz
— 1680x1050 146.250 65.290 59.954
55 1920x1080,60Hz
— 1920x1080 138.500 66.587 59.934
56 1920x1200,60Hz
— 1920x1200 154.000 74.038 59.950
57 3840x2160,30Hz
—
—
3840x2160 297.000 67.500 30.000
Note
Changestothismanualmaybe
madewithoutnotice.

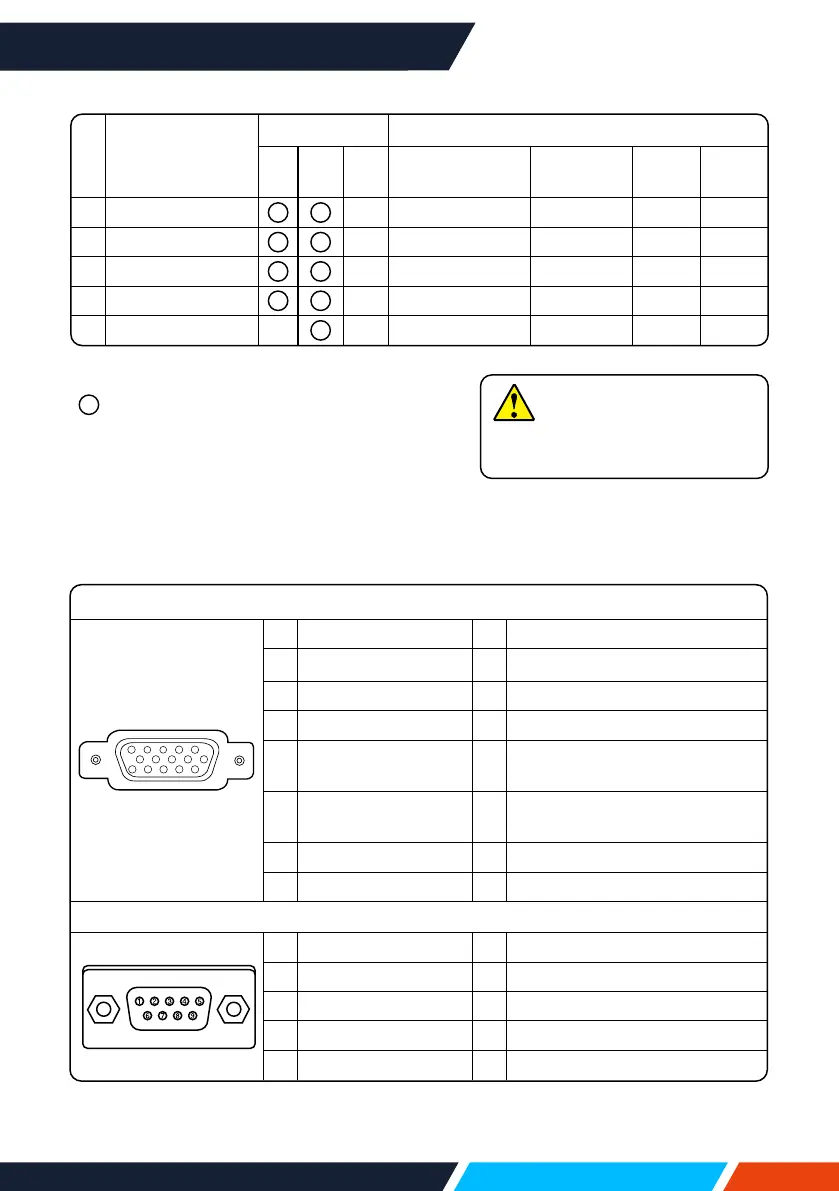

Terminal conguration
VGAIN/MONITOROUTTerminal(D-sub15)
5
1
2
34
10
9 678
15
14
13
1112
1 Red(Input,output) 9 -----
2 Green(Input,output) 10 Grounding(eldsynchronizing)
3 Blue(Input,output) 11 Grounding
4 ----- 12 DDCdata
5
Grounding
(linesynchronizing)
13
Horizontalsynchronizing
(compoundsync.)input/output
6 Grounding(red) 14
Verticalsynchronizing
input/output
7 Grounding(green) 15 DDCClock
8 Grounding(blue)
SERIALTerminal(D-SUB9)
1 ----- 6 -----
2 RXD 7 -----
3 TXD 8 -----
4 ----- 9 -----
5 GND
