Chapter 3 –Inputs-Outputs
Chapter 3 - Inputs-Outputs

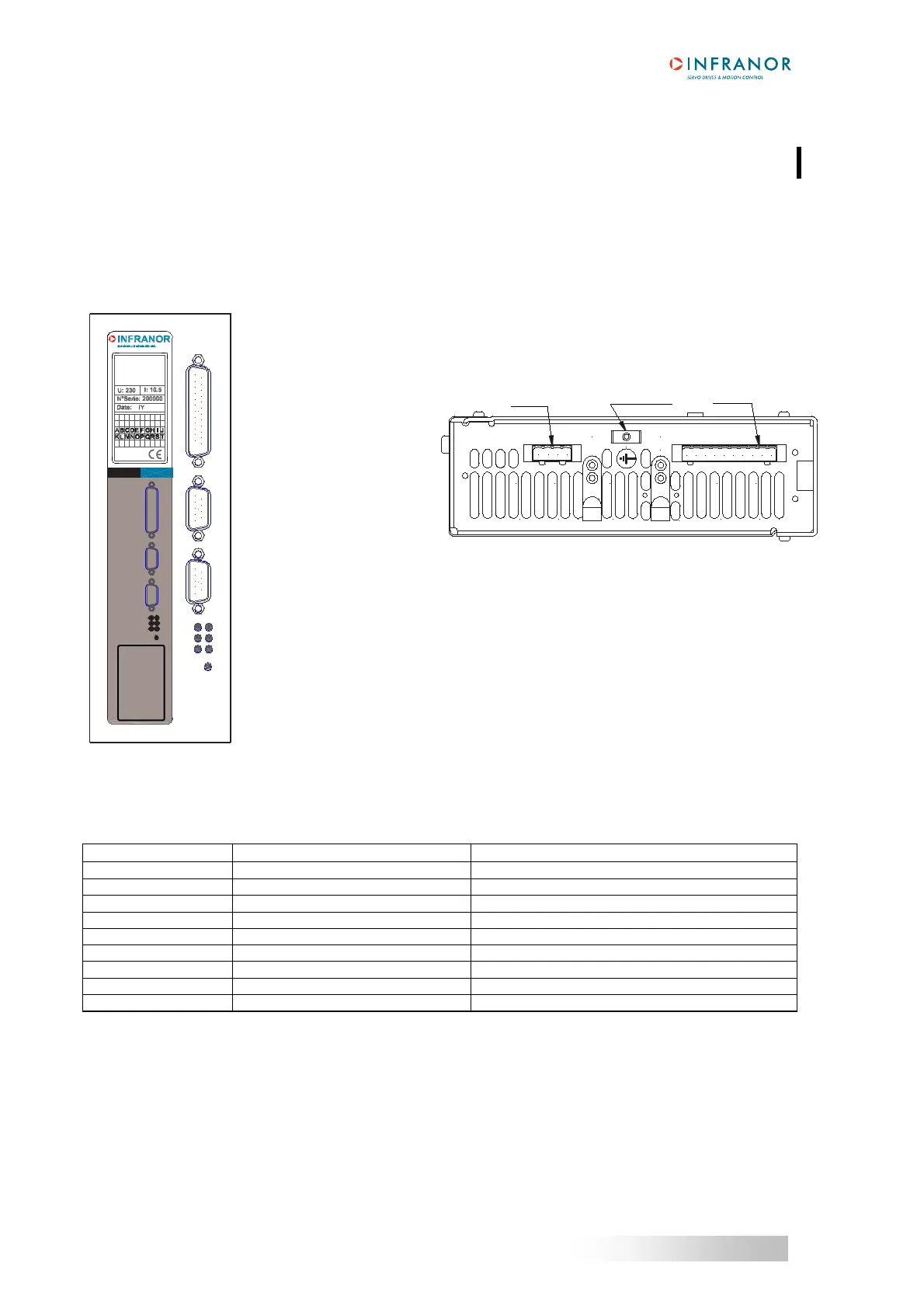

1 - CONNECTORS LOCATION
1.1 - AMPLIFIER CONNECTORS
CD1-a
X2
X1
X5
ERROR
DISPLAY
X8
X9
X2 Command connector
X1 Resolver connector
X5 Serial link connector
GND
X8 24 Vdc connector
X9 Power connector
2 - X1: RESOLVER CONNECTOR
Sub D 9 pins female (male connector is not supplied)
PIN FUNCTION REMARKS
1 TC (pin H sensor connector) If thermal switch connected to X1
6 Shield connection If no "360°" connection on the connector
2 TC (pin I sensor connector) If thermal switch connected to X1
7 S1 (pin C sensor connector) MAVILOR motor
3 S3 (pin D sensor connector) MAVILOR motor
8 S4 (pin B sensor connector) MAVILOR motor
4 S2 (pin A sensor connector) MAVILOR motor
9 R2 (pin F sensor connector) MAVILOR motor
5 R1 (pin E sensor connector) MAVILOR motor
For other resolver connections, see chapter 8 (Appendix), section 2.
