26
CD1-a
Chapter 4 – Connections

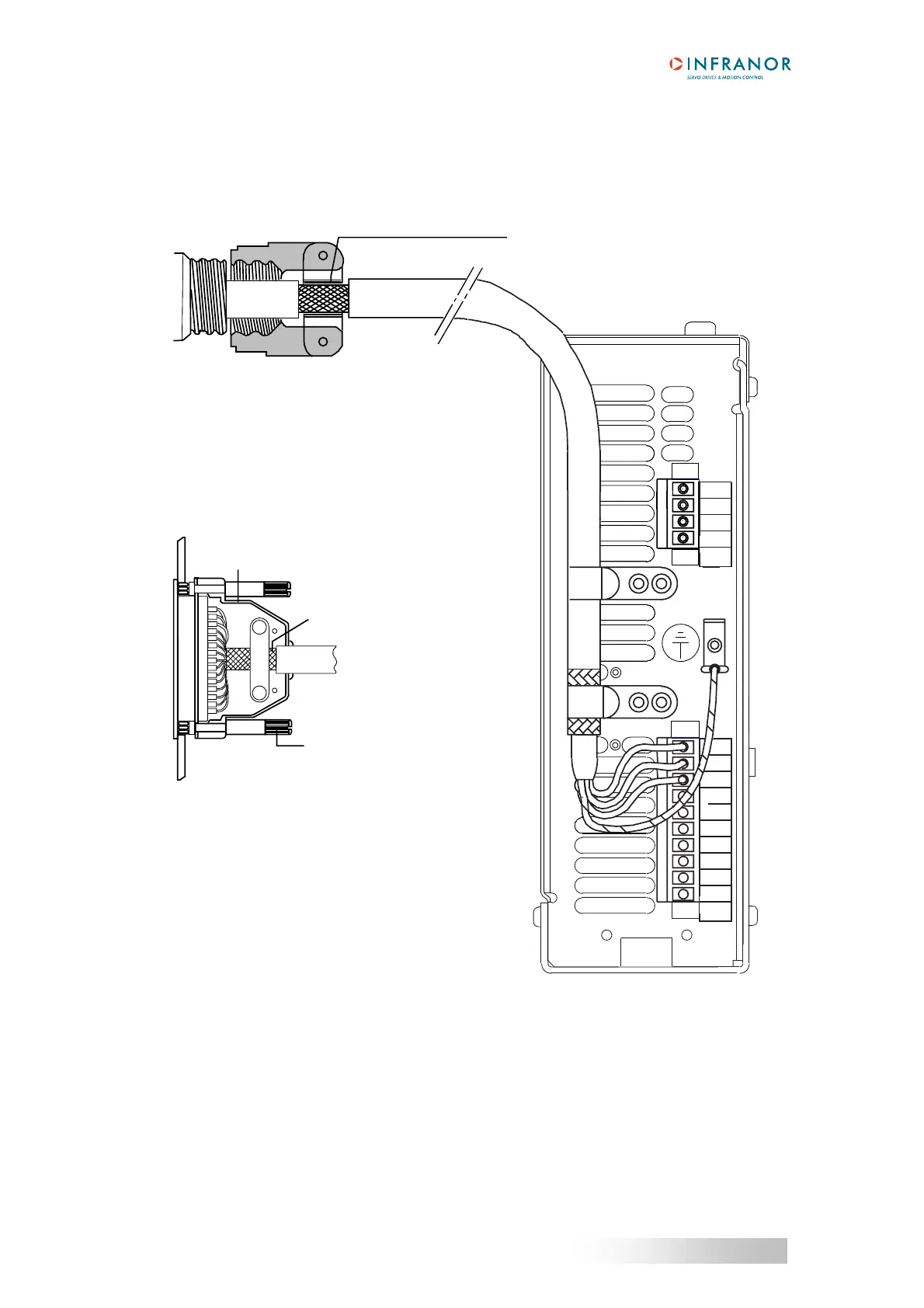

2.2 - CONNECTORS SHIELD CONNECTION
RULE
The shield should never be interrupted or corrupted over the whole cable length.
X
X
X8
24V
0V
U
V
W
NC
L3
L2
L1
NC
RB
RB
X9
Self-sticking copper ribbon if necessary,
for increasing the shield diameter in order
to get it correctly tightened
under the clamp
Motor connector for
resolver and motor
Metallic or metal plated plastic
SUB-D pin package
360° shield ensured by
the tightening clamp
The fastening screws must
be tightened in order to ensure
the shield continuity on the
amplifier housing
INFRANOR
amplifier
SUB-D connector
NOTE
In order to improve the contact and to avoid the cable shield
corruption, use the self-sticking copper ribbon of 3 M "Electrical
Specialities Division", ref. 1739-7.
NOTE
When the 360° shield connection is made by means of a collar, it is not necessary to connect a cable on the
appropriate pin of the SUB-D connector.
