Ingenico iWL2 Series - Fasten Your Base on Desk

5.1.3. Fastenyourbaseondesk
Itispossibletofastenbaseondeskthankstobuttonholeslocatedonbasebottomcasing.

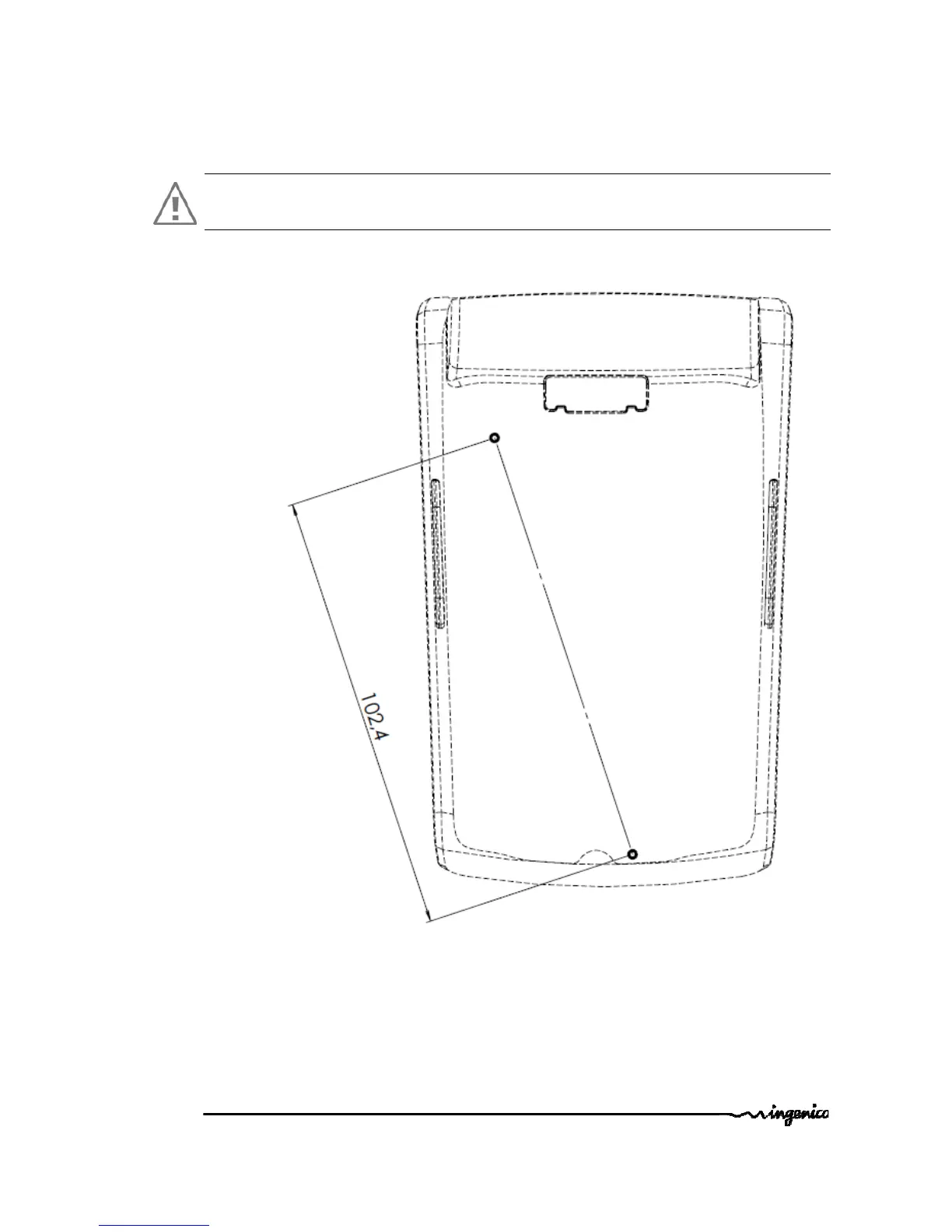

Usespatternbesidetobestlocatescrewsposition:

WARNING
locatescrewsposition:

WARNING
Base must be set in horizontal position to insure terminal link work properly. This remains true when
buttonholesareused.Useswalldockingstationaccessorytofastenbaseinnonhorizontalposition.
































